Describes irregular outer diameter profile relief found during cnc machining turning design analysis. More...

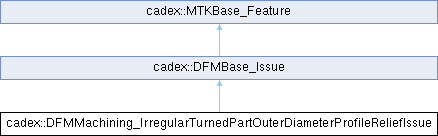

Inheritance diagram for cadex::DFMMachining_IrregularTurnedPartOuterDiameterProfileReliefIssue:

Public Member Functions
	DFMMachining_IrregularTurnedPartOuterDiameterProfileReliefIssue ()
	Constructor.

double	ExpectedMaxFaceInclineAngle () const
	Returns the expected maximum face incline angle in radians .

void	SetExpectedMaxFaceInclineAngle (double theAngle)
	Sets expected maximum face incline angle in radians .

double	ActualFaceInclineAngle () const
	Returns the actual face incline angle in radians .

void	SetActualFaceInclineAngle (double theAngle)
	Sets actual face incline angle in radians .

const ModelData::Face &	Face () const
	Returns the issue face.

void	SetFace (const ModelData::Face &theFace)
	Sets issue face.

Public Member Functions inherited from cadex::MTKBase_Feature
	MTKBase_Feature ()
	Constructor.

	~MTKBase_Feature ()
	Destructor.

void	Nullify ()
	Resets reference to implementation object.

bool	IsNull () const
	Returns true if the object is nullified.

	operator bool () const
	Casts the object to the bool type.

template<typename T >
bool	IsOfType () const

ImplType *	Impl () const

template<typename T >
T *	Impl () const
	Reserved for internal use.

bool	operator== (const MTKBase_Feature &theObject) const

bool	operator!= (const MTKBase_Feature &theObject) const

Static Public Member Functions
static bool	CompareType (const MTKBase_Feature &theFeature)
	Returns true if theFeature is a DFM irregular outer diameter profile relief issue.

Static Public Member Functions inherited from cadex::DFMBase_Issue
static bool	CompareType (const MTKBase_Feature &theFeature)
	Returnstrue if theFeature is a DFM issue.

Additional Inherited Members
Public Types inherited from cadex::DFMBase_Issue
typedef cadex::internal::DFMBaseImpl_Issue	ImplType

typedef std::shared_ptr< ImplType >	ImplPtrType

Public Types inherited from cadex::MTKBase_Feature
typedef cadex::internal::MTKBaseImpl_Feature	ImplType

typedef std::shared_ptr< ImplType >	ImplPtrType

Protected Member Functions inherited from cadex::DFMBase_Issue
	DFMBase_Issue (ImplPtrType theImpl)
	Reserved for internal use.

Protected Member Functions inherited from cadex::MTKBase_Feature
	MTKBase_Feature (ImplPtrType theImpl)
	Reserved for internal use.

Protected Attributes inherited from cadex::MTKBase_Feature
ImplPtrType	myImpl

Detailed Description

Describes irregular outer diameter profile relief found during cnc machining turning design analysis.

The issue refers to a part with a non-uniform outer diameter that has a relief or indentation in certain areas. This means that the surface of the part does not have a smooth or uniform contour, and there may be inconsistencies or deviations in the diameter. This can lead to problems in later stages of using the part, as it may not fit properly with other components or may cause friction or wear.

Contains face of turned part that fails the following condition:

\[ \large ANG_f \leq ang_m \]

\[ \begin{aligned} & \small ANG_f - \text{actual face incline angle} \\ & \small ang_m - \text{expected maximum face incline angle} \end{aligned} \]

See also: DFMMachining_Analyzer, DFMMachining_TurningAnalyzerParameters.MaxFaceInclineAngle()

Examples: machining/dfm_analyzer/Program.cs, and machining/dfm_analyzer/main.cxx.

Constructor & Destructor Documentation

◆ DFMMachining_IrregularTurnedPartOuterDiameterProfileReliefIssue()

cadex::DFMMachining_IrregularTurnedPartOuterDiameterProfileReliefIssue::DFMMachining_IrregularTurnedPartOuterDiameterProfileReliefIssue ( )

Constructor.

Member Function Documentation

◆ ActualFaceInclineAngle()

double cadex::DFMMachining_IrregularTurnedPartOuterDiameterProfileReliefIssue::ActualFaceInclineAngle ( ) const

Returns the actual face incline angle in radians .

See also: SetActualFaceInclineAngle()

Examples: machining/dfm_analyzer/Program.cs.

◆ CompareType()

bool cadex::DFMMachining_IrregularTurnedPartOuterDiameterProfileReliefIssue::CompareType ( const MTKBase_Feature & theFeature )

static

Returns true if theFeature is a DFM irregular outer diameter profile relief issue.

Examples: machining/dfm_analyzer/Program.cs.

◆ ExpectedMaxFaceInclineAngle()

double cadex::DFMMachining_IrregularTurnedPartOuterDiameterProfileReliefIssue::ExpectedMaxFaceInclineAngle ( ) const

Returns the expected maximum face incline angle in radians .

See also: SetExpectedMaxFaceInclineAngle(), DFMMachining_TurningAnalyzerParameters.MaxFaceInclineAngle()

Examples: machining/dfm_analyzer/Program.cs.

◆ Face()

const ModelData::Face & cadex::DFMMachining_IrregularTurnedPartOuterDiameterProfileReliefIssue::Face ( ) const

Returns the issue face.

See also: SetFace()

◆ SetActualFaceInclineAngle()

void cadex::DFMMachining_IrregularTurnedPartOuterDiameterProfileReliefIssue::SetActualFaceInclineAngle ( double theAngle )

Sets actual face incline angle in radians .

The value must be more or equal to zero.

See also: ActualFaceInclineAngle()

◆ SetExpectedMaxFaceInclineAngle()

void cadex::DFMMachining_IrregularTurnedPartOuterDiameterProfileReliefIssue::SetExpectedMaxFaceInclineAngle ( double theAngle )

Sets expected maximum face incline angle in radians .

The value must be less than ActualFaceInclineAngle().

See also: ExpectedMaxFaceInclineAngle()

◆ SetFace()

void cadex::DFMMachining_IrregularTurnedPartOuterDiameterProfileReliefIssue::SetFace ( const ModelData::Face & theFace )

Sets issue face.

See also: Face()
