Described the Narrow Pocket maximum to minimum sizes ratio issue found during cnc machining milling design analysis. More...

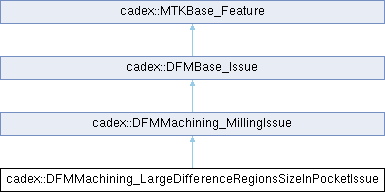

Inheritance diagram for cadex::DFMMachining_LargeDifferenceRegionsSizeInPocketIssue:

Public Member Functions
	DFMMachining_LargeDifferenceRegionsSizeInPocketIssue ()
	Constructor.

double	ExpectedMaxRegionsMaxToMinSizeRatio () const
	Returns the expected maximum to minimum size ratio.

void	SetExpectedMaxRegionsMaxToMinSizeRatio (double theRatio)
	Set expected maximum to minimum size ratio.Values should be greater 0.

double	ActualMaxDistance () const
	Returns the actual maximum distance between features in a pocket.

void	SetActualMaxRegionSize (double theMaxValue)
	Set actual maximum region size.Value should be greater 0.

double	ActualMinDistance () const
	Returns the actual minimum distance between features in a pocket.

void	SetActualMinRegionSize (double theMinValue)
	Set actual minimum region size.Value should be greater 0.

double	ActualMaxRegionsMaxToMinSizeRatio () const
	Returns the actual maximum to minimum size ratio.

const Machining_Pocket &	Pocket () const
	Returns pocket, that contains features with an issue.

void	SetPocket (const Machining_Pocket &thePocket)
	Set pocket, that contains features with an issue.

const ModelData::Shell &	MaxRegionPocketSidewall () const
	Returns shell with max region size to compared inner feature.

void	SetMaxRegionPocketSidewall (const ModelData::Shell &theMaxRegionPocketSidewall)
	Set shell with the highest theMaxRegionPocketSidewall size to the inner feature.

const ModelData::Shell &	MinRegionPocketSidewall () const
	Returns shell with min region size to compared inner feature.

void	SetMinRegionPocketSidewall (const ModelData::Shell &theMinRegionPocketSidewall)
	Set shell with the lowest theMinRegionPocketSidewall size to the inner feature.

const ModelData::Shell &	InnerFeature () const
	Returns an inner feature shell.

void	SetInnerFeature (const ModelData::Shell &theInnerFeature)
	Set shell of an inner feature.

Public Member Functions inherited from cadex::MTKBase_Feature
	MTKBase_Feature ()
	Constructor.

	~MTKBase_Feature ()
	Destructor.

void	Nullify ()
	Resets reference to implementation object.

bool	IsNull () const
	Returns true if the object is nullified.

	operator bool () const
	Casts the object to the bool type.

template<typename T >
bool	IsOfType () const

ImplType *	Impl () const

template<typename T >
T *	Impl () const
	Reserved for internal use.

bool	operator== (const MTKBase_Feature &theObject) const

bool	operator!= (const MTKBase_Feature &theObject) const

Static Public Member Functions
static bool	CompareType (const MTKBase_Feature &theFeature)
	Returns true if theFeature is a DFM large difference regions size in pocket issue.

Static Public Member Functions inherited from cadex::DFMMachining_MillingIssue
static bool	CompareType (const MTKBase_Feature &theFeature)
	Returns true if theIssue is a DFM machining milling issue.

Static Public Member Functions inherited from cadex::DFMBase_Issue
static bool	CompareType (const MTKBase_Feature &theFeature)
	Returnstrue if theFeature is a DFM issue.

Additional Inherited Members
Public Types inherited from cadex::DFMMachining_MillingIssue
typedef cadex::internal::DFMMachiningImpl_MillingIssue	ImplType

typedef std::shared_ptr< ImplType >	ImplPtrType

Public Types inherited from cadex::DFMBase_Issue
typedef cadex::internal::DFMBaseImpl_Issue	ImplType

typedef std::shared_ptr< ImplType >	ImplPtrType

Public Types inherited from cadex::MTKBase_Feature
typedef cadex::internal::MTKBaseImpl_Feature	ImplType

typedef std::shared_ptr< ImplType >	ImplPtrType

Protected Member Functions inherited from cadex::DFMMachining_MillingIssue
	DFMMachining_MillingIssue (ImplPtrType theImpl)
	Reserved for internal use.

Protected Member Functions inherited from cadex::DFMBase_Issue
	DFMBase_Issue (ImplPtrType theImpl)
	Reserved for internal use.

Protected Member Functions inherited from cadex::MTKBase_Feature
	MTKBase_Feature (ImplPtrType theImpl)
	Reserved for internal use.

Protected Attributes inherited from cadex::MTKBase_Feature
ImplPtrType	myImpl

Detailed Description

Described the Narrow Pocket maximum to minimum sizes ratio issue found during cnc machining milling design analysis.

A large difference in region size in a pocket CNC machining milling design can impact the machining process in terms of the required tool selection, appropriate cutting parameters, required material removal, and tool path optimization.

Contains ratio that fails the following condition:

\[ \large R_p > R_m \]

\[ \begin{aligned} & \small R_p - \text{actual ratio of maximum to minimum sizes} \\ & \small R_m - \text{expected maximum ratio of maximum to minimum sizes} \\ \end{aligned} \]

See also: DFMMachining_Analyzer, DFMMachining_MillingAnalyzerParameters.MaxRegionsMaxToMinSizeRatio()

Examples: machining/dfm_analyzer/Program.cs, and machining/dfm_analyzer/main.cxx.

Constructor & Destructor Documentation

◆ DFMMachining_LargeDifferenceRegionsSizeInPocketIssue()

cadex::DFMMachining_LargeDifferenceRegionsSizeInPocketIssue::DFMMachining_LargeDifferenceRegionsSizeInPocketIssue ( )

Constructor.

Member Function Documentation

◆ ActualMaxDistance()

double cadex::DFMMachining_LargeDifferenceRegionsSizeInPocketIssue::ActualMaxDistance ( ) const

Returns the actual maximum distance between features in a pocket.

See also: SetActualMaxRegionSize()

◆ ActualMaxRegionsMaxToMinSizeRatio()

double cadex::DFMMachining_LargeDifferenceRegionsSizeInPocketIssue::ActualMaxRegionsMaxToMinSizeRatio ( ) const

Returns the actual maximum to minimum size ratio.

See also: SetActualMaxRegionSize(), SetActualMinRegionSize()

Examples: machining/dfm_analyzer/Program.cs.

◆ ActualMinDistance()

double cadex::DFMMachining_LargeDifferenceRegionsSizeInPocketIssue::ActualMinDistance ( ) const

Returns the actual minimum distance between features in a pocket.

See also: SetActualMinRegionSize()

◆ CompareType()

bool cadex::DFMMachining_LargeDifferenceRegionsSizeInPocketIssue::CompareType ( const MTKBase_Feature & theFeature )

static

Returns true if theFeature is a DFM large difference regions size in pocket issue.

Examples: machining/dfm_analyzer/Program.cs.

◆ ExpectedMaxRegionsMaxToMinSizeRatio()

double cadex::DFMMachining_LargeDifferenceRegionsSizeInPocketIssue::ExpectedMaxRegionsMaxToMinSizeRatio ( ) const

Returns the expected maximum to minimum size ratio.

See also: SetExpectedMaxRegionsMaxToMinSizeRatio()

Examples: machining/dfm_analyzer/Program.cs.

◆ InnerFeature()

const ModelData::Shell & cadex::DFMMachining_LargeDifferenceRegionsSizeInPocketIssue::InnerFeature ( ) const

Returns an inner feature shell.

See also: SetInnerFeature()

◆ MaxRegionPocketSidewall()

const ModelData::Shell & cadex::DFMMachining_LargeDifferenceRegionsSizeInPocketIssue::MaxRegionPocketSidewall ( ) const

Returns shell with max region size to compared inner feature.

See also: SetMaxRegionPocketSidewall

◆ MinRegionPocketSidewall()

const ModelData::Shell & cadex::DFMMachining_LargeDifferenceRegionsSizeInPocketIssue::MinRegionPocketSidewall ( ) const

Returns shell with min region size to compared inner feature.

See also: SetMinRegionPocketSidewall()

◆ Pocket()

const Machining_Pocket & cadex::DFMMachining_LargeDifferenceRegionsSizeInPocketIssue::Pocket ( ) const

Returns pocket, that contains features with an issue.

See also: SetPocket()

◆ SetActualMaxRegionSize()

void cadex::DFMMachining_LargeDifferenceRegionsSizeInPocketIssue::SetActualMaxRegionSize ( double theMaxValue )

Set actual maximum region size.Value should be greater 0.

See also: ActualMaxRegionSize()

◆ SetActualMinRegionSize()

void cadex::DFMMachining_LargeDifferenceRegionsSizeInPocketIssue::SetActualMinRegionSize ( double theMinValue )

Set actual minimum region size.Value should be greater 0.

See also: ActualMinDistance()

◆ SetExpectedMaxRegionsMaxToMinSizeRatio()

void cadex::DFMMachining_LargeDifferenceRegionsSizeInPocketIssue::SetExpectedMaxRegionsMaxToMinSizeRatio ( double theRatio )

Set expected maximum to minimum size ratio.Values should be greater 0.

See also: ExpectedMaxRegionsMaxToMinSizeRatio()

◆ SetInnerFeature()

void cadex::DFMMachining_LargeDifferenceRegionsSizeInPocketIssue::SetInnerFeature ( const ModelData::Shell & theInnerFeature )

Set shell of an inner feature.

See also: InnerFeature()

◆ SetMaxRegionPocketSidewall()

void cadex::DFMMachining_LargeDifferenceRegionsSizeInPocketIssue::SetMaxRegionPocketSidewall ( const ModelData::Shell & theMaxRegionPocketSidewall )

Set shell with the highest theMaxRegionPocketSidewall size to the inner feature.

See also: MaxRegionPocketSidewall()

◆ SetMinRegionPocketSidewall()

void cadex::DFMMachining_LargeDifferenceRegionsSizeInPocketIssue::SetMinRegionPocketSidewall ( const ModelData::Shell & theMinRegionPocketSidewall )

Set shell with the lowest theMinRegionPocketSidewall size to the inner feature.

See also: MinRegionPocketSidewall()

◆ SetPocket()

void cadex::DFMMachining_LargeDifferenceRegionsSizeInPocketIssue::SetPocket ( const Machining_Pocket & thePocket )

Set pocket, that contains features with an issue.

See also: Pocket()
