cadex::DFMMachining_NonStandardDrillPointAngleBlindHoleIssue Class Reference

Describes non standard drill point angle blind hole issues found during cnc machining drilling design analysis. More...

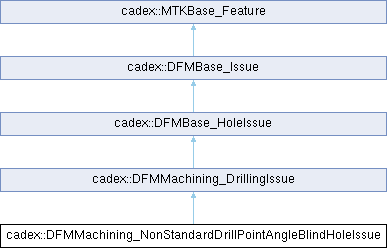

Inheritance diagram for cadex::DFMMachining_NonStandardDrillPointAngleBlindHoleIssue:

Public Member Functions
	DFMMachining_NonStandardDrillPointAngleBlindHoleIssue ()
	Constructor.
	DFMMachining_NonStandardDrillPointAngleBlindHoleIssue (const Machining_Hole &theHole)
	Constructor.
double	NearestStandardAngle () const
	Returns the nearest standard angle in radians .
void	SetNearestStandardAngle (double theAngle)
	Sets the nearest standard angle in radians .
double	ActualAngle () const
	Returns the actual angle in radians .
void	SetActualAngle (double theAngle)
	Sets the angle in radians .
Public Member Functions inherited from cadex::DFMMachining_DrillingIssue
Machining_Hole	MachiningHole () const
	Returns the problematic machining hole.
Public Member Functions inherited from cadex::DFMBase_HoleIssue
const MTKBase_Hole &	Hole () const
	Returns the problematic hole.
void	SetHole (const MTKBase_Hole &theHole)
	Sets the problematic hole.
Public Member Functions inherited from cadex::MTKBase_Feature
	MTKBase_Feature ()
	Constructor.
	~MTKBase_Feature ()
	Destructor.
void	Nullify ()
	Resets reference to implementation object.
bool	IsNull () const
	Returns true if the object is nullified.
	operator bool () const
	Casts the object to the bool type.
template<typename T >
bool	IsOfType () const
ImplType *	Impl () const
template<typename T >
T *	Impl () const
	Reserved for internal use.
bool	operator== (const MTKBase_Feature &theObject) const
bool	operator!= (const MTKBase_Feature &theObject) const

Static Public Member Functions
static bool	CompareType (const MTKBase_Feature &theFeature)
	Returns true if theFeature is a DFM machining non standard drill point angle blind hole issue.
Static Public Member Functions inherited from cadex::DFMMachining_DrillingIssue
static bool	CompareType (const MTKBase_Feature &theFeature)
	Returns true if theFeature is a DFM machining drilling issue.
Static Public Member Functions inherited from cadex::DFMBase_HoleIssue
static bool	CompareType (const MTKBase_Feature &theFeature)
	Returnstrue if theFeature is a DFM hole issue.
Static Public Member Functions inherited from cadex::DFMBase_Issue
static bool	CompareType (const MTKBase_Feature &theFeature)
	Returnstrue if theFeature is a DFM issue.

Additional Inherited Members
Public Types inherited from cadex::DFMMachining_DrillingIssue
typedef cadex::internal::DFMMachiningImpl_DrillingIssue	ImplType
typedef std::shared_ptr< ImplType >	ImplPtrType
Public Types inherited from cadex::DFMBase_HoleIssue
typedef cadex::internal::DFMBaseImpl_HoleIssue	ImplType
typedef std::shared_ptr< ImplType >	ImplPtrType
Public Types inherited from cadex::DFMBase_Issue
typedef cadex::internal::DFMBaseImpl_Issue	ImplType
typedef std::shared_ptr< ImplType >	ImplPtrType
Public Types inherited from cadex::MTKBase_Feature
typedef cadex::internal::MTKBaseImpl_Feature	ImplType
typedef std::shared_ptr< ImplType >	ImplPtrType
Protected Member Functions inherited from cadex::DFMMachining_DrillingIssue
	DFMMachining_DrillingIssue (ImplPtrType theImpl)
	Reserved for internal use.
Protected Member Functions inherited from cadex::DFMBase_HoleIssue
	DFMBase_HoleIssue (ImplPtrType theImpl)
	Reserved for internal use.
Protected Member Functions inherited from cadex::DFMBase_Issue
	DFMBase_Issue (ImplPtrType theImpl)
	Reserved for internal use.
Protected Member Functions inherited from cadex::MTKBase_Feature
	MTKBase_Feature (ImplPtrType theImpl)
	Reserved for internal use.
Protected Attributes inherited from cadex::MTKBase_Feature
ImplPtrType	myImpl

Detailed Description

Describes non standard drill point angle blind hole issues found during cnc machining drilling design analysis.

In cnc machining drilling design, non standard drill point angle blind hole issue refers to the situation where the required angle in the design is not a standard size. The standard angle is important is important for achieving optimal performance and accuracy in drilling operations. A standard angle is commonly used because it provides a good balance between cutting speed and chip clearance, while also minimizing the risk of drill breakage or chipping.

Contains non standard angle and the standard angle closest to it.

See also

DFMMachining_Analyzer, DFMMachining_DrillingAnalyzerParameters.BlindHoleAngleStandardSizeParameters()

Examples

machining/dfm_analyzer/Program.cs, and machining/dfm_analyzer/main.cxx.

Constructor & Destructor Documentation

DFMMachining_NonStandardDrillPointAngleBlindHoleIssue() [1/2]

cadex::DFMMachining_NonStandardDrillPointAngleBlindHoleIssue::DFMMachining_NonStandardDrillPointAngleBlindHoleIssue

(

)

Constructor.

DFMMachining_NonStandardDrillPointAngleBlindHoleIssue() [2/2]

cadex::DFMMachining_NonStandardDrillPointAngleBlindHoleIssue::DFMMachining_NonStandardDrillPointAngleBlindHoleIssue

(

const Machining_Hole &

theHole

)

Constructor.

Creates a non standard drill point angle blind hole issue from the Machining_Hole object.

Member Function Documentation

ActualAngle()

double cadex::DFMMachining_NonStandardDrillPointAngleBlindHoleIssue::ActualAngle

(

)

const

Returns the actual angle in radians .

See also

Hole()

Examples

machining/dfm_analyzer/Program.cs.

CompareType()

bool cadex::DFMMachining_NonStandardDrillPointAngleBlindHoleIssue::CompareType ( const MTKBase_Feature & theFeature )

static

Returns true if theFeature is a DFM machining non standard drill point angle blind hole issue.

Examples

machining/dfm_analyzer/Program.cs.

NearestStandardAngle()

double cadex::DFMMachining_NonStandardDrillPointAngleBlindHoleIssue::NearestStandardAngle

(

)

const

Returns the nearest standard angle in radians .

See also

SetNearestStandardDiameter()

Examples

machining/dfm_analyzer/Program.cs.

SetActualAngle()

void cadex::DFMMachining_NonStandardDrillPointAngleBlindHoleIssue::SetActualAngle

(

double

theAngle

)

Sets the angle in radians .

theAngle should be greater 0.

See also

ActualAngle()

SetNearestStandardAngle()

void cadex::DFMMachining_NonStandardDrillPointAngleBlindHoleIssue::SetNearestStandardAngle

(

double

theAngle

)

Sets the nearest standard angle in radians .

theAngle should not be equal to ActualAngle() and be greater 0.

See also

NearestStandardAngle()
