Describes non standard radius milled part floor fillet issue found during cnc machining milling design analysis. More...

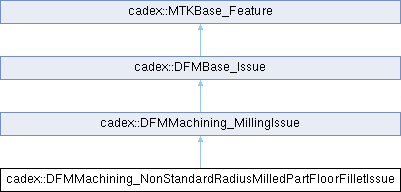

Inheritance diagram for cadex::DFMMachining_NonStandardRadiusMilledPartFloorFilletIssue:

Public Member Functions
	DFMMachining_NonStandardRadiusMilledPartFloorFilletIssue ()
	Constructor.

double	NearestStandardRadius () const
	Returns the nearest standard milled part floor radius in mm .

void	SetNearestStandardRadius (double theRadius)
	Sets nearest standard milled part floor radius in mm .

double	ActualRadius () const
	Returns the actual milled part floor radius in mm .

void	SetActualRadius (double theRadius)
	Sets actual milled part floor radius in mm .

const ModelData::Shell &	FloorFillet () const
	Returns shape of the floor fillet.

void	SetFloorFillet (const ModelData::Shell &theFloorFillet)
	Sets shape of the floor fillet.

Public Member Functions inherited from cadex::MTKBase_Feature
	MTKBase_Feature ()
	Constructor.

	~MTKBase_Feature ()
	Destructor.

void	Nullify ()
	Resets reference to implementation object.

bool	IsNull () const
	Returns true if the object is nullified.

	operator bool () const
	Casts the object to the bool type.

template<typename T >
bool	IsOfType () const

ImplType *	Impl () const

template<typename T >
T *	Impl () const
	Reserved for internal use.

bool	operator== (const MTKBase_Feature &theObject) const

bool	operator!= (const MTKBase_Feature &theObject) const

Static Public Member Functions
static bool	CompareType (const MTKBase_Feature &theFeature)
	Returns true if theFeature is a DFM machining non standard radius milled part floor fillet issue.

Static Public Member Functions inherited from cadex::DFMMachining_MillingIssue
static bool	CompareType (const MTKBase_Feature &theFeature)
	Returns true if theIssue is a DFM machining milling issue.

Static Public Member Functions inherited from cadex::DFMBase_Issue
static bool	CompareType (const MTKBase_Feature &theFeature)
	Returnstrue if theFeature is a DFM issue.

Additional Inherited Members
Public Types inherited from cadex::DFMMachining_MillingIssue
typedef cadex::internal::DFMMachiningImpl_MillingIssue	ImplType

typedef std::shared_ptr< ImplType >	ImplPtrType

Public Types inherited from cadex::DFMBase_Issue
typedef cadex::internal::DFMBaseImpl_Issue	ImplType

typedef std::shared_ptr< ImplType >	ImplPtrType

Public Types inherited from cadex::MTKBase_Feature
typedef cadex::internal::MTKBaseImpl_Feature	ImplType

typedef std::shared_ptr< ImplType >	ImplPtrType

Protected Member Functions inherited from cadex::DFMMachining_MillingIssue
	DFMMachining_MillingIssue (ImplPtrType theImpl)
	Reserved for internal use.

Protected Member Functions inherited from cadex::DFMBase_Issue
	DFMBase_Issue (ImplPtrType theImpl)
	Reserved for internal use.

Protected Member Functions inherited from cadex::MTKBase_Feature
	MTKBase_Feature (ImplPtrType theImpl)
	Reserved for internal use.

Protected Attributes inherited from cadex::MTKBase_Feature
ImplPtrType	myImpl

Detailed Description

Describes non standard radius milled part floor fillet issue found during cnc machining milling design analysis.

A non standard milled part floor radius can be problematic in CNC machining milling design due to the need for special tooling and custom grinding, which can be more expensive and limit the availability of suitable tools. Adjusting cutting parameters can also impact machining time and tool life. Workpiece stability may be compromised due to the added complexity, which can affect surface finish if chatter or vibration occurs.

Contains non standard radius floor fillet and the standard radius closest to it.

See also: DFMMachining_Analyzer, DFMMachining_MillingAnalyzerParameters.MilledPartFloorRadiusStandardSizeParameters()

Examples: machining/dfm_analyzer/Program.cs, and machining/dfm_analyzer/main.cxx.

Constructor & Destructor Documentation

◆ DFMMachining_NonStandardRadiusMilledPartFloorFilletIssue()

cadex::DFMMachining_NonStandardRadiusMilledPartFloorFilletIssue::DFMMachining_NonStandardRadiusMilledPartFloorFilletIssue ( )

Constructor.

Member Function Documentation

◆ ActualRadius()

double cadex::DFMMachining_NonStandardRadiusMilledPartFloorFilletIssue::ActualRadius ( ) const

Returns the actual milled part floor radius in mm .

See also: SetActualRadius()

Examples: machining/dfm_analyzer/Program.cs.

◆ CompareType()

bool cadex::DFMMachining_NonStandardRadiusMilledPartFloorFilletIssue::CompareType ( const MTKBase_Feature & theFeature )

static

Returns true if theFeature is a DFM machining non standard radius milled part floor fillet issue.

Examples: machining/dfm_analyzer/Program.cs.

◆ FloorFillet()

const ModelData::Shell & cadex::DFMMachining_NonStandardRadiusMilledPartFloorFilletIssue::FloorFillet ( ) const

Returns shape of the floor fillet.

See also: SetFloorFillet()

◆ NearestStandardRadius()

double cadex::DFMMachining_NonStandardRadiusMilledPartFloorFilletIssue::NearestStandardRadius ( ) const

Returns the nearest standard milled part floor radius in mm .

See also: SetNearestStandardRadius()

Examples: machining/dfm_analyzer/Program.cs.

◆ SetActualRadius()

void cadex::DFMMachining_NonStandardRadiusMilledPartFloorFilletIssue::SetActualRadius ( double theRadius )

Sets actual milled part floor radius in mm .

theRadius should be greater than zero.

See also: ActualRadius()

◆ SetFloorFillet()

void cadex::DFMMachining_NonStandardRadiusMilledPartFloorFilletIssue::SetFloorFillet ( const ModelData::Shell & theFloorFillet )

Sets shape of the floor fillet.

See also: FloorFillet()

◆ SetNearestStandardRadius()

void cadex::DFMMachining_NonStandardRadiusMilledPartFloorFilletIssue::SetNearestStandardRadius ( double theRadius )

Sets nearest standard milled part floor radius in mm .
