Describes small depth blind bored hole relief found during cnc machining turning design analysis. More...

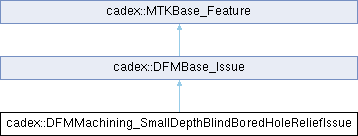

Inheritance diagram for cadex::DFMMachining_SmallDepthBlindBoredHoleReliefIssue:

Public Member Functions
	DFMMachining_SmallDepthBlindBoredHoleReliefIssue ()
	Constructor.

double	ExpectedMinReliefDepthToDiameterRatio () const

void	SetExpectedMinReliefDepthToDiameterRatio (double theValue)

double	ExpectedMinReliefDepth () const

double	ActualReliefDepth () const

void	SetActualReliefDepth (double theValue)

double	ActualDiameter () const

void	SetActualDiameter (double theValue)

const ModelData::Shell &	BlindBoredHole () const

void	SetBlindBoredHole (const ModelData::Shell &theShell)

Public Member Functions inherited from cadex::MTKBase_Feature
	MTKBase_Feature ()
	Constructor.

	~MTKBase_Feature ()
	Destructor.

void	Nullify ()

bool	IsNull () const

	operator bool () const
	Casts the object to the bool type.

template<typename T >
bool	IsOfType () const

ImplType *	Impl () const

template<typename T >
T *	Impl () const
	Reserved for internal use.

bool	operator== (const MTKBase_Feature &theObject) const

bool	operator!= (const MTKBase_Feature &theObject) const

Static Public Member Functions
static bool	CompareType (const MTKBase_Feature &theFeature)
	Returns true if theFeature is a DFM small depth blind bored hole relief issue.

Static Public Member Functions inherited from cadex::DFMBase_Issue
static bool	CompareType (const MTKBase_Feature &theFeature)
	Returnstrue if theFeature is a DFM issue.

Additional Inherited Members
Public Types inherited from cadex::DFMBase_Issue
typedef cadex::internal::DFMBaseImpl_Issue	ImplType

typedef std::shared_ptr< ImplType >	ImplPtrType

Public Types inherited from cadex::MTKBase_Feature
typedef cadex::internal::MTKBaseImpl_Feature	ImplType

typedef std::shared_ptr< ImplType >	ImplPtrType

Protected Member Functions inherited from cadex::DFMBase_Issue
	DFMBase_Issue (ImplPtrType theImpl)
	Reserved for internal use.

Protected Member Functions inherited from cadex::MTKBase_Feature
	MTKBase_Feature (ImplPtrType theImpl)
	Reserved for internal use.

Protected Attributes inherited from cadex::MTKBase_Feature
ImplPtrType	myImpl

Detailed Description

Describes small depth blind bored hole relief found during cnc machining turning design analysis.

In cnc machining, a blind bored hole is a hole that does not go through the entire workpiece, i.e., it has a bottom. The relief depth of the blind bored hole refers to the clearance required for the tool used to drill the hole to operate effectively without being damaged or broken. The issue of small relief depth occurs when the space available for drilling is limited, or the tool has a limited depth of cut, which restricts the depth of the hole that can be drilled. This can cause quality issues in the machined part, as the desired hole depth will not be achieved, leading to inaccuracies in the finished product.

Contains shape of blind bored hole that fails the following condition:

\[ \large D_r \geq Dia_h * Rt \]

\[ \begin{aligned} & \small D_r - \text{actual blind bored hole relief depth} \\ & \small Dia_h - \text{actual blind bored hole diameter} \\ & \small Rt - \text{expected minimum blind bored hole relief depth to diameter ratio} \end{aligned} \]

See also: DFMMachining_Analyzer, DFMMachining_TurningAnalyzerParameters.MinBlindBoredHoleReliefDepthToDiameterRatio()

Examples: machining/dfm_analyzer/Program.cs, and machining/dfm_analyzer/main.cxx.

Member Function Documentation

◆ ActualDiameter()

double cadex::DFMMachining_SmallDepthBlindBoredHoleReliefIssue::ActualDiameter ( ) const

Returns the actual diameter of the blind bored hole in mm .

See also: SetActualDiameter()

Examples: machining/dfm_analyzer/Program.cs.

◆ ActualReliefDepth()

double cadex::DFMMachining_SmallDepthBlindBoredHoleReliefIssue::ActualReliefDepth ( ) const

Returns the actual relief depth in mm .

See also: SetActualReliefDepth()

Examples: machining/dfm_analyzer/Program.cs.

◆ BlindBoredHole()

const ModelData::Shell & cadex::DFMMachining_SmallDepthBlindBoredHoleReliefIssue::BlindBoredHole ( ) const

Returns shape of the blind bored hole.

See also: SetBlindBoredHole()

◆ ExpectedMinReliefDepth()

double cadex::DFMMachining_SmallDepthBlindBoredHoleReliefIssue::ExpectedMinReliefDepth ( ) const

Returns the expected minimum relief depth of the blind bored hole in mm .

\[ \large D_e = Dia_h * Rt \]

\[ \begin{aligned} & \small D_e - \text{expected minimum blind bored hole relief depth} \\ & \small Dia_h - \text{actual blind bored hole diameter} \\ & \small Rt - \text{expected minimum blind bored hole relief depth to diameter ratio} \end{aligned} \]

See also: ExpectedMinReliefDepthToDiameterRatio(), ActualDiameter()

Examples: machining/dfm_analyzer/Program.cs.

◆ ExpectedMinReliefDepthToDiameterRatio()

double cadex::DFMMachining_SmallDepthBlindBoredHoleReliefIssue::ExpectedMinReliefDepthToDiameterRatio ( ) const

Returns the expected minimum relief depth to diameter ratio.

See also: SetExpectedMinReliefDepthToDiameterRatio(), DFMMachining_TurningAnalyzerParameters.MinBlindBoredHoleReliefDepthToDiameterRatio()

◆ SetActualDiameter()

void cadex::DFMMachining_SmallDepthBlindBoredHoleReliefIssue::SetActualDiameter ( double theValue )

Sets actual diameter in mm . The value must be more or equal to zero.

See also: ActualDiameter()

◆ SetActualReliefDepth()

void cadex::DFMMachining_SmallDepthBlindBoredHoleReliefIssue::SetActualReliefDepth ( double theValue )

Sets actual relief depth in mm . The value must be more or equal to zero.

See also: ActualReliefDepth()

◆ SetBlindBoredHole()

void cadex::DFMMachining_SmallDepthBlindBoredHoleReliefIssue::SetBlindBoredHole ( const ModelData::Shell & theShell )

Sets shape of the blind bored hole.

See also: BlindBoredHole()

◆ SetExpectedMinReliefDepthToDiameterRatio()

void cadex::DFMMachining_SmallDepthBlindBoredHoleReliefIssue::SetExpectedMinReliefDepthToDiameterRatio ( double theValue )

Sets expected minimum relief depth to diameter ratio. theValue should be greater or equal to 0, less or equal to 1.

See also: ExpectedMinReliefDepthToDiameterRatio()
