Describes internal corner radius issues found during cnc machining turning design analysis. More...

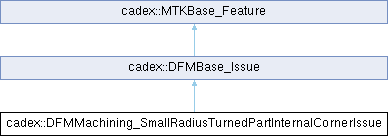

Inheritance diagram for cadex::DFMMachining_SmallRadiusTurnedPartInternalCornerIssue:

Public Member Functions
	DFMMachining_SmallRadiusTurnedPartInternalCornerIssue ()
	Constructor.

double	ExpectedMinRadius () const

void	SetExpectedMinRadius (double theValue)

double	ActualRadius () const

void	SetActualRadius (double theValue)

const ModelData::Shell &	Shape () const

void	SetShape (const ModelData::Shell &theShell)

Public Member Functions inherited from cadex::MTKBase_Feature
	MTKBase_Feature ()
	Constructor.

	~MTKBase_Feature ()
	Destructor.

void	Nullify ()

bool	IsNull () const

	operator bool () const
	Casts the object to the bool type.

template<typename T >
bool	IsOfType () const

ImplType *	Impl () const

template<typename T >
T *	Impl () const
	Reserved for internal use.

bool	operator== (const MTKBase_Feature &theObject) const

bool	operator!= (const MTKBase_Feature &theObject) const

Static Public Member Functions
static bool	CompareType (const MTKBase_Feature &theFeature)
	Returns true if theFeature is a DFM small radius turned part internal corner issue.

Static Public Member Functions inherited from cadex::DFMBase_Issue
static bool	CompareType (const MTKBase_Feature &theFeature)
	Returnstrue if theFeature is a DFM issue.

Additional Inherited Members
Public Types inherited from cadex::DFMBase_Issue
typedef cadex::internal::DFMBaseImpl_Issue	ImplType

typedef std::shared_ptr< ImplType >	ImplPtrType

Public Types inherited from cadex::MTKBase_Feature
typedef cadex::internal::MTKBaseImpl_Feature	ImplType

typedef std::shared_ptr< ImplType >	ImplPtrType

Protected Member Functions inherited from cadex::DFMBase_Issue
	DFMBase_Issue (ImplPtrType theImpl)
	Reserved for internal use.

Protected Member Functions inherited from cadex::MTKBase_Feature
	MTKBase_Feature (ImplPtrType theImpl)
	Reserved for internal use.

Protected Attributes inherited from cadex::MTKBase_Feature
ImplPtrType	myImpl

Detailed Description

Describes internal corner radius issues found during cnc machining turning design analysis.

A turned part with a small internal corner radius issue in cnc machining turning design can cause problems during the machining process, as the tool used to cut the part may not be able to reach into the tight radius, resulting in an unfinished surface. The issue may also result in structural weakness, as sharp internal corners can create stress points that may compromise the integrity of the part.

Contains shape of turned part internal corner that fails the following condition:

\[ \large R_c \geq r_m \]

\[ \begin{aligned} & \small R_c - \text{actual turned part internal corner radius} \\ & \small r_m - \text{expected minimum turned part internal corner radius} \end{aligned} \]

See also: DFMMachining_Analyzer, DFMMachining_TurningAnalyzerParameters.MinTurnedPartInternalCornerRadius()

Examples: machining/dfm_analyzer/Program.cs, and machining/dfm_analyzer/main.cxx.

Member Function Documentation

◆ ActualRadius()

double cadex::DFMMachining_SmallRadiusTurnedPartInternalCornerIssue::ActualRadius ( ) const

Returns the actual internal corner radius of the turned part in mm .

See also: SetActualRadius()

Examples: machining/dfm_analyzer/Program.cs.

◆ ExpectedMinRadius()

double cadex::DFMMachining_SmallRadiusTurnedPartInternalCornerIssue::ExpectedMinRadius ( ) const

Returns the expected minimum internal corner radius in mm .

See also: SetExpectedMinRadius(), DFMMachining_TurningAnalyzerParameters.MinTurnedPartInternalCornerRadius()

Examples: machining/dfm_analyzer/Program.cs.

◆ SetActualRadius()

void cadex::DFMMachining_SmallRadiusTurnedPartInternalCornerIssue::SetActualRadius ( double theValue )

Sets actual internal corner radius in mm . The value must be more or equal to zero.

See also: ActualRadius()

◆ SetExpectedMinRadius()

void cadex::DFMMachining_SmallRadiusTurnedPartInternalCornerIssue::SetExpectedMinRadius ( double theValue )

Sets expected minimum internal corner radius in mm . The value must be more than zero.

See also: ExpectedMinRadius()

◆ SetShape()

void cadex::DFMMachining_SmallRadiusTurnedPartInternalCornerIssue::SetShape ( const ModelData::Shell & theShell )

Sets shape of the internal corner.

See also: Shape()

◆ Shape()

const ModelData::Shell & cadex::DFMMachining_SmallRadiusTurnedPartInternalCornerIssue::Shape ( ) const

Returns shape of the turned part internal corner.

Contains the internal corner fillet shape or faces that form a sharp internal corner.

See also: SetShape()
