Describes irregular core depth screw boss issues found during injection molding design analysis. More...

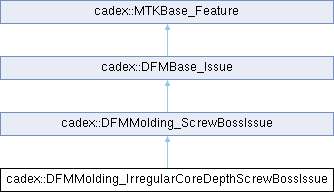

Inheritance diagram for cadex::DFMMolding_IrregularCoreDepthScrewBossIssue:

Public Member Functions
	DFMMolding_IrregularCoreDepthScrewBossIssue ()
	Constructor.

	DFMMolding_IrregularCoreDepthScrewBossIssue (const Molding_ScrewBoss &theScrewBoss)
	Constructor.

double	ActualHeight () const

double	ActualCoreDepth () const

Public Member Functions inherited from cadex::DFMMolding_ScrewBossIssue
const Molding_ScrewBoss &	ScrewBoss () const

void	SetScrewBoss (const Molding_ScrewBoss &theScrewBoss)

Public Member Functions inherited from cadex::MTKBase_Feature
	MTKBase_Feature ()
	Constructor.

	~MTKBase_Feature ()
	Destructor.

void	Nullify ()

bool	IsNull () const

	operator bool () const
	Casts the object to the bool type.

template<typename T >
bool	IsOfType () const

ImplType *	Impl () const

template<typename T >
T *	Impl () const
	Reserved for internal use.

bool	operator== (const MTKBase_Feature &theObject) const

bool	operator!= (const MTKBase_Feature &theObject) const

Static Public Member Functions
static bool	CompareType (const MTKBase_Feature &theFeature)
	Returns true if theFeature is a DFM molding boss core depth issue.

Static Public Member Functions inherited from cadex::DFMMolding_ScrewBossIssue
static bool	CompareType (const MTKBase_Feature &theFeature)
	Returns true if theFeature is a DFM molding screw boss issue.

Static Public Member Functions inherited from cadex::DFMBase_Issue
static bool	CompareType (const MTKBase_Feature &theFeature)
	Returnstrue if theFeature is a DFM issue.

Additional Inherited Members
Public Types inherited from cadex::DFMMolding_ScrewBossIssue
typedef cadex::internal::DFMMoldingImpl_ScrewBossIssue	ImplType

typedef std::shared_ptr< ImplType >	ImplPtrType

Public Types inherited from cadex::DFMBase_Issue
typedef cadex::internal::DFMBaseImpl_Issue	ImplType

typedef std::shared_ptr< ImplType >	ImplPtrType

Public Types inherited from cadex::MTKBase_Feature
typedef cadex::internal::MTKBaseImpl_Feature	ImplType

typedef std::shared_ptr< ImplType >	ImplPtrType

Protected Member Functions inherited from cadex::DFMMolding_ScrewBossIssue
	DFMMolding_ScrewBossIssue (ImplPtrType theImpl)
	Reserved for internal use.

Protected Member Functions inherited from cadex::DFMBase_Issue
	DFMBase_Issue (ImplPtrType theImpl)
	Reserved for internal use.

Protected Member Functions inherited from cadex::MTKBase_Feature
	MTKBase_Feature (ImplPtrType theImpl)
	Reserved for internal use.

Protected Attributes inherited from cadex::MTKBase_Feature
ImplPtrType	myImpl

Detailed Description

Describes irregular core depth screw boss issues found during injection molding design analysis.

The irregular core depth screw boss issues refer to situation when the height of the boss is not equal to core depth. Shallow holes can leave thick sections in the wall, while deeper holes reduce the surrounding wall thickness. To prevent aesthetic defects caused by inconsistent wall thicknesses, the core depth must be equal to the boss height.

Contains screw boss that fails the following conditions:

\[ \large H_h = H_b \]

\[ \begin{aligned} & \small H_h - \text{analyzed boss core hole depth} \\ & \small H_b - \text{analyzed boss height} \\ \end{aligned} \]

See also: DFMMolding_Analyzer, Molding_ScrewBoss

Examples: molding/dfm_analyzer/Program.cs, and molding/dfm_analyzer/main.cxx.

Constructor & Destructor Documentation

◆ DFMMolding_IrregularCoreDepthScrewBossIssue()

cadex::DFMMolding_IrregularCoreDepthScrewBossIssue::DFMMolding_IrregularCoreDepthScrewBossIssue ( const Molding_ScrewBoss & theScrewBoss )

Constructor.

Creates a irregular core depth screw boss issue from the Molding_ScrewBoss object.

Member Function Documentation

◆ ActualCoreDepth()

double cadex::DFMMolding_IrregularCoreDepthScrewBossIssue::ActualCoreDepth ( ) const

Returns the core depth in mm .

See also: ScrewBoss()

Examples: molding/dfm_analyzer/Program.cs.

◆ ActualHeight()

double cadex::DFMMolding_IrregularCoreDepthScrewBossIssue::ActualHeight ( ) const

Returns the height in mm .

See also: ScrewBoss()

Examples: molding/dfm_analyzer/Program.cs.
