Describes irregular screw boss core diameter issues found during injection molding design analysis. More...

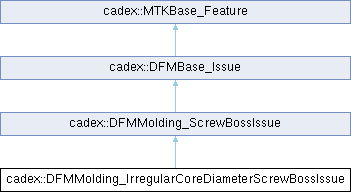

Inheritance diagram for cadex::DFMMolding_IrregularCoreDiameterScrewBossIssue:

Public Member Functions
	DFMMolding_IrregularCoreDiameterScrewBossIssue ()
	Constructor.

	DFMMolding_IrregularCoreDiameterScrewBossIssue (const Molding_ScrewBoss &theScrewBoss)
	Constructor.

double	ExpectedMinCoreToOuterDiameterRatio () const
	Returns the expected minimum boss core hole diameter to outer diameter ratio.

void	SetExpectedMinCoreToOuterDiameterRatio (double theRatio)
	Sets the expected minimum boss core hole diameter to outer diameter ratio.

double	ExpectedMaxCoreToOuterDiameterRatio () const
	Returns the expected maximum boss core hole diameter to outer diameter ratio.

void	SetExpectedMaxCoreToOuterDiameterRatio (double theRatio)
	Sets the expected maximum boss hole core diameter to outer diameter ratio.

double	ExpectedMinCoreDiameter () const
	Returns the expected minimum core hole diameter in mm .

double	ExpectedMaxCoreDiameter () const
	Returns the expected maximum core hole diameter in mm .

double	ActualCoreDiameter () const
	Returns the actual core hole diameter in mm .

Public Member Functions inherited from cadex::DFMMolding_ScrewBossIssue
const Molding_ScrewBoss &	ScrewBoss () const
	Returns the problematic molding screw boss.

void	SetScrewBoss (const Molding_ScrewBoss &theScrewBoss)
	Sets the problematic molding screw boss.

Public Member Functions inherited from cadex::MTKBase_Feature
	MTKBase_Feature ()
	Constructor.

	~MTKBase_Feature ()
	Destructor.

void	Nullify ()
	Resets reference to implementation object.

bool	IsNull () const
	Returns true if the object is nullified.

	operator bool () const
	Casts the object to the bool type.

template<typename T >
bool	IsOfType () const

ImplType *	Impl () const

template<typename T >
T *	Impl () const
	Reserved for internal use.

bool	operator== (const MTKBase_Feature &theObject) const

bool	operator!= (const MTKBase_Feature &theObject) const

Static Public Member Functions
static bool	CompareType (const MTKBase_Feature &theFeature)
	Returns true if theFeature is a DFM molding irregular core diameter screw boss issue.

Static Public Member Functions inherited from cadex::DFMMolding_ScrewBossIssue
static bool	CompareType (const MTKBase_Feature &theFeature)
	Returns true if theFeature is a DFM molding screw boss issue.

Static Public Member Functions inherited from cadex::DFMBase_Issue
static bool	CompareType (const MTKBase_Feature &theFeature)
	Returnstrue if theFeature is a DFM issue.

Additional Inherited Members
Public Types inherited from cadex::DFMMolding_ScrewBossIssue
typedef cadex::internal::DFMMoldingImpl_ScrewBossIssue	ImplType

typedef std::shared_ptr< ImplType >	ImplPtrType

Public Types inherited from cadex::DFMBase_Issue
typedef cadex::internal::DFMBaseImpl_Issue	ImplType

typedef std::shared_ptr< ImplType >	ImplPtrType

Public Types inherited from cadex::MTKBase_Feature
typedef cadex::internal::MTKBaseImpl_Feature	ImplType

typedef std::shared_ptr< ImplType >	ImplPtrType

Protected Member Functions inherited from cadex::DFMMolding_ScrewBossIssue
	DFMMolding_ScrewBossIssue (ImplPtrType theImpl)
	Reserved for internal use.

Protected Member Functions inherited from cadex::DFMBase_Issue
	DFMBase_Issue (ImplPtrType theImpl)
	Reserved for internal use.

Protected Member Functions inherited from cadex::MTKBase_Feature
	MTKBase_Feature (ImplPtrType theImpl)
	Reserved for internal use.

Protected Attributes inherited from cadex::MTKBase_Feature
ImplPtrType	myImpl

Detailed Description

Describes irregular screw boss core diameter issues found during injection molding design analysis.

The irregular screw boss core hole diameter issue refers to a situation where the screw boss core hole diameter is too big or small compared to the outer boss diameter. Proper diameter value is required to mitigate potential stress failures or flow issues caused by thick regions.

Contains screw boss that fails one of the following conditions:

\[ \large R_{min} \leq \frac{D_h}{D_b} \leq R_{max} \]

\[ \begin{aligned} & \small D_h - \text{analyzed boss core hole diameter} \\ & \small D_b - \text{analyzed boss outer diameter} \\ & \small R_{min} - \text{minimum boss core hole to outer diameter ratio} \\ & \small R_{max} - \text{maximum boss core hole to outer diameter ratio} \\ \end{aligned} \]

See also: DFMMolding_Analyzer, DFMMolding_AnalyzerParameters.MaxCoreToOuterDiameterRatio(), DFMMolding_AnalyzerParameters.MinCoreToOuterDiameterRatio(), Molding_ScrewBoss

Examples: molding/dfm_analyzer/Program.cs, and molding/dfm_analyzer/main.cxx.

Constructor & Destructor Documentation

◆ DFMMolding_IrregularCoreDiameterScrewBossIssue() [1/2]

cadex::DFMMolding_IrregularCoreDiameterScrewBossIssue::DFMMolding_IrregularCoreDiameterScrewBossIssue ( )

Constructor.

◆ DFMMolding_IrregularCoreDiameterScrewBossIssue() [2/2]

cadex::DFMMolding_IrregularCoreDiameterScrewBossIssue::DFMMolding_IrregularCoreDiameterScrewBossIssue ( const Molding_ScrewBoss & theScrewBoss )

Constructor.

Creates a irregular boss core diameter issue from the Molding_ScrewBoss object.

Member Function Documentation

◆ ActualCoreDiameter()

double cadex::DFMMolding_IrregularCoreDiameterScrewBossIssue::ActualCoreDiameter ( ) const

Returns the actual core hole diameter in mm .

See also: ScrewBoss()

Examples: molding/dfm_analyzer/Program.cs.

◆ CompareType()

bool cadex::DFMMolding_IrregularCoreDiameterScrewBossIssue::CompareType ( const MTKBase_Feature & theFeature )

static

Returns true if theFeature is a DFM molding irregular core diameter screw boss issue.

Examples: molding/dfm_analyzer/Program.cs.

◆ ExpectedMaxCoreDiameter()

double cadex::DFMMolding_IrregularCoreDiameterScrewBossIssue::ExpectedMaxCoreDiameter ( ) const

Returns the expected maximum core hole diameter in mm .

See also: ScrewBoss()

Examples: molding/dfm_analyzer/Program.cs.

◆ ExpectedMaxCoreToOuterDiameterRatio()

double cadex::DFMMolding_IrregularCoreDiameterScrewBossIssue::ExpectedMaxCoreToOuterDiameterRatio ( ) const

Returns the expected maximum boss core hole diameter to outer diameter ratio.

See also: SetExpectedMaxCoreToOuterDiameterRatio(), DFMMolding_AnalyzerParameters.MaxCoreToOuterDiameterRatio()

◆ ExpectedMinCoreDiameter()

double cadex::DFMMolding_IrregularCoreDiameterScrewBossIssue::ExpectedMinCoreDiameter ( ) const

Returns the expected minimum core hole diameter in mm .

See also: ScrewBoss()

Examples: molding/dfm_analyzer/Program.cs.

◆ ExpectedMinCoreToOuterDiameterRatio()

double cadex::DFMMolding_IrregularCoreDiameterScrewBossIssue::ExpectedMinCoreToOuterDiameterRatio ( ) const

Returns the expected minimum boss core hole diameter to outer diameter ratio.

See also: SetExpectedMinCoreToOuterDiameterRatio(), DFMMolding_AnalyzerParameters.MinCoreToOuterDiameterRatio()

◆ SetExpectedMaxCoreToOuterDiameterRatio()

void cadex::DFMMolding_IrregularCoreDiameterScrewBossIssue::SetExpectedMaxCoreToOuterDiameterRatio ( double theRatio )

Sets the expected maximum boss hole core diameter to outer diameter ratio.

theRatio should be greater than zero.

See also: ExpectedMaxCoreToOuterDiameterRatio()

◆ SetExpectedMinCoreToOuterDiameterRatio()

void cadex::DFMMolding_IrregularCoreDiameterScrewBossIssue::SetExpectedMinCoreToOuterDiameterRatio ( double theRatio )

Sets the expected minimum boss core hole diameter to outer diameter ratio.
