cadex::DFMSheetMetal_IrregularRadiusOpenHemBendIssue Class Reference

Describes irregular open hem bend radius issue found during sheet metal design analysis. More...

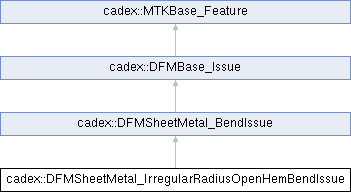

Inheritance diagram for cadex::DFMSheetMetal_IrregularRadiusOpenHemBendIssue:

Public Member Functions
	DFMSheetMetal_IrregularRadiusOpenHemBendIssue ()
	Constructor.
	DFMSheetMetal_IrregularRadiusOpenHemBendIssue (const SheetMetal_HemBend &theBend)
	Constructor.
double	ExpectedRadiusToSheetThicknessRatio () const
	Returns expected open hem bend radius to sheet thickness ratio.
void	SetExpectedRadiusToSheetThicknessRatio (double theRatio)
	Sets expected open hem bend radius to sheet thickness ratio.
double	ExpectedRadius () const
	Returns expected open hem bend radius in mm .
double	ActualRadius () const
	Returns actual open hem bend radius in mm .
Public Member Functions inherited from cadex::DFMSheetMetal_BendIssue
const SheetMetal_Bend &	Bend () const
	Returns the problematic sheet metal bend.
void	SetBend (const SheetMetal_Bend &theBend)
	Sets the problematic sheet metal bend.
double	ActualSheetThickness () const
	Returns the actual sheet thickness of analyzed part in mm .
void	SetActualSheetThickness (double theThickness)
	Sets the actual sheet thickness in mm .
Public Member Functions inherited from cadex::MTKBase_Feature
	MTKBase_Feature ()
	Constructor.
	~MTKBase_Feature ()
	Destructor.
void	Nullify ()
	Resets reference to implementation object.
bool	IsNull () const
	Returns true if the object is nullified.
	operator bool () const
	Casts the object to the bool type.
template<typename T >
bool	IsOfType () const
ImplType *	Impl () const
template<typename T >
T *	Impl () const
	Reserved for internal use.
bool	operator== (const MTKBase_Feature &theObject) const
bool	operator!= (const MTKBase_Feature &theObject) const

Static Public Member Functions
static bool	CompareType (const MTKBase_Feature &theFeature)
	Returns true if theFeature is a DFM sheet metal irregular open hem bend radius issue.
Static Public Member Functions inherited from cadex::DFMSheetMetal_BendIssue
static bool	CompareType (const MTKBase_Feature &theFeature)
	Returns true if theFeature is a DFM sheet metal bend issue.
Static Public Member Functions inherited from cadex::DFMBase_Issue
static bool	CompareType (const MTKBase_Feature &theFeature)
	Returnstrue if theFeature is a DFM issue.

Additional Inherited Members
Public Types inherited from cadex::DFMSheetMetal_BendIssue
typedef cadex::internal::DFMSheetMetalImpl_BendIssue	ImplType
typedef std::shared_ptr< ImplType >	ImplPtrType
Public Types inherited from cadex::DFMBase_Issue
typedef cadex::internal::DFMBaseImpl_Issue	ImplType
typedef std::shared_ptr< ImplType >	ImplPtrType
Public Types inherited from cadex::MTKBase_Feature
typedef cadex::internal::MTKBaseImpl_Feature	ImplType
typedef std::shared_ptr< ImplType >	ImplPtrType
Protected Member Functions inherited from cadex::DFMSheetMetal_BendIssue
	DFMSheetMetal_BendIssue (ImplPtrType theImpl)
	Reserved for internal use.
Protected Member Functions inherited from cadex::DFMBase_Issue
	DFMBase_Issue (ImplPtrType theImpl)
	Reserved for internal use.
Protected Member Functions inherited from cadex::MTKBase_Feature
	MTKBase_Feature (ImplPtrType theImpl)
	Reserved for internal use.
Protected Attributes inherited from cadex::MTKBase_Feature
ImplPtrType	myImpl

Detailed Description

Describes irregular open hem bend radius issue found during sheet metal design analysis.

The irregular open hem bend radius issue refers to a situation where the bend radius differs from the recommended one.

Contains open hem bend that don't meet the following condition:

\[ \large R_n = T * Rt \]

\[ \begin{aligned} & \small R_n - \text{actual open hem bend radius} \\ & \small T - \text{actual sheet thickness} \\ & \small Rt - \text{expected open hem bend radius to sheet thickness ratio} \end{aligned} \]

See also

DFMSheetMetal_Analyzer, DFMSheetMetal_AnalyzerParameters, SheetMetal_HemBend

Examples

sheet_metal/dfm_analyzer/Program.cs, and sheet_metal/dfm_analyzer/main.cxx.

Constructor & Destructor Documentation

DFMSheetMetal_IrregularRadiusOpenHemBendIssue() [1/2]

cadex::DFMSheetMetal_IrregularRadiusOpenHemBendIssue::DFMSheetMetal_IrregularRadiusOpenHemBendIssue

(

)

Constructor.

DFMSheetMetal_IrregularRadiusOpenHemBendIssue() [2/2]

cadex::DFMSheetMetal_IrregularRadiusOpenHemBendIssue::DFMSheetMetal_IrregularRadiusOpenHemBendIssue

(

const SheetMetal_HemBend &

theBend

)

Constructor.

Member Function Documentation

ActualRadius()

double cadex::DFMSheetMetal_IrregularRadiusOpenHemBendIssue::ActualRadius

(

)

const

Returns actual open hem bend radius in mm .

See also

Notch()

Examples

sheet_metal/dfm_analyzer/Program.cs.

CompareType()

bool cadex::DFMSheetMetal_IrregularRadiusOpenHemBendIssue::CompareType ( const MTKBase_Feature & theFeature )

static

Returns true if theFeature is a DFM sheet metal irregular open hem bend radius issue.

Examples

sheet_metal/dfm_analyzer/Program.cs.

ExpectedRadius()

double cadex::DFMSheetMetal_IrregularRadiusOpenHemBendIssue::ExpectedRadius

(

)

const

Returns expected open hem bend radius in mm .

\[ \large R_n = T * Rt \]

\[ \begin{aligned} & \small R_n - \text{actual open hem bend radius} \\ & \small T - \text{actual sheet thickness} \\ & \small Rt - \text{expected open hem bend radius to sheet thickness ratio} \end{aligned} \]

See also

ExpectedRadiusToSheetThicknessRatio(), ActualSheetThickness()

Examples

sheet_metal/dfm_analyzer/Program.cs.

ExpectedRadiusToSheetThicknessRatio()

double cadex::DFMSheetMetal_IrregularRadiusOpenHemBendIssue::ExpectedRadiusToSheetThicknessRatio

(

)

const

Returns expected open hem bend radius to sheet thickness ratio.

See also

SetExpectedRadiusToSheetThicknessRatio(), DFMSheetMetal_AnalyzerParameters.ExpectedRadiusToSheetThicknessRatio()

SetExpectedRadiusToSheetThicknessRatio()

void cadex::DFMSheetMetal_IrregularRadiusOpenHemBendIssue::SetExpectedRadiusToSheetThicknessRatio

(

double

theRatio

)

Sets expected open hem bend radius to sheet thickness ratio.

theRatio should be greater than zero.

See also

ExpectedRadiusToSheetThicknessRatio()
