Describes irregular size bend relief issues found during sheet metal design analysis. More...

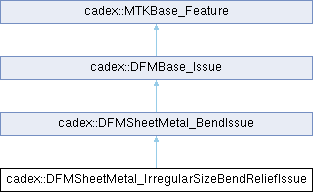

Inheritance diagram for cadex::DFMSheetMetal_IrregularSizeBendReliefIssue:

Public Member Functions
	DFMSheetMetal_IrregularSizeBendReliefIssue ()
	Constructor.

	DFMSheetMetal_IrregularSizeBendReliefIssue (const SheetMetal_Bend &theBend)
	Constructor.

const DFMSheetMetal_BendReliefParameters &	ExpectedMinReliefParameters () const

void	SetExpectedMinReliefParameters (const DFMSheetMetal_BendReliefParameters &theParameters)

SheetMetal_BendRelief	ExpectedMinBendRelief () const

SheetMetal_BendRelief	FirstActualRelief () const
	Returns the first relief of the bend if the bend relief issue was detected. Otherwise returns empty bend relief.

SheetMetal_BendRelief	SecondActualRelief () const
	Returns the second relief of the bend if the bend relief issue was detected. Otherwise returns empty bend relief.

Public Member Functions inherited from cadex::DFMSheetMetal_BendIssue
const SheetMetal_Bend &	Bend () const

void	SetBend (const SheetMetal_Bend &theBend)

double	ActualSheetThickness () const

void	SetActualSheetThickness (double theThickness)

Public Member Functions inherited from cadex::MTKBase_Feature
	MTKBase_Feature ()
	Constructor.

	~MTKBase_Feature ()
	Destructor.

void	Nullify ()

bool	IsNull () const

	operator bool () const
	Casts the object to the bool type.

template<typename T >
bool	IsOfType () const

ImplType *	Impl () const

template<typename T >
T *	Impl () const
	Reserved for internal use.

bool	operator== (const MTKBase_Feature &theObject) const

bool	operator!= (const MTKBase_Feature &theObject) const

Static Public Member Functions
static bool	CompareType (const MTKBase_Feature &theFeature)
	Returnstrue if theFeature is a DFM sheet metal irregular size bend relief issue.

Static Public Member Functions inherited from cadex::DFMSheetMetal_BendIssue
static bool	CompareType (const MTKBase_Feature &theFeature)
	Returns true if theFeature is a DFM sheet metal bend issue.

Static Public Member Functions inherited from cadex::DFMBase_Issue
static bool	CompareType (const MTKBase_Feature &theFeature)
	Returnstrue if theFeature is a DFM issue.

Additional Inherited Members
Public Types inherited from cadex::DFMSheetMetal_BendIssue
typedef cadex::internal::DFMSheetMetalImpl_BendIssue	ImplType

typedef std::shared_ptr< ImplType >	ImplPtrType

Public Types inherited from cadex::DFMBase_Issue
typedef cadex::internal::DFMBaseImpl_Issue	ImplType

typedef std::shared_ptr< ImplType >	ImplPtrType

Public Types inherited from cadex::MTKBase_Feature
typedef cadex::internal::MTKBaseImpl_Feature	ImplType

typedef std::shared_ptr< ImplType >	ImplPtrType

Protected Member Functions inherited from cadex::DFMSheetMetal_BendIssue
	DFMSheetMetal_BendIssue (ImplPtrType theImpl)
	Reserved for internal use.

Protected Member Functions inherited from cadex::DFMBase_Issue
	DFMBase_Issue (ImplPtrType theImpl)
	Reserved for internal use.

Protected Member Functions inherited from cadex::MTKBase_Feature
	MTKBase_Feature (ImplPtrType theImpl)
	Reserved for internal use.

Protected Attributes inherited from cadex::MTKBase_Feature
ImplPtrType	myImpl

Detailed Description

Describes irregular size bend relief issues found during sheet metal design analysis.

Irregular bend relief size issue can occur when the bend relief is not proportionally sized to the bend radius and sheet thickness. When the bend relief is too small, it can cause deformation, cracking, or even tearing during the bending process. On the other hand, if the bend relief is too large, it can create weak points in the metal and decrease the overall strength of the design.

Contain bend, one or both reliefs of which fails the following condition:

\[ \large W_r \geq T \times Rt_w \quad \text{and} \quad L_r \geq R_b \times Rt_l \]

\[ \begin{aligned} & \small W_r - \text{actual width of bend relief} \\ & \small L_r - \text{actual length of bend relief} \\ & \small T - \text{actual sheet thickness} \\ & \small R_b - \text{actual bend radius} \\ & \small Rt_w - \text{minimum bend relief width to sheet thickness ratio from expected bend relief parameters} \\ & \small Rt_l - \text{minimum bend relief length to bend radius ratio from expected bend relief parameters} \end{aligned} \]

Note: This issue can contain only SheetMetal_Bend objects and NOT SheetMetal_HemBend or SheetMetal_CurvedBend. Because irregular size bend relief analysis carried out only for simple bends (SheetMetal_Bend) and simple bends inside compound bends (SheetMetal_CompoundBend.FeatureList()).

See also: DFMSheetMetal_Analyzer, DFMSheetMetal_AnalyzerParameters.BendReliefParameters(), SheetMetal_BendRelief

Examples: sheet_metal/dfm_analyzer/Program.cs, and sheet_metal/dfm_analyzer/main.cxx.

Constructor & Destructor Documentation

◆ DFMSheetMetal_IrregularSizeBendReliefIssue()

cadex::DFMSheetMetal_IrregularSizeBendReliefIssue::DFMSheetMetal_IrregularSizeBendReliefIssue ( const SheetMetal_Bend & theBend )

Constructor.

Creates a irregular size bend relief issue from the SheetMetal_Bend object.

Member Function Documentation

◆ ExpectedMinBendRelief()

SheetMetal_BendRelief cadex::DFMSheetMetal_IrregularSizeBendReliefIssue::ExpectedMinBendRelief ( ) const

Returns expected minimum bend relief.

\[ \large W_e = T \times Rt_w \quad \text{and} \quad L_e = R_b \times Rt_l \]

\[ \begin{aligned} & \small W_e - \text{expected minimum width of bend relief} \\ & \small L_e - \text{expected minimum length of bend relief} \\ & \small T - \text{actual sheet thickness} \\ & \small R_b - \text{actual bend radius} \\ & \small Rt_w - \text{minimum bend relief width to sheet thickness ratio from expected bend relief parameters} \\ & \small Rt_l - \text{minimum bend relief length to bend radius ratio from expected bend relief parameters} \end{aligned} \]
