cadex.DFMMachining_InconsistentRadiusMilledPartFloorFilletIssue Class Reference

Describes inconsistent radius milled part floor fillet issue found during cnc machining milling design analysis. More...

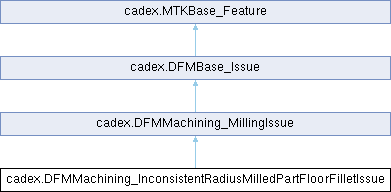

Inheritance diagram for cadex.DFMMachining_InconsistentRadiusMilledPartFloorFilletIssue:

Public Member Functions
	DFMMachining_InconsistentRadiusMilledPartFloorFilletIssue (global::System.IntPtr cPtr, bool cMemoryOwn)
	DFMMachining_InconsistentRadiusMilledPartFloorFilletIssue ()
	Constructor.
double	ExpectedRadius ()
void	SetExpectedRadius (double theRadius)
double	ActualRadius ()
void	SetActualRadius (double theRadius)
cadex.ModelData.Shell	FloorFillet ()
void	SetFloorFillet (cadex.ModelData.Shell theFloorFillet)
Public Member Functions inherited from cadex.DFMMachining_MillingIssue
	DFMMachining_MillingIssue (global::System.IntPtr cPtr, bool cMemoryOwn)
Public Member Functions inherited from cadex.DFMBase_Issue
	DFMBase_Issue (global::System.IntPtr cPtr, bool cMemoryOwn)
Public Member Functions inherited from cadex.MTKBase_Feature
	MTKBase_Feature (global::System.IntPtr cPtr, bool cMemoryOwn)
void	Dispose ()
	MTKBase_Feature ()
	Constructor.
void	Nullify ()
bool	IsNull ()
bool	IsEqual (cadex.MTKBase_Feature theObject)
bool	IsNotEqual (cadex.MTKBase_Feature theObject)

Static Public Member Functions
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is a DFM machining inconsistent radius milled part floor fillet issue.
static new cadex.DFMMachining_InconsistentRadiusMilledPartFloorFilletIssue	Cast (cadex.MTKBase_Feature theBase)
Static Public Member Functions inherited from cadex.DFMMachining_MillingIssue
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theIssue is a DFM machining milling issue.
static new cadex.DFMMachining_MillingIssue	Cast (cadex.MTKBase_Feature theBase)
Static Public Member Functions inherited from cadex.DFMBase_Issue
static bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a DFM issue.
static cadex.DFMBase_Issue	Cast (cadex.MTKBase_Feature theBase)

Protected Member Functions
override void	Dispose (bool disposing)
Protected Member Functions inherited from cadex.DFMMachining_MillingIssue
override void	Dispose (bool disposing)

Detailed Description

Describes inconsistent radius milled part floor fillet issue found during cnc machining milling design analysis.

In cnc milling design, inconsistent floor fillet radii refer to the situation where the size and shape of the fillets on a part are not uniform. Inconsistent radii can weaken the workpiece by creating stress concentration points and compromising the overall strength of the part. Consequently, this can lead to increased manufacturing costs, inefficiencies in the production process, and potential issues during assembly or in use.

See also

DFMMachining_Analyzer

Examples

machining/dfm_analyzer/Program.cs, and machining/dfm_analyzer/main.cxx.

Member Function Documentation

ActualRadius()

double cadex.DFMMachining_InconsistentRadiusMilledPartFloorFilletIssue.ActualRadius ( )

inline

Returns the actual floor fillet radius in mm .

See also

SetActualRadius()

Examples

machining/dfm_analyzer/Program.cs.

Dispose()

override void cadex.DFMMachining_InconsistentRadiusMilledPartFloorFilletIssue.Dispose ( bool disposing )

inlineprotectedvirtual

Reimplemented from cadex.DFMBase_Issue.

ExpectedRadius()

double cadex.DFMMachining_InconsistentRadiusMilledPartFloorFilletIssue.ExpectedRadius ( )

inline

Returns the expected floor fillet radius in mm .

Expected radius is the most common floor fillet radius in analyzed part.

See also

SetExpectedRadius()

Examples

machining/dfm_analyzer/Program.cs.

FloorFillet()

cadex.ModelData.Shell cadex.DFMMachining_InconsistentRadiusMilledPartFloorFilletIssue.FloorFillet ( )

inline

Returns shape of the floor fillet.

See also

SetFloorFillet()

SetActualRadius()

void cadex.DFMMachining_InconsistentRadiusMilledPartFloorFilletIssue.SetActualRadius ( double theRadius )

inline

Sets actual floor fillet radius in mm . theRadius should be greater than zero.

See also

ActualRadius()

SetExpectedRadius()

void cadex.DFMMachining_InconsistentRadiusMilledPartFloorFilletIssue.SetExpectedRadius ( double theRadius )

inline

Sets expected floor fillet radius in mm . theRadius should be greater than zero.

See also

ExpectedRadius()

SetFloorFillet()

void cadex.DFMMachining_InconsistentRadiusMilledPartFloorFilletIssue.SetFloorFillet ( cadex.ModelData.Shell theFloorFillet )

inline

Sets shape of the floor fillet.

See also

FloorFillet()
