Described the Narrow Pocket maximum to minimum sizes ratio issue found during cnc machining milling design analysis. More...

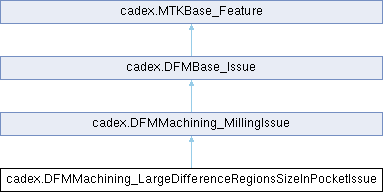

Inheritance diagram for cadex.DFMMachining_LargeDifferenceRegionsSizeInPocketIssue:

Public Member Functions
	DFMMachining_LargeDifferenceRegionsSizeInPocketIssue (global::System.IntPtr cPtr, bool cMemoryOwn)

	DFMMachining_LargeDifferenceRegionsSizeInPocketIssue ()
	Constructor.

double	ExpectedMaxRegionsMaxToMinSizeRatio ()
	Returns the expected maximum to minimum size ratio.

void	SetExpectedMaxRegionsMaxToMinSizeRatio (double theRatio)
	Set expected maximum to minimum size ratio.Values should be greater 0.

double	ActualMaxDistance ()
	Returns the actual maximum distance between features in a pocket.

void	SetActualMaxRegionSize (double theMaxValue)
	Set actual maximum region size.Value should be greater 0.

double	ActualMinDistance ()
	Returns the actual minimum distance between features in a pocket.

void	SetActualMinRegionSize (double theMinValue)
	Set actual minimum region size.Value should be greater 0.

double	ActualMaxRegionsMaxToMinSizeRatio ()
	Returns the actual maximum to minimum size ratio.

cadex.Machining_Pocket	Pocket ()
	Returns pocket, that contains features with an issue.

void	SetPocket (cadex.Machining_Pocket thePocket)
	Set pocket, that contains features with an issue.

cadex.ModelData.Shell	MaxRegionPocketSidewall ()
	Returns shell with max region size to compared inner feature.

void	SetMaxRegionPocketSidewall (cadex.ModelData.Shell theMaxRegionPocketSidewall)
	Set shell with the highest theMaxRegionPocketSidewall size to the inner feature.

cadex.ModelData.Shell	MinRegionPocketSidewall ()
	Returns shell with min region size to compared inner feature.

void	SetMinRegionPocketSidewall (cadex.ModelData.Shell theMinRegionPocketSidewall)
	Set shell with the lowest theMinRegionPocketSidewall size to the inner feature.

cadex.ModelData.Shell	InnerFeature ()
	Returns an inner feature shell.

void	SetInnerFeature (cadex.ModelData.Shell theInnerFeature)
	Set shell of an inner feature.

Public Member Functions inherited from cadex.DFMMachining_MillingIssue
	DFMMachining_MillingIssue (global::System.IntPtr cPtr, bool cMemoryOwn)

Public Member Functions inherited from cadex.DFMBase_Issue
	DFMBase_Issue (global::System.IntPtr cPtr, bool cMemoryOwn)

Public Member Functions inherited from cadex.MTKBase_Feature
	MTKBase_Feature (global::System.IntPtr cPtr, bool cMemoryOwn)

void	Dispose ()

	MTKBase_Feature ()
	Constructor.

void	Nullify ()
	Resets reference to implementation object.

bool	IsNull ()
	Returns true if the object is nullified.

bool	IsEqual (cadex.MTKBase_Feature theObject)

bool	IsNotEqual (cadex.MTKBase_Feature theObject)

Static Public Member Functions
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is a DFM large difference regions size in pocket issue.

static new cadex.DFMMachining_LargeDifferenceRegionsSizeInPocketIssue	Cast (cadex.MTKBase_Feature theBase)

Static Public Member Functions inherited from cadex.DFMMachining_MillingIssue
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theIssue is a DFM machining milling issue.

static new cadex.DFMMachining_MillingIssue	Cast (cadex.MTKBase_Feature theBase)

Static Public Member Functions inherited from cadex.DFMBase_Issue
static bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a DFM issue.

static cadex.DFMBase_Issue	Cast (cadex.MTKBase_Feature theBase)

Protected Member Functions
override void	Dispose (bool disposing)

Protected Member Functions inherited from cadex.DFMMachining_MillingIssue
override void	Dispose (bool disposing)

Detailed Description

Described the Narrow Pocket maximum to minimum sizes ratio issue found during cnc machining milling design analysis.

A large difference in region size in a pocket CNC machining milling design can impact the machining process in terms of the required tool selection, appropriate cutting parameters, required material removal, and tool path optimization.

Contains ratio that fails the following condition:

\[ \large R_p > R_m \]

\[ \begin{aligned} & \small R_p - \text{actual ratio of maximum to minimum sizes} \\ & \small R_m - \text{expected maximum ratio of maximum to minimum sizes} \\ \end{aligned} \]

See also: DFMMachining_Analyzer, DFMMachining_MillingAnalyzerParameters.MaxRegionsMaxToMinSizeRatio()

Examples: machining/dfm_analyzer/Program.cs, and machining/dfm_analyzer/main.cxx.

Constructor & Destructor Documentation

◆ DFMMachining_LargeDifferenceRegionsSizeInPocketIssue()

cadex.DFMMachining_LargeDifferenceRegionsSizeInPocketIssue.DFMMachining_LargeDifferenceRegionsSizeInPocketIssue ( )

inline

Constructor.

Member Function Documentation

◆ ActualMaxDistance()

double cadex.DFMMachining_LargeDifferenceRegionsSizeInPocketIssue.ActualMaxDistance ( )

inline

Returns the actual maximum distance between features in a pocket.

See also: SetActualMaxRegionSize()

◆ ActualMaxRegionsMaxToMinSizeRatio()

double cadex.DFMMachining_LargeDifferenceRegionsSizeInPocketIssue.ActualMaxRegionsMaxToMinSizeRatio ( )

inline

Returns the actual maximum to minimum size ratio.

See also: SetActualMaxRegionSize(), SetActualMinRegionSize()

Examples: machining/dfm_analyzer/Program.cs.

◆ ActualMinDistance()

double cadex.DFMMachining_LargeDifferenceRegionsSizeInPocketIssue.ActualMinDistance ( )

inline

Returns the actual minimum distance between features in a pocket.

See also: SetActualMinRegionSize()

◆ CompareType()

static new bool cadex.DFMMachining_LargeDifferenceRegionsSizeInPocketIssue.CompareType ( cadex.MTKBase_Feature theFeature )

inlinestatic

Returns true if theFeature is a DFM large difference regions size in pocket issue.

Examples: machining/dfm_analyzer/Program.cs.

◆ Dispose()

override void cadex.DFMMachining_LargeDifferenceRegionsSizeInPocketIssue.Dispose ( bool disposing )

inlineprotectedvirtual

Reimplemented from cadex.DFMBase_Issue.

◆ ExpectedMaxRegionsMaxToMinSizeRatio()

double cadex.DFMMachining_LargeDifferenceRegionsSizeInPocketIssue.ExpectedMaxRegionsMaxToMinSizeRatio ( )

inline

Returns the expected maximum to minimum size ratio.

See also: SetExpectedMaxRegionsMaxToMinSizeRatio()

Examples: machining/dfm_analyzer/Program.cs.

◆ InnerFeature()

cadex.ModelData.Shell cadex.DFMMachining_LargeDifferenceRegionsSizeInPocketIssue.InnerFeature ( )

inline

Returns an inner feature shell.

See also: SetInnerFeature()

◆ MaxRegionPocketSidewall()

cadex.ModelData.Shell cadex.DFMMachining_LargeDifferenceRegionsSizeInPocketIssue.MaxRegionPocketSidewall ( )

inline

Returns shell with max region size to compared inner feature.

See also: SetMaxRegionPocketSidewall

◆ MinRegionPocketSidewall()

cadex.ModelData.Shell cadex.DFMMachining_LargeDifferenceRegionsSizeInPocketIssue.MinRegionPocketSidewall ( )

inline

Returns shell with min region size to compared inner feature.

See also: SetMinRegionPocketSidewall()

◆ Pocket()

cadex.Machining_Pocket cadex.DFMMachining_LargeDifferenceRegionsSizeInPocketIssue.Pocket ( )

inline

Returns pocket, that contains features with an issue.

See also: SetPocket()

◆ SetActualMaxRegionSize()

void cadex.DFMMachining_LargeDifferenceRegionsSizeInPocketIssue.SetActualMaxRegionSize ( double theMaxValue )

inline

Set actual maximum region size.Value should be greater 0.

See also: ActualMaxRegionSize()

◆ SetActualMinRegionSize()

void cadex.DFMMachining_LargeDifferenceRegionsSizeInPocketIssue.SetActualMinRegionSize ( double theMinValue )

inline

Set actual minimum region size.Value should be greater 0.

See also: ActualMinDistance()

◆ SetExpectedMaxRegionsMaxToMinSizeRatio()

void cadex.DFMMachining_LargeDifferenceRegionsSizeInPocketIssue.SetExpectedMaxRegionsMaxToMinSizeRatio ( double theRatio )

inline

Set expected maximum to minimum size ratio.Values should be greater 0.

See also: ExpectedMaxRegionsMaxToMinSizeRatio()

◆ SetInnerFeature()

void cadex.DFMMachining_LargeDifferenceRegionsSizeInPocketIssue.SetInnerFeature ( cadex.ModelData.Shell theInnerFeature )

inline

Set shell of an inner feature.

See also: InnerFeature()

◆ SetMaxRegionPocketSidewall()

void cadex.DFMMachining_LargeDifferenceRegionsSizeInPocketIssue.SetMaxRegionPocketSidewall ( cadex.ModelData.Shell theMaxRegionPocketSidewall )

inline

Set shell with the highest theMaxRegionPocketSidewall size to the inner feature.

See also: MaxRegionPocketSidewall()

◆ SetMinRegionPocketSidewall()

void cadex.DFMMachining_LargeDifferenceRegionsSizeInPocketIssue.SetMinRegionPocketSidewall ( cadex.ModelData.Shell theMinRegionPocketSidewall )

inline

Set shell with the lowest theMinRegionPocketSidewall size to the inner feature.

See also: MinRegionPocketSidewall()

◆ SetPocket()

void cadex.DFMMachining_LargeDifferenceRegionsSizeInPocketIssue.SetPocket ( cadex.Machining_Pocket thePocket )

inline

Set pocket, that contains features with an issue.

See also: Pocket()
