cadex.DFMMachining_NonStandardRadiusMilledPartFloorFilletIssue Class Reference

Describes non standard radius milled part floor fillet issue found during cnc machining milling design analysis. More...

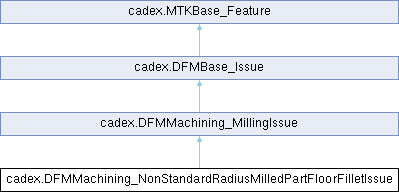

Inheritance diagram for cadex.DFMMachining_NonStandardRadiusMilledPartFloorFilletIssue:

Public Member Functions
	DFMMachining_NonStandardRadiusMilledPartFloorFilletIssue (global::System.IntPtr cPtr, bool cMemoryOwn)
	DFMMachining_NonStandardRadiusMilledPartFloorFilletIssue ()
	Constructor.
double	NearestStandardRadius ()
	Returns the nearest standard milled part floor radius in mm .
void	SetNearestStandardRadius (double theRadius)
	Sets nearest standard milled part floor radius in mm .
double	ActualRadius ()
	Returns the actual milled part floor radius in mm .
void	SetActualRadius (double theRadius)
	Sets actual milled part floor radius in mm .
cadex.ModelData.Shell	FloorFillet ()
	Returns shape of the floor fillet.
void	SetFloorFillet (cadex.ModelData.Shell theFloorFillet)
	Sets shape of the floor fillet.
Public Member Functions inherited from cadex.DFMMachining_MillingIssue
	DFMMachining_MillingIssue (global::System.IntPtr cPtr, bool cMemoryOwn)
Public Member Functions inherited from cadex.DFMBase_Issue
	DFMBase_Issue (global::System.IntPtr cPtr, bool cMemoryOwn)
Public Member Functions inherited from cadex.MTKBase_Feature
	MTKBase_Feature (global::System.IntPtr cPtr, bool cMemoryOwn)
void	Dispose ()
	MTKBase_Feature ()
	Constructor.
void	Nullify ()
	Resets reference to implementation object.
bool	IsNull ()
	Returns true if the object is nullified.
bool	IsEqual (cadex.MTKBase_Feature theObject)
bool	IsNotEqual (cadex.MTKBase_Feature theObject)

Static Public Member Functions
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is a DFM machining non standard radius milled part floor fillet issue.
static new cadex.DFMMachining_NonStandardRadiusMilledPartFloorFilletIssue	Cast (cadex.MTKBase_Feature theBase)
Static Public Member Functions inherited from cadex.DFMMachining_MillingIssue
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theIssue is a DFM machining milling issue.
static new cadex.DFMMachining_MillingIssue	Cast (cadex.MTKBase_Feature theBase)
Static Public Member Functions inherited from cadex.DFMBase_Issue
static bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a DFM issue.
static cadex.DFMBase_Issue	Cast (cadex.MTKBase_Feature theBase)

Protected Member Functions
override void	Dispose (bool disposing)

Detailed Description

Describes non standard radius milled part floor fillet issue found during cnc machining milling design analysis.

A non standard milled part floor radius can be problematic in CNC machining milling design due to the need for special tooling and custom grinding, which can be more expensive and limit the availability of suitable tools. Adjusting cutting parameters can also impact machining time and tool life. Workpiece stability may be compromised due to the added complexity, which can affect surface finish if chatter or vibration occurs.

Contains non standard radius floor fillet and the standard radius closest to it.

See also

DFMMachining_Analyzer, DFMMachining_MillingAnalyzerParameters.MilledPartFloorRadiusStandardSizeParameters()

Examples

machining/dfm_analyzer/Program.cs, and machining/dfm_analyzer/main.cxx.

Constructor & Destructor Documentation

DFMMachining_NonStandardRadiusMilledPartFloorFilletIssue()

cadex.DFMMachining_NonStandardRadiusMilledPartFloorFilletIssue.DFMMachining_NonStandardRadiusMilledPartFloorFilletIssue ( )

inline

Constructor.

Member Function Documentation

ActualRadius()

double cadex.DFMMachining_NonStandardRadiusMilledPartFloorFilletIssue.ActualRadius ( )

inline

Returns the actual milled part floor radius in mm .

See also

SetActualRadius()

Examples

machining/dfm_analyzer/Program.cs.

CompareType()

static new bool cadex.DFMMachining_NonStandardRadiusMilledPartFloorFilletIssue.CompareType ( cadex.MTKBase_Feature theFeature )

inlinestatic

Returns true if theFeature is a DFM machining non standard radius milled part floor fillet issue.

Examples

machining/dfm_analyzer/Program.cs.

Dispose()

override void cadex.DFMMachining_NonStandardRadiusMilledPartFloorFilletIssue.Dispose ( bool disposing )

inlineprotectedvirtual

Reimplemented from cadex.DFMMachining_MillingIssue.

FloorFillet()

cadex.ModelData.Shell cadex.DFMMachining_NonStandardRadiusMilledPartFloorFilletIssue.FloorFillet ( )

inline

Returns shape of the floor fillet.

See also

SetFloorFillet()

NearestStandardRadius()

double cadex.DFMMachining_NonStandardRadiusMilledPartFloorFilletIssue.NearestStandardRadius ( )

inline

Returns the nearest standard milled part floor radius in mm .

See also

SetNearestStandardRadius()

Examples

machining/dfm_analyzer/Program.cs.

SetActualRadius()

void cadex.DFMMachining_NonStandardRadiusMilledPartFloorFilletIssue.SetActualRadius ( double theRadius )

inline

Sets actual milled part floor radius in mm .

theRadius should be greater than zero.

See also

ActualRadius()

SetFloorFillet()

void cadex.DFMMachining_NonStandardRadiusMilledPartFloorFilletIssue.SetFloorFillet ( cadex.ModelData.Shell theFloorFillet )

inline

Sets shape of the floor fillet.

See also

FloorFillet()

SetNearestStandardRadius()

void cadex.DFMMachining_NonStandardRadiusMilledPartFloorFilletIssue.SetNearestStandardRadius ( double theRadius )

inline

Sets nearest standard milled part floor radius in mm .

theRadius should be greater than zero.

See also

NearestStandardRadius()
