Describes small depth blind bored hole relief found during cnc machining turning design analysis. More...

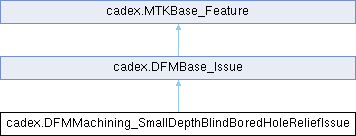

Inheritance diagram for cadex.DFMMachining_SmallDepthBlindBoredHoleReliefIssue:

Public Member Functions
	DFMMachining_SmallDepthBlindBoredHoleReliefIssue (global::System.IntPtr cPtr, bool cMemoryOwn)

	DFMMachining_SmallDepthBlindBoredHoleReliefIssue ()
	Constructor.

double	ExpectedMinReliefDepthToDiameterRatio ()

void	SetExpectedMinReliefDepthToDiameterRatio (double theValue)

double	ExpectedMinReliefDepth ()

double	ActualReliefDepth ()

void	SetActualReliefDepth (double theValue)

double	ActualDiameter ()

void	SetActualDiameter (double theValue)

cadex.ModelData.Shell	BlindBoredHole ()

void	SetBlindBoredHole (cadex.ModelData.Shell theShell)

Public Member Functions inherited from cadex.DFMBase_Issue
	DFMBase_Issue (global::System.IntPtr cPtr, bool cMemoryOwn)

Public Member Functions inherited from cadex.MTKBase_Feature
	MTKBase_Feature (global::System.IntPtr cPtr, bool cMemoryOwn)

void	Dispose ()

	MTKBase_Feature ()
	Constructor.

void	Nullify ()

bool	IsNull ()

bool	IsEqual (cadex.MTKBase_Feature theObject)

bool	IsNotEqual (cadex.MTKBase_Feature theObject)

Static Public Member Functions
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is a DFM small depth blind bored hole relief issue.

static new cadex.DFMMachining_SmallDepthBlindBoredHoleReliefIssue	Cast (cadex.MTKBase_Feature theBase)

Static Public Member Functions inherited from cadex.DFMBase_Issue
static bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a DFM issue.

static cadex.DFMBase_Issue	Cast (cadex.MTKBase_Feature theBase)

Protected Member Functions
override void	Dispose (bool disposing)

Detailed Description

Describes small depth blind bored hole relief found during cnc machining turning design analysis.

In cnc machining, a blind bored hole is a hole that does not go through the entire workpiece, i.e., it has a bottom. The relief depth of the blind bored hole refers to the clearance required for the tool used to drill the hole to operate effectively without being damaged or broken. The issue of small relief depth occurs when the space available for drilling is limited, or the tool has a limited depth of cut, which restricts the depth of the hole that can be drilled. This can cause quality issues in the machined part, as the desired hole depth will not be achieved, leading to inaccuracies in the finished product.

Contains shape of blind bored hole that fails the following condition:

\[ \large D_r \geq Dia_h * Rt \]

\[ \begin{aligned} & \small D_r - \text{actual blind bored hole relief depth} \\ & \small Dia_h - \text{actual blind bored hole diameter} \\ & \small Rt - \text{expected minimum blind bored hole relief depth to diameter ratio} \end{aligned} \]

See also: DFMMachining_Analyzer, DFMMachining_TurningAnalyzerParameters.MinBlindBoredHoleReliefDepthToDiameterRatio()

Examples: machining/dfm_analyzer/Program.cs, and machining/dfm_analyzer/main.cxx.

Member Function Documentation

◆ ActualDiameter()

double cadex.DFMMachining_SmallDepthBlindBoredHoleReliefIssue.ActualDiameter ( )

inline

Returns the actual diameter of the blind bored hole in mm .

See also: SetActualDiameter()

Examples: machining/dfm_analyzer/Program.cs.

◆ ActualReliefDepth()

double cadex.DFMMachining_SmallDepthBlindBoredHoleReliefIssue.ActualReliefDepth ( )

inline

Returns the actual relief depth in mm .

See also: SetActualReliefDepth()

Examples: machining/dfm_analyzer/Program.cs.

◆ BlindBoredHole()

cadex.ModelData.Shell cadex.DFMMachining_SmallDepthBlindBoredHoleReliefIssue.BlindBoredHole ( )

inline

Returns shape of the blind bored hole.

See also: SetBlindBoredHole()

◆ Dispose()

override void cadex.DFMMachining_SmallDepthBlindBoredHoleReliefIssue.Dispose ( bool disposing )

inlineprotectedvirtual

Reimplemented from cadex.DFMBase_Issue.

◆ ExpectedMinReliefDepth()

double cadex.DFMMachining_SmallDepthBlindBoredHoleReliefIssue.ExpectedMinReliefDepth ( )

inline

Returns the expected minimum relief depth of the blind bored hole in mm .

\[ \large D_e = Dia_h * Rt \]

\[ \begin{aligned} & \small D_e - \text{expected minimum blind bored hole relief depth} \\ & \small Dia_h - \text{actual blind bored hole diameter} \\ & \small Rt - \text{expected minimum blind bored hole relief depth to diameter ratio} \end{aligned} \]
