cadex.DFMMachining_SmallRadiusMilledPartInternalCornerIssue Class Reference

Describes internal corner radius issues found during cnc machining milling design analysis. More...

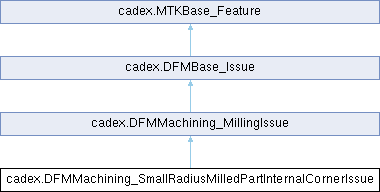

Inheritance diagram for cadex.DFMMachining_SmallRadiusMilledPartInternalCornerIssue:

Public Member Functions
	DFMMachining_SmallRadiusMilledPartInternalCornerIssue (global::System.IntPtr cPtr, bool cMemoryOwn)
	DFMMachining_SmallRadiusMilledPartInternalCornerIssue ()
	Constructor.
double	ExpectedMaxDepthToRadiusRatio ()
void	SetExpectedMaxDepthToRadiusRatio (double theRatio)
double	ExpectedMinRadius ()
double	ActualRadius ()
void	SetActualRadius (double theRadius)
double	ActualDepth ()
void	SetActualDepth (double theDepth)
cadex.ModelData.Shell	Shape ()
void	SetShape (cadex.ModelData.Shell theShell)
Public Member Functions inherited from cadex.DFMMachining_MillingIssue
	DFMMachining_MillingIssue (global::System.IntPtr cPtr, bool cMemoryOwn)
Public Member Functions inherited from cadex.DFMBase_Issue
	DFMBase_Issue (global::System.IntPtr cPtr, bool cMemoryOwn)
Public Member Functions inherited from cadex.MTKBase_Feature
	MTKBase_Feature (global::System.IntPtr cPtr, bool cMemoryOwn)
void	Dispose ()
	MTKBase_Feature ()
	Constructor.
void	Nullify ()
bool	IsNull ()
bool	IsEqual (cadex.MTKBase_Feature theObject)
bool	IsNotEqual (cadex.MTKBase_Feature theObject)

Static Public Member Functions
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theIssue is a DFM small radius milled part internal corner issue.
static new cadex.DFMMachining_SmallRadiusMilledPartInternalCornerIssue	Cast (cadex.MTKBase_Feature theBase)
Static Public Member Functions inherited from cadex.DFMMachining_MillingIssue
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theIssue is a DFM machining milling issue.
static new cadex.DFMMachining_MillingIssue	Cast (cadex.MTKBase_Feature theBase)
Static Public Member Functions inherited from cadex.DFMBase_Issue
static bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a DFM issue.
static cadex.DFMBase_Issue	Cast (cadex.MTKBase_Feature theBase)

Protected Member Functions
override void	Dispose (bool disposing)

Detailed Description

Describes internal corner radius issues found during cnc machining milling design analysis.

A small radius internal corner can be problematic in cnc machining milling design due to the difficulty of clearing material from the corner with a cutting tool. Cutting tools have a finite diameter and cannot produce a sharp internal corner, resulting in a small radius. This small radius can create stress points in the workpiece and may not satisfy design requirements for a sharp corner. Additionally, the small radius can be difficult to machine, requiring specialized tooling or techniques to create a high-quality surface finish.

Contains internal corner that fails the following condition:

\[ \large R_c \geq \frac{D_c}{Rt} \]

\[ \begin{aligned} & \small R_c - \text{actual internal corner radius} \\ & \small D_c - \text{actual internal corner depth} \\ & \small Rt - \text{expected maximum internal corner depth to radius ratio} \end{aligned} \]

See also

DFMMachining_Analyzer, DFMMachining_MillingAnalyzerParameters.MaxMilledPartInternalCornerDepthToRadiusRatio()

Examples

machining/dfm_analyzer/Program.cs, and machining/dfm_analyzer/main.cxx.

Member Function Documentation

ActualDepth()

double cadex.DFMMachining_SmallRadiusMilledPartInternalCornerIssue.ActualDepth ( )

inline

Returns the actual internal corner depth in mm .

See also

SetActualDepth()

ActualRadius()

double cadex.DFMMachining_SmallRadiusMilledPartInternalCornerIssue.ActualRadius ( )

inline

Returns the actual internal corner radius in mm .

See also

SetActualRadius()

Examples

machining/dfm_analyzer/Program.cs.

Dispose()

override void cadex.DFMMachining_SmallRadiusMilledPartInternalCornerIssue.Dispose ( bool disposing )

inlineprotectedvirtual

Reimplemented from cadex.DFMMachining_MillingIssue.

ExpectedMaxDepthToRadiusRatio()

double cadex.DFMMachining_SmallRadiusMilledPartInternalCornerIssue.ExpectedMaxDepthToRadiusRatio ( )

inline

Returns the expected maximum internal corner depth to radius ratio.

See also

SetExpectedMaxDepthToRadiusRatio(), DFMMachining_MillingAnalyzerParameters.MaxMilledPartInternalCornerDepthToRadiusRatio()

ExpectedMinRadius()

double cadex.DFMMachining_SmallRadiusMilledPartInternalCornerIssue.ExpectedMinRadius ( )

inline

Returns the expected minimum internal corner radius in mm .

\[ \large R_e = \frac{D_c}{Rt} \]

\[ \begin{aligned} & \small R_e - \text{expected minimum internal corner radius} \\ & \small D_c - \text{actual internal corner depth} \\ & \small Rt - \text{expected maximum internal corner depth to radius ratio} \end{aligned} \]

See also

ExpectedMaxDepthToRadiusRatio(), ActualDepth()

Examples

machining/dfm_analyzer/Program.cs.

SetActualDepth()

void cadex.DFMMachining_SmallRadiusMilledPartInternalCornerIssue.SetActualDepth ( double theDepth )

inline

Sets actual internal corner depth in mm . The value should be greater or equal to 0.

See also

ActualDepth()

SetActualRadius()

void cadex.DFMMachining_SmallRadiusMilledPartInternalCornerIssue.SetActualRadius ( double theRadius )

inline

Sets actual internal corner radius in mm . The value should be greater or equal to 0.

See also

ActualRadius()

SetShape()

void cadex.DFMMachining_SmallRadiusMilledPartInternalCornerIssue.SetShape ( cadex.ModelData.Shell theShell )

inline

Sets shape of the milled part internal corner.

See also

Shape()

Shape()

cadex.ModelData.Shell cadex.DFMMachining_SmallRadiusMilledPartInternalCornerIssue.Shape ( )

inline

Returns shape of the milled part internal corner.

Contains the internal corner fillet shape or faces that form a sharp internal corner.

See also

SetShape()
