Describes irregular core depth screw boss issues found during injection molding design analysis. More...

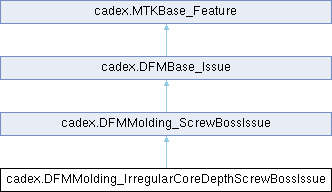

Inheritance diagram for cadex.DFMMolding_IrregularCoreDepthScrewBossIssue:

Public Member Functions
	DFMMolding_IrregularCoreDepthScrewBossIssue (global::System.IntPtr cPtr, bool cMemoryOwn)

	DFMMolding_IrregularCoreDepthScrewBossIssue ()
	Constructor.

	DFMMolding_IrregularCoreDepthScrewBossIssue (cadex.Molding_ScrewBoss theScrewBoss)
	Creates a irregular core depth screw boss issue from the Molding_ScrewBoss object.

double	ActualHeight ()
	Returns the height in mm .

double	ActualCoreDepth ()
	Returns the core depth in mm .

Public Member Functions inherited from cadex.DFMMolding_ScrewBossIssue
	DFMMolding_ScrewBossIssue (global::System.IntPtr cPtr, bool cMemoryOwn)

cadex.Molding_ScrewBoss	ScrewBoss ()
	Returns the problematic molding screw boss.

void	SetScrewBoss (cadex.Molding_ScrewBoss theScrewBoss)
	Sets the problematic molding screw boss.

Public Member Functions inherited from cadex.DFMBase_Issue
	DFMBase_Issue (global::System.IntPtr cPtr, bool cMemoryOwn)

Public Member Functions inherited from cadex.MTKBase_Feature
	MTKBase_Feature (global::System.IntPtr cPtr, bool cMemoryOwn)

void	Dispose ()

	MTKBase_Feature ()
	Constructor.

void	Nullify ()
	Resets reference to implementation object.

bool	IsNull ()
	Returns true if the object is nullified.

bool	IsEqual (cadex.MTKBase_Feature theObject)

bool	IsNotEqual (cadex.MTKBase_Feature theObject)

Static Public Member Functions
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is a DFM molding boss core depth issue.

static new cadex.DFMMolding_IrregularCoreDepthScrewBossIssue	Cast (cadex.MTKBase_Feature theBase)

Static Public Member Functions inherited from cadex.DFMMolding_ScrewBossIssue
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is a DFM molding screw boss issue.

static new cadex.DFMMolding_ScrewBossIssue	Cast (cadex.MTKBase_Feature theBase)

Static Public Member Functions inherited from cadex.DFMBase_Issue
static bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a DFM issue.

static cadex.DFMBase_Issue	Cast (cadex.MTKBase_Feature theBase)

Protected Member Functions
override void	Dispose (bool disposing)

Protected Member Functions inherited from cadex.DFMMolding_ScrewBossIssue
override void	Dispose (bool disposing)

Detailed Description

Describes irregular core depth screw boss issues found during injection molding design analysis.

The irregular core depth screw boss issues refer to situation when the height of the boss is not equal to core depth. Shallow holes can leave thick sections in the wall, while deeper holes reduce the surrounding wall thickness. To prevent aesthetic defects caused by inconsistent wall thicknesses, the core depth must be equal to the boss height.

Contains screw boss that fails the following conditions:

\[ \large H_h = H_b \]

\[ \begin{aligned} & \small H_h - \text{analyzed boss core hole depth} \\ & \small H_b - \text{analyzed boss height} \\ \end{aligned} \]
