cadex.DFMMolding_IrregularCoreDiameterScrewBossIssue Class Reference

Describes irregular screw boss core diameter issues found during injection molding design analysis. More...

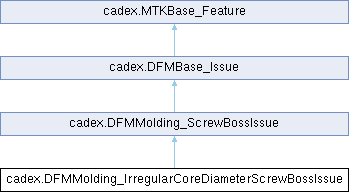

Inheritance diagram for cadex.DFMMolding_IrregularCoreDiameterScrewBossIssue:

Public Member Functions
	DFMMolding_IrregularCoreDiameterScrewBossIssue (global::System.IntPtr cPtr, bool cMemoryOwn)
	DFMMolding_IrregularCoreDiameterScrewBossIssue ()
	Constructor.
	DFMMolding_IrregularCoreDiameterScrewBossIssue (cadex.Molding_ScrewBoss theScrewBoss)
	Constructor.
double	ExpectedMinCoreToOuterDiameterRatio ()
void	SetExpectedMinCoreToOuterDiameterRatio (double theRatio)
double	ExpectedMaxCoreToOuterDiameterRatio ()
void	SetExpectedMaxCoreToOuterDiameterRatio (double theRatio)
double	ExpectedMinCoreDiameter ()
double	ExpectedMaxCoreDiameter ()
double	ActualCoreDiameter ()
Public Member Functions inherited from cadex.DFMMolding_ScrewBossIssue
	DFMMolding_ScrewBossIssue (global::System.IntPtr cPtr, bool cMemoryOwn)
cadex.Molding_ScrewBoss	ScrewBoss ()
void	SetScrewBoss (cadex.Molding_ScrewBoss theScrewBoss)
Public Member Functions inherited from cadex.DFMBase_Issue
	DFMBase_Issue (global::System.IntPtr cPtr, bool cMemoryOwn)
Public Member Functions inherited from cadex.MTKBase_Feature
	MTKBase_Feature (global::System.IntPtr cPtr, bool cMemoryOwn)
void	Dispose ()
	MTKBase_Feature ()
	Constructor.
void	Nullify ()
bool	IsNull ()
bool	IsEqual (cadex.MTKBase_Feature theObject)
bool	IsNotEqual (cadex.MTKBase_Feature theObject)

Static Public Member Functions
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is a DFM molding irregular core diameter screw boss issue.
static new cadex.DFMMolding_IrregularCoreDiameterScrewBossIssue	Cast (cadex.MTKBase_Feature theBase)
Static Public Member Functions inherited from cadex.DFMMolding_ScrewBossIssue
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is a DFM molding screw boss issue.
static new cadex.DFMMolding_ScrewBossIssue	Cast (cadex.MTKBase_Feature theBase)
Static Public Member Functions inherited from cadex.DFMBase_Issue
static bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a DFM issue.
static cadex.DFMBase_Issue	Cast (cadex.MTKBase_Feature theBase)

Protected Member Functions
override void	Dispose (bool disposing)
Protected Member Functions inherited from cadex.DFMMolding_ScrewBossIssue
override void	Dispose (bool disposing)

Detailed Description

Describes irregular screw boss core diameter issues found during injection molding design analysis.

The irregular screw boss core hole diameter issue refers to a situation where the screw boss core hole diameter is too big or small compared to the outer boss diameter. Proper diameter value is required to mitigate potential stress failures or flow issues caused by thick regions.

Contains screw boss that fails one of the following conditions:

\[ \large R_{min} \leq \frac{D_h}{D_b} \leq R_{max} \]

\[ \begin{aligned} & \small D_h - \text{analyzed boss core hole diameter} \\ & \small D_b - \text{analyzed boss outer diameter} \\ & \small R_{min} - \text{minimum boss core hole to outer diameter ratio} \\ & \small R_{max} - \text{maximum boss core hole to outer diameter ratio} \\ \end{aligned} \]

See also

DFMMolding_Analyzer, DFMMolding_AnalyzerParameters.MaxCoreToOuterDiameterRatio(), DFMMolding_AnalyzerParameters.MinCoreToOuterDiameterRatio(), Molding_ScrewBoss

Examples

molding/dfm_analyzer/Program.cs, and molding/dfm_analyzer/main.cxx.

Constructor & Destructor Documentation

DFMMolding_IrregularCoreDiameterScrewBossIssue()

cadex.DFMMolding_IrregularCoreDiameterScrewBossIssue.DFMMolding_IrregularCoreDiameterScrewBossIssue ( cadex.Molding_ScrewBoss theScrewBoss )

inline

Constructor.

Creates a irregular boss core diameter issue from the Molding_ScrewBoss object.

Member Function Documentation

ActualCoreDiameter()

double cadex.DFMMolding_IrregularCoreDiameterScrewBossIssue.ActualCoreDiameter ( )

inline

Returns the actual core hole diameter in mm .

See also

ScrewBoss()

Examples

molding/dfm_analyzer/Program.cs.

Dispose()

override void cadex.DFMMolding_IrregularCoreDiameterScrewBossIssue.Dispose ( bool disposing )

inlineprotectedvirtual

Reimplemented from cadex.DFMBase_Issue.

ExpectedMaxCoreDiameter()

double cadex.DFMMolding_IrregularCoreDiameterScrewBossIssue.ExpectedMaxCoreDiameter ( )

inline

Returns the expected maximum core hole diameter in mm .

See also

ScrewBoss()

Examples

molding/dfm_analyzer/Program.cs.

ExpectedMaxCoreToOuterDiameterRatio()

double cadex.DFMMolding_IrregularCoreDiameterScrewBossIssue.ExpectedMaxCoreToOuterDiameterRatio ( )

inline

Returns the expected maximum boss core hole diameter to outer diameter ratio.

See also

SetExpectedMaxCoreToOuterDiameterRatio(), DFMMolding_AnalyzerParameters.MaxCoreToOuterDiameterRatio()

ExpectedMinCoreDiameter()

double cadex.DFMMolding_IrregularCoreDiameterScrewBossIssue.ExpectedMinCoreDiameter ( )

inline

Returns the expected minimum core hole diameter in mm .

See also

ScrewBoss()

Examples

molding/dfm_analyzer/Program.cs.

ExpectedMinCoreToOuterDiameterRatio()

double cadex.DFMMolding_IrregularCoreDiameterScrewBossIssue.ExpectedMinCoreToOuterDiameterRatio ( )

inline

Returns the expected minimum boss core hole diameter to outer diameter ratio.

See also

SetExpectedMinCoreToOuterDiameterRatio(), DFMMolding_AnalyzerParameters.MinCoreToOuterDiameterRatio()

SetExpectedMaxCoreToOuterDiameterRatio()

void cadex.DFMMolding_IrregularCoreDiameterScrewBossIssue.SetExpectedMaxCoreToOuterDiameterRatio ( double theRatio )

inline

Sets the expected maximum boss hole core diameter to outer diameter ratio. theRatio should be greater than zero.

See also

ExpectedMaxCoreToOuterDiameterRatio()

SetExpectedMinCoreToOuterDiameterRatio()

void cadex.DFMMolding_IrregularCoreDiameterScrewBossIssue.SetExpectedMinCoreToOuterDiameterRatio ( double theRatio )

inline

Sets the expected minimum boss core hole diameter to outer diameter ratio. theRatio should be greater than zero.

See also

ExpectedMinCoreToOuterDiameterRatio()
