cadex.DFMSheetMetal_IrregularCornerFilletRadiusNotchIssue Class Reference

Describes irregular notch corner fillet radius issue found during sheet metal design analysis. More...

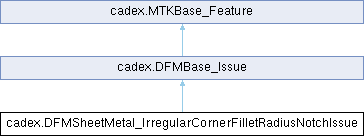

Inheritance diagram for cadex.DFMSheetMetal_IrregularCornerFilletRadiusNotchIssue:

Public Member Functions
	DFMSheetMetal_IrregularCornerFilletRadiusNotchIssue (global::System.IntPtr cPtr, bool cMemoryOwn)
	DFMSheetMetal_IrregularCornerFilletRadiusNotchIssue ()
	Constructor.
	DFMSheetMetal_IrregularCornerFilletRadiusNotchIssue (cadex.SheetMetal_StraightNotch theNotch)
	Constructor.
cadex.SheetMetal_StraightNotch	Notch ()
	Returns the problematic sheet metal notch.
void	SetNotch (cadex.SheetMetal_StraightNotch theNotch)
	Sets the problematic sheet metal notch.
double	ExpectedCornerFilletRadiusToSheetThicknessRatio ()
	Returns expected notch corner fillet radius to sheet thickness ratio.
void	SetExpectedCornerFilletRadiusToSheetThicknessRatio (double theRatio)
	Sets expected notch corner fillet radius to sheet thickness ratio.
double	ExpectedCornerFilletRadius ()
	Returns expected notch corner fillet radius in mm .
double	ActualCornerFilletRadius ()
	Returns actual notch corner fillet radius in mm .
double	ActualSheetThickness ()
	Returns actual sheet thickness in mm .
void	SetActualSheetThickness (double theThickness)
	Sets actual sheet thickness in mm .
Public Member Functions inherited from cadex.DFMBase_Issue
	DFMBase_Issue (global::System.IntPtr cPtr, bool cMemoryOwn)
Public Member Functions inherited from cadex.MTKBase_Feature
	MTKBase_Feature (global::System.IntPtr cPtr, bool cMemoryOwn)
void	Dispose ()
	MTKBase_Feature ()
	Constructor.
void	Nullify ()
	Resets reference to implementation object.
bool	IsNull ()
	Returns true if the object is nullified.
bool	IsEqual (cadex.MTKBase_Feature theObject)
bool	IsNotEqual (cadex.MTKBase_Feature theObject)

Static Public Member Functions
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is a DFM sheet metal irregular corner fillet radius notch issue.
static new cadex.DFMSheetMetal_IrregularCornerFilletRadiusNotchIssue	Cast (cadex.MTKBase_Feature theBase)
Static Public Member Functions inherited from cadex.DFMBase_Issue
static bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a DFM issue.
static cadex.DFMBase_Issue	Cast (cadex.MTKBase_Feature theBase)

Protected Member Functions
override void	Dispose (bool disposing)

Detailed Description

Describes irregular notch corner fillet radius issue found during sheet metal design analysis.

If the ratio of the notch corner fillet radius to the thickness of the sheet metal is irregular, this can lead to problems in the production of notches. Straight corners of the notch can be difficult to shear cleanly without causing deformation or fractures in the material. Rounded corners help distribute cutting force more evenly, reducing the chance of warping or breaking and providing a cleaner, more precise cut.

Contains notch with corner fillet radii that don't meet the following condition:

\[ \large R_n = T * Rt \]

\[ \begin{aligned} & \small R_n - \text{actual notch corner fillet radius} \\ & \small T - \text{actual sheet thickness} \\ & \small Rt - \text{expected notch corner fillet radius to sheet thickness ratio} \end{aligned} \]

See also

DFMSheetMetal_Analyzer, DFMSheetMetal_AnalyzerParameters, SheetMetal_StraightNotch

Examples

sheet_metal/dfm_analyzer/Program.cs, and sheet_metal/dfm_analyzer/main.cxx.

Constructor & Destructor Documentation

DFMSheetMetal_IrregularCornerFilletRadiusNotchIssue() [1/2]

cadex.DFMSheetMetal_IrregularCornerFilletRadiusNotchIssue.DFMSheetMetal_IrregularCornerFilletRadiusNotchIssue ( )

inline

Constructor.

DFMSheetMetal_IrregularCornerFilletRadiusNotchIssue() [2/2]

cadex.DFMSheetMetal_IrregularCornerFilletRadiusNotchIssue.DFMSheetMetal_IrregularCornerFilletRadiusNotchIssue ( cadex.SheetMetal_StraightNotch theNotch )

inline

Constructor.

Member Function Documentation

ActualCornerFilletRadius()

double cadex.DFMSheetMetal_IrregularCornerFilletRadiusNotchIssue.ActualCornerFilletRadius ( )

inline

Returns actual notch corner fillet radius in mm .

See also

Notch()

Examples

sheet_metal/dfm_analyzer/Program.cs.

ActualSheetThickness()

double cadex.DFMSheetMetal_IrregularCornerFilletRadiusNotchIssue.ActualSheetThickness ( )

inline

Returns actual sheet thickness in mm .

See also

SetActualSheetThickness()

CompareType()

static new bool cadex.DFMSheetMetal_IrregularCornerFilletRadiusNotchIssue.CompareType ( cadex.MTKBase_Feature theFeature )

inlinestatic

Returns true if theFeature is a DFM sheet metal irregular corner fillet radius notch issue.

Examples

sheet_metal/dfm_analyzer/Program.cs.

Dispose()

override void cadex.DFMSheetMetal_IrregularCornerFilletRadiusNotchIssue.Dispose ( bool disposing )

inlineprotectedvirtual

Reimplemented from cadex.DFMBase_Issue.

ExpectedCornerFilletRadius()

double cadex.DFMSheetMetal_IrregularCornerFilletRadiusNotchIssue.ExpectedCornerFilletRadius ( )

inline

Returns expected notch corner fillet radius in mm .

\[ \large R_n = T * Rt \]

\[ \begin{aligned} & \small R_n - \text{actual notch corner fillet radius} \\ & \small T - \text{actual sheet thickness} \\ & \small Rt - \text{expected notch corner fillet radius to sheet thickness ratio} \end{aligned} \]

See also

ExpectedCornerFilletRadiusToSheetThicknessRatio(), ActualSheetThickness()

Examples

sheet_metal/dfm_analyzer/Program.cs.

ExpectedCornerFilletRadiusToSheetThicknessRatio()

double cadex.DFMSheetMetal_IrregularCornerFilletRadiusNotchIssue.ExpectedCornerFilletRadiusToSheetThicknessRatio ( )

inline

Returns expected notch corner fillet radius to sheet thickness ratio.

See also

SetExpectedCornerFilletRadiusToSheetThicknessRatio(), DFMSheetMetal_AnalyzerParameters.NotchCornerFilletRadiusToSheetThicknessRatio()

Notch()

cadex.SheetMetal_StraightNotch cadex.DFMSheetMetal_IrregularCornerFilletRadiusNotchIssue.Notch ( )

inline

Returns the problematic sheet metal notch.

See also

SetNotch()

SetActualSheetThickness()

void cadex.DFMSheetMetal_IrregularCornerFilletRadiusNotchIssue.SetActualSheetThickness ( double theThickness )

inline

Sets actual sheet thickness in mm .

theThickness should be greater than zero.

See also

ActualSheetThickness()

SetExpectedCornerFilletRadiusToSheetThicknessRatio()

void cadex.DFMSheetMetal_IrregularCornerFilletRadiusNotchIssue.SetExpectedCornerFilletRadiusToSheetThicknessRatio ( double theRatio )

inline

Sets expected notch corner fillet radius to sheet thickness ratio.

theRatio should be greater than zero.

See also

ExpectedCornerFilletRadiusToSheetThicknessRatio()

SetNotch()

void cadex.DFMSheetMetal_IrregularCornerFilletRadiusNotchIssue.SetNotch ( cadex.SheetMetal_StraightNotch theNotch )

inline

Sets the problematic sheet metal notch.

See also

Notch()
