cadex.DFMSheetMetal_IrregularRadiusOpenHemBendIssue Class Reference

Describes irregular open hem bend radius issue found during sheet metal design analysis. More...

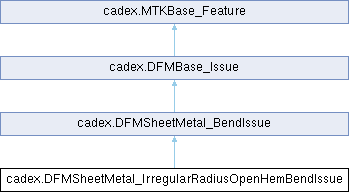

Inheritance diagram for cadex.DFMSheetMetal_IrregularRadiusOpenHemBendIssue:

Public Member Functions
	DFMSheetMetal_IrregularRadiusOpenHemBendIssue (global::System.IntPtr cPtr, bool cMemoryOwn)
	DFMSheetMetal_IrregularRadiusOpenHemBendIssue ()
	Constructor.
	DFMSheetMetal_IrregularRadiusOpenHemBendIssue (cadex.SheetMetal_HemBend theBend)
	Constructor.
double	ExpectedRadiusToSheetThicknessRatio ()
	Returns expected open hem bend radius to sheet thickness ratio.
void	SetExpectedRadiusToSheetThicknessRatio (double theRatio)
	Sets expected open hem bend radius to sheet thickness ratio.
double	ExpectedRadius ()
	Returns expected open hem bend radius in mm .
double	ActualRadius ()
	Returns actual open hem bend radius in mm .
Public Member Functions inherited from cadex.DFMSheetMetal_BendIssue
	DFMSheetMetal_BendIssue (global::System.IntPtr cPtr, bool cMemoryOwn)
cadex.SheetMetal_Bend	Bend ()
	Returns the problematic sheet metal bend.
void	SetBend (cadex.SheetMetal_Bend theBend)
	Sets the problematic sheet metal bend.
double	ActualSheetThickness ()
	Returns the actual sheet thickness of analyzed part in mm .
void	SetActualSheetThickness (double theThickness)
	Sets the actual sheet thickness in mm .
Public Member Functions inherited from cadex.DFMBase_Issue
	DFMBase_Issue (global::System.IntPtr cPtr, bool cMemoryOwn)
Public Member Functions inherited from cadex.MTKBase_Feature
	MTKBase_Feature (global::System.IntPtr cPtr, bool cMemoryOwn)
void	Dispose ()
	MTKBase_Feature ()
	Constructor.
void	Nullify ()
	Resets reference to implementation object.
bool	IsNull ()
	Returns true if the object is nullified.
bool	IsEqual (cadex.MTKBase_Feature theObject)
bool	IsNotEqual (cadex.MTKBase_Feature theObject)

Static Public Member Functions
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is a DFM sheet metal irregular open hem bend radius issue.
static new cadex.DFMSheetMetal_IrregularRadiusOpenHemBendIssue	Cast (cadex.MTKBase_Feature theBase)
Static Public Member Functions inherited from cadex.DFMSheetMetal_BendIssue
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is a DFM sheet metal bend issue.
static new cadex.DFMSheetMetal_BendIssue	Cast (cadex.MTKBase_Feature theBase)
Static Public Member Functions inherited from cadex.DFMBase_Issue
static bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a DFM issue.
static cadex.DFMBase_Issue	Cast (cadex.MTKBase_Feature theBase)

Protected Member Functions
override void	Dispose (bool disposing)

Detailed Description

Describes irregular open hem bend radius issue found during sheet metal design analysis.

The irregular open hem bend radius issue refers to a situation where the bend radius differs from the recommended one.

Contains open hem bend that don't meet the following condition:

\[ \large R_n = T * Rt \]

\[ \begin{aligned} & \small R_n - \text{actual open hem bend radius} \\ & \small T - \text{actual sheet thickness} \\ & \small Rt - \text{expected open hem bend radius to sheet thickness ratio} \end{aligned} \]

See also

DFMSheetMetal_Analyzer, DFMSheetMetal_AnalyzerParameters, SheetMetal_HemBend

Examples

sheet_metal/dfm_analyzer/Program.cs, and sheet_metal/dfm_analyzer/main.cxx.

Constructor & Destructor Documentation

DFMSheetMetal_IrregularRadiusOpenHemBendIssue() [1/2]

cadex.DFMSheetMetal_IrregularRadiusOpenHemBendIssue.DFMSheetMetal_IrregularRadiusOpenHemBendIssue ( )

inline

Constructor.

DFMSheetMetal_IrregularRadiusOpenHemBendIssue() [2/2]

cadex.DFMSheetMetal_IrregularRadiusOpenHemBendIssue.DFMSheetMetal_IrregularRadiusOpenHemBendIssue ( cadex.SheetMetal_HemBend theBend )

inline

Constructor.

Member Function Documentation

ActualRadius()

double cadex.DFMSheetMetal_IrregularRadiusOpenHemBendIssue.ActualRadius ( )

inline

Returns actual open hem bend radius in mm .

See also

Notch()

Examples

sheet_metal/dfm_analyzer/Program.cs.

CompareType()

static new bool cadex.DFMSheetMetal_IrregularRadiusOpenHemBendIssue.CompareType ( cadex.MTKBase_Feature theFeature )

inlinestatic

Returns true if theFeature is a DFM sheet metal irregular open hem bend radius issue.

Examples

sheet_metal/dfm_analyzer/Program.cs.

Dispose()

override void cadex.DFMSheetMetal_IrregularRadiusOpenHemBendIssue.Dispose ( bool disposing )

inlineprotectedvirtual

Reimplemented from cadex.DFMSheetMetal_BendIssue.

ExpectedRadius()

double cadex.DFMSheetMetal_IrregularRadiusOpenHemBendIssue.ExpectedRadius ( )

inline

Returns expected open hem bend radius in mm .

\[ \large R_n = T * Rt \]

\[ \begin{aligned} & \small R_n - \text{actual open hem bend radius} \\ & \small T - \text{actual sheet thickness} \\ & \small Rt - \text{expected open hem bend radius to sheet thickness ratio} \end{aligned} \]

See also

ExpectedRadiusToSheetThicknessRatio(), ActualSheetThickness()

Examples

sheet_metal/dfm_analyzer/Program.cs.

ExpectedRadiusToSheetThicknessRatio()

double cadex.DFMSheetMetal_IrregularRadiusOpenHemBendIssue.ExpectedRadiusToSheetThicknessRatio ( )

inline

Returns expected open hem bend radius to sheet thickness ratio.

See also

SetExpectedRadiusToSheetThicknessRatio(), DFMSheetMetal_AnalyzerParameters.ExpectedRadiusToSheetThicknessRatio()

SetExpectedRadiusToSheetThicknessRatio()

void cadex.DFMSheetMetal_IrregularRadiusOpenHemBendIssue.SetExpectedRadiusToSheetThicknessRatio ( double theRatio )

inline

Sets expected open hem bend radius to sheet thickness ratio.

theRatio should be greater than zero.

See also

ExpectedRadiusToSheetThicknessRatio()
