cadex.DFMSheetMetal_NonStandardSheetSizeIssue Class Reference

Describes non standard sheet size issue found during sheet metal design analysis. More...

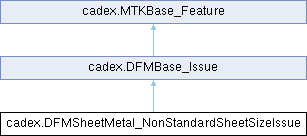

Inheritance diagram for cadex.DFMSheetMetal_NonStandardSheetSizeIssue:

Public Member Functions
	DFMSheetMetal_NonStandardSheetSizeIssue (global::System.IntPtr cPtr, bool cMemoryOwn)
	DFMSheetMetal_NonStandardSheetSizeIssue ()
	Constructor.
	DFMSheetMetal_NonStandardSheetSizeIssue (cadex.DFMSheetMetal_SheetSize theActualSheetSize)
	Creates an issue with specified actual sheet size.
cadex.DFMSheetMetal_SheetSize	NearestStandardSheetSize ()
	Returns the nearest standard sheet size.
void	SetNearestStandardSheetSize (cadex.DFMSheetMetal_SheetSize theSheetSize)
	Sets the nearest standard sheet size.
cadex.DFMSheetMetal_SheetSize	ActualSheetSize ()
	Returns the actual sheet size.
void	SetActualSheetSize (cadex.DFMSheetMetal_SheetSize theSheetSize)
	Sets the actual sheet size.
Public Member Functions inherited from cadex.DFMBase_Issue
	DFMBase_Issue (global::System.IntPtr cPtr, bool cMemoryOwn)
Public Member Functions inherited from cadex.MTKBase_Feature
	MTKBase_Feature (global::System.IntPtr cPtr, bool cMemoryOwn)
void	Dispose ()
	MTKBase_Feature ()
	Constructor.
void	Nullify ()
	Resets reference to implementation object.
bool	IsNull ()
	Returns true if the object is nullified.
bool	IsEqual (cadex.MTKBase_Feature theObject)
bool	IsNotEqual (cadex.MTKBase_Feature theObject)

Static Public Member Functions
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is a non standard sheet thickness issue.
static new cadex.DFMSheetMetal_NonStandardSheetSizeIssue	Cast (cadex.MTKBase_Feature theBase)
Static Public Member Functions inherited from cadex.DFMBase_Issue
static bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a DFM issue.
static cadex.DFMBase_Issue	Cast (cadex.MTKBase_Feature theBase)

Protected Member Functions
override void	Dispose (bool disposing)

Detailed Description

Describes non standard sheet size issue found during sheet metal design analysis.

The non-standard flat pattern sheet size issue refers to situations where the flat pattern sheet size required for a particular design is not readily available from standard sheet sizes. This can be a problem because the non-standard sheet size may be more expensive or harder to find than the standard sizes.

Contains non standard flat pattern sheet size and the standard size closest to it.

See also

DFMSheetMetal_Analyzer, DFMSheetMetal_AnalyzerParameters.SheetSizeStandardSizeParameters()

Examples

MTKConverter/Program.cs, MTKConverter/main.cxx, sheet_metal/dfm_analyzer/Program.cs, and sheet_metal/dfm_analyzer/main.cxx.

Constructor & Destructor Documentation

DFMSheetMetal_NonStandardSheetSizeIssue() [1/2]

cadex.DFMSheetMetal_NonStandardSheetSizeIssue.DFMSheetMetal_NonStandardSheetSizeIssue ( )

inline

Constructor.

DFMSheetMetal_NonStandardSheetSizeIssue() [2/2]

cadex.DFMSheetMetal_NonStandardSheetSizeIssue.DFMSheetMetal_NonStandardSheetSizeIssue ( cadex.DFMSheetMetal_SheetSize theActualSheetSize )

inline

Creates an issue with specified actual sheet size.

Constructor.

Member Function Documentation

ActualSheetSize()

cadex.DFMSheetMetal_SheetSize cadex.DFMSheetMetal_NonStandardSheetSizeIssue.ActualSheetSize ( )

inline

Returns the actual sheet size.

See also

SetActualSheetSize()

Examples

sheet_metal/dfm_analyzer/Program.cs.

CompareType()

static new bool cadex.DFMSheetMetal_NonStandardSheetSizeIssue.CompareType ( cadex.MTKBase_Feature theFeature )

inlinestatic

Returns true if theFeature is a non standard sheet thickness issue.

Examples

MTKConverter/Program.cs, and sheet_metal/dfm_analyzer/Program.cs.

Dispose()

override void cadex.DFMSheetMetal_NonStandardSheetSizeIssue.Dispose ( bool disposing )

inlineprotectedvirtual

Reimplemented from cadex.DFMBase_Issue.

NearestStandardSheetSize()

cadex.DFMSheetMetal_SheetSize cadex.DFMSheetMetal_NonStandardSheetSizeIssue.NearestStandardSheetSize ( )

inline

Returns the nearest standard sheet size.

See also

SetNearestStandardSheetSize(), DFMSheetMetal_AnalyzerParameters.SheetSizeStandardSizeParameters()

Examples

sheet_metal/dfm_analyzer/Program.cs, and sheet_metal/dfm_analyzer/main.cxx.

SetActualSheetSize()

void cadex.DFMSheetMetal_NonStandardSheetSizeIssue.SetActualSheetSize ( cadex.DFMSheetMetal_SheetSize theSheetSize )

inline

Sets the actual sheet size.

See also

ActualSheetSize()

SetNearestStandardSheetSize()

void cadex.DFMSheetMetal_NonStandardSheetSizeIssue.SetNearestStandardSheetSize ( cadex.DFMSheetMetal_SheetSize theSheetSize )

inline

Sets the nearest standard sheet size.

See also

NearestStandardSheetSize()
