cadex.DFMSheetMetal_SmallDistanceBetweenHoleAndLouverIssue Class Reference

Describes small distance between hole and louver issues found during sheet metal design analysis. More...

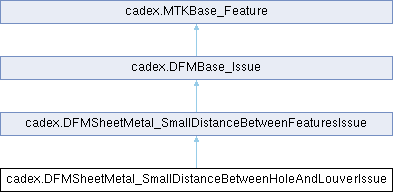

Inheritance diagram for cadex.DFMSheetMetal_SmallDistanceBetweenHoleAndLouverIssue:

Public Member Functions
	DFMSheetMetal_SmallDistanceBetweenHoleAndLouverIssue (global::System.IntPtr cPtr, bool cMemoryOwn)
	DFMSheetMetal_SmallDistanceBetweenHoleAndLouverIssue ()
	Constructor.
	DFMSheetMetal_SmallDistanceBetweenHoleAndLouverIssue (cadex.SheetMetal_Hole theHole, cadex.SheetMetal_Louver theLouver)
	Constructor.
cadex.SheetMetal_Hole	Hole ()
void	SetHole (cadex.SheetMetal_Hole theHole)
cadex.SheetMetal_Louver	Louver ()
void	SetLouver (cadex.SheetMetal_Louver theLouver)
Public Member Functions inherited from cadex.DFMSheetMetal_SmallDistanceBetweenFeaturesIssue
	DFMSheetMetal_SmallDistanceBetweenFeaturesIssue (global::System.IntPtr cPtr, bool cMemoryOwn)
double	ExpectedMinDistanceBetweenFeaturesToSheetThicknessRatio ()
void	SetExpectedMinDistanceBetweenFeaturesToSheetThicknessRatio (double theRatio)
double	ExpectedMinDistanceBetweenFeatures ()
double	ActualDistanceBetweenFeatures ()
void	SetActualDistanceBetweenFeatures (double theDistance)
double	ActualSheetThickness ()
void	SetActualSheetThickness (double theThickness)
Public Member Functions inherited from cadex.DFMBase_Issue
	DFMBase_Issue (global::System.IntPtr cPtr, bool cMemoryOwn)
Public Member Functions inherited from cadex.MTKBase_Feature
	MTKBase_Feature (global::System.IntPtr cPtr, bool cMemoryOwn)
void	Dispose ()
	MTKBase_Feature ()
	Constructor.
void	Nullify ()
bool	IsNull ()
bool	IsEqual (cadex.MTKBase_Feature theObject)
bool	IsNotEqual (cadex.MTKBase_Feature theObject)

Static Public Member Functions
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is a small distance between hole and louver issue.
static new cadex.DFMSheetMetal_SmallDistanceBetweenHoleAndLouverIssue	Cast (cadex.MTKBase_Feature theBase)
Static Public Member Functions inherited from cadex.DFMSheetMetal_SmallDistanceBetweenFeaturesIssue
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a DFM sheet metal small distance issue.
static new cadex.DFMSheetMetal_SmallDistanceBetweenFeaturesIssue	Cast (cadex.MTKBase_Feature theBase)
Static Public Member Functions inherited from cadex.DFMBase_Issue
static bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a DFM issue.
static cadex.DFMBase_Issue	Cast (cadex.MTKBase_Feature theBase)

Protected Member Functions
override void	Dispose (bool disposing)

Detailed Description

Describes small distance between hole and louver issues found during sheet metal design analysis.

When a hole is drilled too close to the edge of a louver, it can cause manufacturing difficulties, compromise structural integrity, restrict airflow, and result in aesthetic concerns.

Contains simple hole and louver, distance between which fails the following condition:

\[ \large Dist \geq T \times Rt \]

\[ \begin{aligned} & \small Dist - \text{actual distance between hole and louver} \\ & \small T - \text{actual thickness} \\ & \small Rt - \text{expected minimum distance between hole and louver to sheet thickness ratio} \end{aligned} \]

See also

DFMSheetMetal_Analyzer, DFMSheetMetal_AnalyzerParameters.MinDistanceBetweenHoleAndLouverToSheetThicknessRatio(), SheetMetal_Hole, SheetMetal_Louver

Examples

sheet_metal/dfm_analyzer/Program.cs, and sheet_metal/dfm_analyzer/main.cxx.

Constructor & Destructor Documentation

DFMSheetMetal_SmallDistanceBetweenHoleAndLouverIssue()

cadex.DFMSheetMetal_SmallDistanceBetweenHoleAndLouverIssue.DFMSheetMetal_SmallDistanceBetweenHoleAndLouverIssue ( cadex.SheetMetal_Hole theHole, cadex.SheetMetal_Louver theLouver )

inline

Constructor.

Creates a small distance between between hole and louver issue from SheetMetal_Hole and SheetMetal_Louver objects.

Member Function Documentation

Dispose()

override void cadex.DFMSheetMetal_SmallDistanceBetweenHoleAndLouverIssue.Dispose ( bool disposing )

inlineprotectedvirtual

Reimplemented from cadex.DFMSheetMetal_SmallDistanceBetweenFeaturesIssue.

Hole()

cadex.SheetMetal_Hole cadex.DFMSheetMetal_SmallDistanceBetweenHoleAndLouverIssue.Hole ( )

inline

Returns the problematic sheet metal hole.

See also

SetHole()

Louver()

cadex.SheetMetal_Louver cadex.DFMSheetMetal_SmallDistanceBetweenHoleAndLouverIssue.Louver ( )

inline

Returns the problematic sheet metal louver.

See also

SetLouver()

SetHole()

void cadex.DFMSheetMetal_SmallDistanceBetweenHoleAndLouverIssue.SetHole ( cadex.SheetMetal_Hole theHole )

inline

Sets the problematic sheet metal hole.

See also

Hole()

SetLouver()

void cadex.DFMSheetMetal_SmallDistanceBetweenHoleAndLouverIssue.SetLouver ( cadex.SheetMetal_Louver theLouver )

inline

Sets the problematic sheet metal louver.

See also

Louver()
