cadex.DFMSheetMetal_SmallDistanceBetweenHoleAndNotchIssue Class Reference

Describes small distance detween hole and notch issues found during sheet metal design analysis. More...

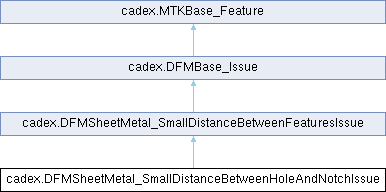

Inheritance diagram for cadex.DFMSheetMetal_SmallDistanceBetweenHoleAndNotchIssue:

Public Member Functions
	DFMSheetMetal_SmallDistanceBetweenHoleAndNotchIssue (global::System.IntPtr cPtr, bool cMemoryOwn)
	DFMSheetMetal_SmallDistanceBetweenHoleAndNotchIssue ()
	Constructor.
	DFMSheetMetal_SmallDistanceBetweenHoleAndNotchIssue (cadex.SheetMetal_Hole theHole, cadex.SheetMetal_Notch theNotch)
	Creates a small distance between holes issues from SheetMetal_Hole and SheetMetal_Notch objects.
cadex.SheetMetal_Hole	Hole ()
	Returns the problematic sheet metal hole.
void	SetHole (cadex.SheetMetal_Hole theHole)
	Sets the problematic sheet metal hole.
cadex.SheetMetal_Notch	Notch ()
	Returns the problematic sheet metal notch.
void	SetNotch (cadex.SheetMetal_Notch theNotch)
	Sets the problematic sheet metal notch.
Public Member Functions inherited from cadex.DFMSheetMetal_SmallDistanceBetweenFeaturesIssue
	DFMSheetMetal_SmallDistanceBetweenFeaturesIssue (global::System.IntPtr cPtr, bool cMemoryOwn)
double	ExpectedMinDistanceBetweenFeaturesToSheetThicknessRatio ()
	Returns expected minimum distance between features to sheet thickness ratio.
void	SetExpectedMinDistanceBetweenFeaturesToSheetThicknessRatio (double theRatio)
	Sets expected distance between features to sheet thickness ratio.
double	ExpectedMinDistanceBetweenFeatures ()
	Returns expected minimum distance between features in mm .
double	ActualDistanceBetweenFeatures ()
	Returns the actual distance between features in mm .
void	SetActualDistanceBetweenFeatures (double theDistance)
	Sets the actual distance between features in mm.
double	ActualSheetThickness ()
	Returns the actual sheet thickness of analyzed part in mm .
void	SetActualSheetThickness (double theThickness)
	Sets the actual sheet thickness in mm.
Public Member Functions inherited from cadex.DFMBase_Issue
	DFMBase_Issue (global::System.IntPtr cPtr, bool cMemoryOwn)
Public Member Functions inherited from cadex.MTKBase_Feature
	MTKBase_Feature (global::System.IntPtr cPtr, bool cMemoryOwn)
void	Dispose ()
	MTKBase_Feature ()
	Constructor.
void	Nullify ()
	Resets reference to implementation object.
bool	IsNull ()
	Returns true if the object is nullified.
bool	IsEqual (cadex.MTKBase_Feature theObject)
bool	IsNotEqual (cadex.MTKBase_Feature theObject)

Static Public Member Functions
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is a small distance between hole and notch issue.
static new cadex.DFMSheetMetal_SmallDistanceBetweenHoleAndNotchIssue	Cast (cadex.MTKBase_Feature theBase)
Static Public Member Functions inherited from cadex.DFMSheetMetal_SmallDistanceBetweenFeaturesIssue
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a DFM sheet metal small distance issue.
static new cadex.DFMSheetMetal_SmallDistanceBetweenFeaturesIssue	Cast (cadex.MTKBase_Feature theBase)
Static Public Member Functions inherited from cadex.DFMBase_Issue
static bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a DFM issue.
static cadex.DFMBase_Issue	Cast (cadex.MTKBase_Feature theBase)

Protected Member Functions
override void	Dispose (bool disposing)

Detailed Description

Describes small distance detween hole and notch issues found during sheet metal design analysis.

When a hole and notch are placed too close together, it can cause the surrounding metal to weaken and potentially crack, leading to structural issues or failure. This is particularly important in applications where the sheet metal will be subjected to high levels of stress or strain, such as in load-bearing structures or in parts that will be exposed to vibration or other types of mechanical stress.

Contains simple hole and notch, distance between which fails the following condition:

\[ \large Dist \geq T \times Rt \]

\[ \begin{aligned} & \small Dist - \text{actual distance between hole and notch} \\ & \small T - \text{actual thickness} \\ & \small Rt - \text{expected minimum distance between hole and notch to sheet thickness ratio} \end{aligned} \]

Note

This issue can contain only SheetMetal_Hole objects and NOT SheetMetal_ComplexHole. Because small distance between hole and notch analysis carried out only for simple holes (SheetMetal_Hole).

See also

DFMSheetMetal_Analyzer, DFMSheetMetal_AnalyzerParameters.MinDistanceBetweenHoleAndNotchToThicknessRatio(), SheetMetal_Hole, SheetMetal_Notch

Examples

sheet_metal/dfm_analyzer/Program.cs, and sheet_metal/dfm_analyzer/main.cxx.

Constructor & Destructor Documentation

DFMSheetMetal_SmallDistanceBetweenHoleAndNotchIssue() [1/2]

cadex.DFMSheetMetal_SmallDistanceBetweenHoleAndNotchIssue.DFMSheetMetal_SmallDistanceBetweenHoleAndNotchIssue ( )

inline

Constructor.

DFMSheetMetal_SmallDistanceBetweenHoleAndNotchIssue() [2/2]

cadex.DFMSheetMetal_SmallDistanceBetweenHoleAndNotchIssue.DFMSheetMetal_SmallDistanceBetweenHoleAndNotchIssue ( cadex.SheetMetal_Hole theHole, cadex.SheetMetal_Notch theNotch )

inline

Creates a small distance between holes issues from SheetMetal_Hole and SheetMetal_Notch objects.

Constructor.

Member Function Documentation

CompareType()

static new bool cadex.DFMSheetMetal_SmallDistanceBetweenHoleAndNotchIssue.CompareType ( cadex.MTKBase_Feature theFeature )

inlinestatic

Returns true if theFeature is a small distance between hole and notch issue.

Examples

sheet_metal/dfm_analyzer/Program.cs.

Dispose()

override void cadex.DFMSheetMetal_SmallDistanceBetweenHoleAndNotchIssue.Dispose ( bool disposing )

inlineprotectedvirtual

Reimplemented from cadex.DFMSheetMetal_SmallDistanceBetweenFeaturesIssue.

Hole()

cadex.SheetMetal_Hole cadex.DFMSheetMetal_SmallDistanceBetweenHoleAndNotchIssue.Hole ( )

inline

Returns the problematic sheet metal hole.

See also

SetHole()

Notch()

cadex.SheetMetal_Notch cadex.DFMSheetMetal_SmallDistanceBetweenHoleAndNotchIssue.Notch ( )

inline

Returns the problematic sheet metal notch.

See also

SetNotch()

SetHole()

void cadex.DFMSheetMetal_SmallDistanceBetweenHoleAndNotchIssue.SetHole ( cadex.SheetMetal_Hole theHole )

inline

Sets the problematic sheet metal hole.

See also

Hole()

SetNotch()

void cadex.DFMSheetMetal_SmallDistanceBetweenHoleAndNotchIssue.SetNotch ( cadex.SheetMetal_Notch theNotch )

inline

Sets the problematic sheet metal notch.

See also

Notch()
