Thumbnail Generation Example

Table of Contents

• Overview
• Implementation
• Files

Demonstrates how to generate and save an image of a model.

Overview

In this example we create a View.ImageWriter object which allows us to generate and save an image of ModelData.Model .

Implementation

The main function will have the following structure:

• Read a model file and transfer its data to a ModelData.Model object:

Model aModel = new Model();

// Opening and converting the file
if (!new ModelReader().Read(new UTF16String(aSource), aModel))
{
    Console.WriteLine("Failed to read the file " + aSource);
    return 1;
}

• Create an View.ImageWriter and set some parameters:

ImageWriter aWriter = new ImageWriter();
ImageWriterParameters aWriterParameters = new ImageWriterParameters();

// Set writer parameters
aWriterParameters.SetImageWidth(1280);
aWriterParameters.SetImageHeight(720);
aWriterParameters.SetViewIsFitAll(true);
var aBackground = new ColorBackgroundStyle(new Color(255, 255, 255));
aWriterParameters.SetViewBackground(aBackground);

aWriter.SetParameters(aWriterParameters);

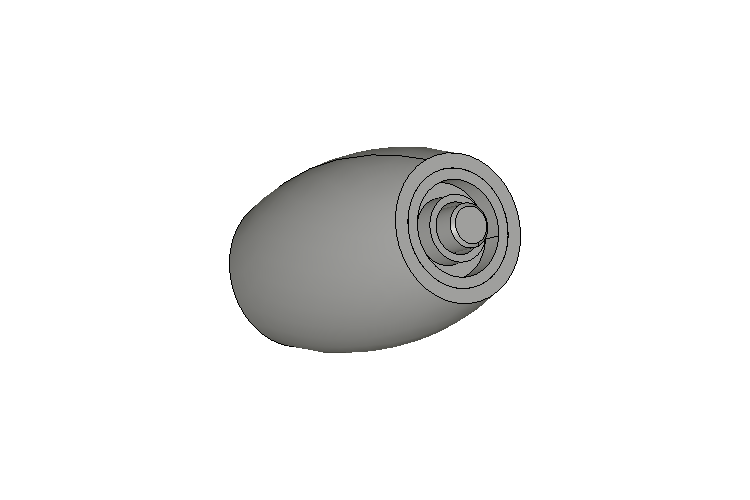

• Generate an image of a model and save it into a file:

// Generate the model image and save it into the file
if (!aWriter.WriteFile(aModel, new UTF16String(aDest)))
{
    Console.WriteLine("Failed to write the file " + aDest);
    return 1;
}

Files

• C++: ./examples/cxx/utilities/thumbnail_generation/main.cxx
• C#: ./examples/csharp/utilities/thumbnail_generation/Program.cs
• Java: ./examples/java/utilities/thumbnail_generation/thumbnail_generation.java
• Python: ./examples/python/utilities/thumbnail_generation/thumbnail_generation.py
