cadex::DFMMachining_SmallDistanceBetweenThreadedHoleAndEdgeIssue Class Reference

Describes small distance between threaded hole and edge issue found during CNC Machining drilling design analysis. More...

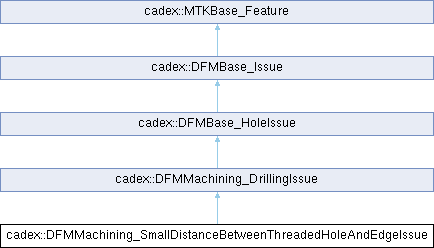

Inheritance diagram for cadex::DFMMachining_SmallDistanceBetweenThreadedHoleAndEdgeIssue:

Public Member Functions
	DFMMachining_SmallDistanceBetweenThreadedHoleAndEdgeIssue ()
	Constructor.
	DFMMachining_SmallDistanceBetweenThreadedHoleAndEdgeIssue (const Machining_ThreadedHole &theHole)
	Constructor.
double	ExpectedMinDistanceToDiameterRatio () const
	Returns the expected distance to diameter ratio.
void	SetExpectedMinDistanceToDiameterRatio (double theRatio)
	Sets the expected distance to diameter ratio.
double	ExpectedMinDistance () const
	Returns the expected minimum distance in mm .
double	ActualDistance () const
	Returns the actual hole distance in mm .
void	SetActualDistance (double theDistance)
	Sets the actual hole distance in mm .
ModelData::Edge	Edge () const
	Returns the problematic edge.
void	SetEdge (const ModelData::Edge &theEdge)
	Sets the problematic edge.
Public Member Functions inherited from cadex::DFMMachining_DrillingIssue
Machining_Hole	MachiningHole () const
	Returns the problematic machining hole.
Public Member Functions inherited from cadex::DFMBase_HoleIssue
const MTKBase_Hole &	Hole () const
	Returns the problematic hole.
void	SetHole (const MTKBase_Hole &theHole)
	Sets the problematic hole.
Public Member Functions inherited from cadex::MTKBase_Feature
	MTKBase_Feature ()
	Constructor.
	~MTKBase_Feature ()
	Destructor.
void	Nullify ()
	Resets reference to implementation object.
bool	IsNull () const
	Returns true if the object is nullified.
	operator bool () const
	Casts the object to the bool type.
template<typename T >
bool	IsOfType () const
ImplType *	Impl () const
template<typename T >
T *	Impl () const
	Reserved for internal use.
bool	operator== (const MTKBase_Feature &theObject) const
bool	operator!= (const MTKBase_Feature &theObject) const

Static Public Member Functions
static bool	CompareType (const MTKBase_Feature &theFeature)
	Returns true if theFeature is a DFM machining deep hole issue.
Static Public Member Functions inherited from cadex::DFMMachining_DrillingIssue
static bool	CompareType (const MTKBase_Feature &theFeature)
	Returns true if theFeature is a DFM machining drilling issue.
Static Public Member Functions inherited from cadex::DFMBase_HoleIssue
static bool	CompareType (const MTKBase_Feature &theFeature)
	Returnstrue if theFeature is a DFM hole issue.
Static Public Member Functions inherited from cadex::DFMBase_Issue
static bool	CompareType (const MTKBase_Feature &theFeature)
	Returnstrue if theFeature is a DFM issue.

Additional Inherited Members
Public Types inherited from cadex::DFMMachining_DrillingIssue
typedef cadex::internal::DFMMachiningImpl_DrillingIssue	ImplType
typedef std::shared_ptr< ImplType >	ImplPtrType
Public Types inherited from cadex::DFMBase_HoleIssue
typedef cadex::internal::DFMBaseImpl_HoleIssue	ImplType
typedef std::shared_ptr< ImplType >	ImplPtrType
Public Types inherited from cadex::DFMBase_Issue
typedef cadex::internal::DFMBaseImpl_Issue	ImplType
typedef std::shared_ptr< ImplType >	ImplPtrType
Public Types inherited from cadex::MTKBase_Feature
typedef cadex::internal::MTKBaseImpl_Feature	ImplType
typedef std::shared_ptr< ImplType >	ImplPtrType
Protected Member Functions inherited from cadex::DFMMachining_DrillingIssue
	DFMMachining_DrillingIssue (ImplPtrType theImpl)
	Reserved for internal use.
Protected Member Functions inherited from cadex::DFMBase_HoleIssue
	DFMBase_HoleIssue (ImplPtrType theImpl)
	Reserved for internal use.
Protected Member Functions inherited from cadex::DFMBase_Issue
	DFMBase_Issue (ImplPtrType theImpl)
	Reserved for internal use.
Protected Member Functions inherited from cadex::MTKBase_Feature
	MTKBase_Feature (ImplPtrType theImpl)
	Reserved for internal use.
Protected Attributes inherited from cadex::MTKBase_Feature
ImplPtrType	myImpl

Detailed Description

Describes small distance between threaded hole and edge issue found during CNC Machining drilling design analysis.

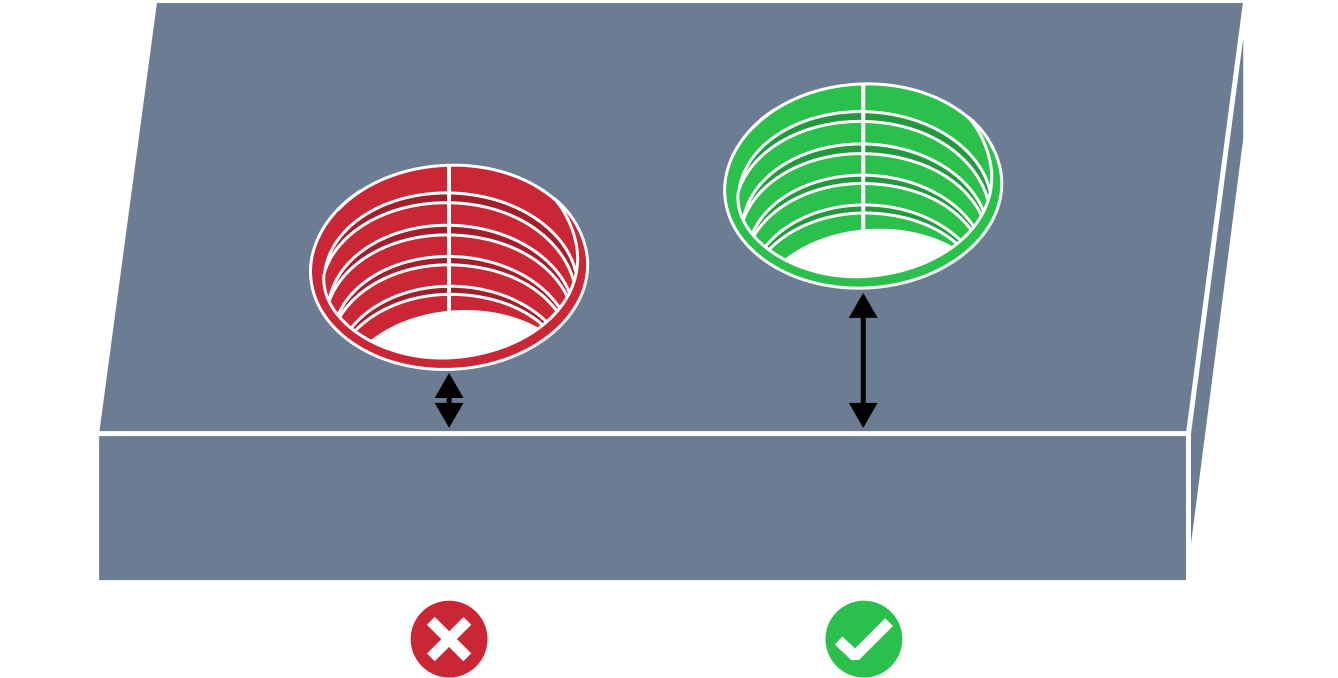

A thread edge distance issue occurs when a tapped hole is positioned too close to the edge of a part. Insufficient wall thickness around the thread reduces the strength of the connection and can cause stripping of threads during torque application or vibration during the tapping process. If threads strip or deform, additional rework such as retapping may be required, which significantly increases manufacturing time and cost. In practical cases, retap labor can add up to approximately +100% of the feature cost.

Contains threaded hole and edge that fail the following condition:

\[ \large Dist \leq Dia_h * Rt \]

\[ \begin{aligned} & \small Dist - \text{actual distance from threaded hole to edge} \\ & \small Dia_h - \text{actual threaded hole major diameter} \\ & \small Rt - \text{expected maximum distance to diameter ratio} \end{aligned} \]

See also

DFMMachining_Analyzer, DFMMachining_DrillingAnalyzerParameters.MinDistanceBetweenThreadedHoleAndEdgeToDaimeterRatio()

Examples

machining/dfm_analyzer/Program.cs, and machining/dfm_analyzer/main.cxx.

Constructor & Destructor Documentation

DFMMachining_SmallDistanceBetweenThreadedHoleAndEdgeIssue() [1/2]

cadex::DFMMachining_SmallDistanceBetweenThreadedHoleAndEdgeIssue::DFMMachining_SmallDistanceBetweenThreadedHoleAndEdgeIssue

(

)

Constructor.

DFMMachining_SmallDistanceBetweenThreadedHoleAndEdgeIssue() [2/2]

cadex::DFMMachining_SmallDistanceBetweenThreadedHoleAndEdgeIssue::DFMMachining_SmallDistanceBetweenThreadedHoleAndEdgeIssue

(

const Machining_ThreadedHole &

theHole

)

Constructor.

Creates an issue from the Machining_Hole object.

Member Function Documentation

ActualDistance()

double cadex::DFMMachining_SmallDistanceBetweenThreadedHoleAndEdgeIssue::ActualDistance

(

)

const

Returns the actual hole distance in mm .

CompareType()

bool cadex::DFMMachining_SmallDistanceBetweenThreadedHoleAndEdgeIssue::CompareType ( const MTKBase_Feature & theFeature )

static

Returns true if theFeature is a DFM machining deep hole issue.

Examples

machining/dfm_analyzer/Program.cs.

Edge()

ModelData::Edge cadex::DFMMachining_SmallDistanceBetweenThreadedHoleAndEdgeIssue::Edge

(

)

const

Returns the problematic edge.

ExpectedMinDistance()

double cadex::DFMMachining_SmallDistanceBetweenThreadedHoleAndEdgeIssue::ExpectedMinDistance

(

)

const

Returns the expected minimum distance in mm .

\[ \large Dist_e = Dia_h * Rt \]

\[ \begin{aligned} & \small Dist_e - \text{distance from threaded hole to edge} \\ & \small Dia_p - \text{actual threaded hole major diameter} \\ & \small Rt - \text{expected maximum distance to diameter ratio} \end{aligned} \]

See also

ExpectedMinDistanceToDiameterRatio(), Hole()

ExpectedMinDistanceToDiameterRatio()

double cadex::DFMMachining_SmallDistanceBetweenThreadedHoleAndEdgeIssue::ExpectedMinDistanceToDiameterRatio

(

)

const

Returns the expected distance to diameter ratio.

See also

SetExpectedMinDistanceToDiameterRatio(), DFMMachining_DrillingAnalyzerParameters.MinDistanceBetweenThreadedHoleAndEdgeToDaimeterRatio()

SetActualDistance()

void cadex::DFMMachining_SmallDistanceBetweenThreadedHoleAndEdgeIssue::SetActualDistance

(

double

theDistance

)

Sets the actual hole distance in mm .

SetEdge()

void cadex::DFMMachining_SmallDistanceBetweenThreadedHoleAndEdgeIssue::SetEdge

(

const ModelData::Edge &

theEdge

)

Sets the problematic edge.

SetExpectedMinDistanceToDiameterRatio()

void cadex::DFMMachining_SmallDistanceBetweenThreadedHoleAndEdgeIssue::SetExpectedMinDistanceToDiameterRatio

(

double

theRatio

)

Sets the expected distance to diameter ratio.

theRatio should be greater than zero.

See also

ExpectedMinDistanceToDiameterRatio()
