Linear dimensions with horizontal, vertical, and aligned dimension lines. More...

#include <cadex/Drawing/Dimension.hxx>

Inheritance diagram for cadex::Drawing::LinearDimension:

Public Types
enum class	RotationType { Horizontal , Vertical , Aligned }

Public Types inherited from cadex::Drawing::Dimension
enum class	ArrowType { Undefined = 0 , ClosedFilled = 1 , ClosedBlank = 2 , Closed = 3 , Dot = 4 , ArchitecturalTick = 5 , Oblique = 6 , Open = 7 , OriginIndicator = 8 , OriginIndicator2 = 9 , RightAngle = 10 , Open30 = 11 , DotSmall = 12 , DotBlank = 13 , DotSmallBlank = 14 , Box = 15 , BoxFilled = 16 , DatumTriangle = 17 , DatumTriangleFilled = 18 , Integral = 19 }
	the arrow type. More...

enum class	ArrowheadPlacementType { Internal , External }

Public Types inherited from cadex::BaseObject
typedef std::shared_ptr< internal::BaseObjectImpl >	ImplType

Public Member Functions
	LinearDimension ()
	Constructor.

	LinearDimension (const Geom::Point2d &theFirstReferencePoint, const Geom::Point2d &theSecondReferencePoint, const Geom::Point2d &theDimensionLinePoint, double theMeasurementValue, RotationType theRotation=RotationType::Horizontal)
	Constructor.

const Geom::Point2d &	FirstReferencePoint () const
	Returns the first reference point.

void	SetFirstReferencePoint (const Geom::Point2d &theFirstReferencePoint)
	Sets the first reference point.

const Geom::Point2d &	SecondReferencePoint () const
	Returns the second reference point.

void	SetSecondReferencePoint (const Geom::Point2d &theSecondReferencePoint)
	Sets the second reference point.

const Geom::Point2d &	DimensionLinePoint () const
	Returns the dimension line point.

void	SetDimensionLinePoint (const Geom::Point2d &theDimensionLinePoint)
	Sets the dimension line point.

RotationType	Rotation () const
	Returns the rotation of the dimension.

void	SetRotation (RotationType theRotation)
	Sets the rotation of the dimension.

Public Member Functions inherited from cadex::Drawing::Dimension
ArrowType	FirstArrowType () const
	Returns type of the first arrow of dimension.

void	SetFirstArrowType (ArrowType theFirstArrowType)
	Sets type of the first arrow of dimension.

ArrowType	SecondArrowType () const
	Returns type of the second arrow of dimension.

void	SetSecondArrowType (ArrowType theSecondArrowType)
	Sets type of the second arrow of dimension.

ArrowheadPlacementType	ArrowheadPlacement () const
	Returns the arrowhead placement.

void	SetArrowheadPlacement (ArrowheadPlacementType theArrowheadPlacement)
	Sets the arrowhead placement.

bool	AlignTextHorizontally () const
	Returns true if the measurement text is align horizontally.

void	SetAlignTextHorizontally (bool theAlignTextHorizontally)

double	MeasurementValue () const
	Returns the actual measurement.

void	SetMeasurementValue (double theMeasurementValue)
	Sets the actual measurement.

cadex::Drawing::Text	Text () const
	Returns the dimension text.

void	SetText (const cadex::Drawing::Text &theText)
	Sets the dimension text.

Public Member Functions inherited from cadex::Drawing::Element
void	SetUuid (const Uuid &theUuid)

cadex::Uuid	Uuid () const

void	Accept (ElementVisitor &theVisitor) const

Public Member Functions inherited from cadex::BaseObject
size_t	Id () const
	Return unique identifier of public object.

internal::BaseObjectImpl *	Impl () const

bool	IsNull () const

	operator bool () const

template<typename T >
bool	IsOfType () const

template<typename T >
T *	Impl () const
	Reserved for internal use.

Static Public Member Functions
static bool	CompareType (const BaseObject &theObject)

Static Public Member Functions inherited from cadex::Drawing::Dimension
static bool	CompareType (const BaseObject &theObject)

Static Public Member Functions inherited from cadex::Drawing::Element
static bool	CompareType (const BaseObject &theObject)

Additional Inherited Members
Protected Member Functions inherited from cadex::Drawing::Dimension
	Dimension (const ImplType &theImpl)

Protected Member Functions inherited from cadex::Drawing::Element
	Element (const ImplType &theImpl)

Protected Member Functions inherited from cadex::BaseObject
	BaseObject (const ImplType &theImpl)

Detailed Description

Linear dimensions with horizontal, vertical, and aligned dimension lines.

Horizontal linear dimension describes the distance between two points along OX axis.

Example of horizontal linear dimension

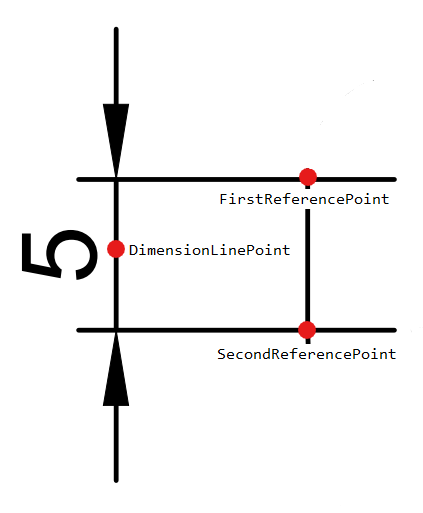

Vertical linear dimension describes the distance between two points along OY axis.

Example of vertical linear dimension

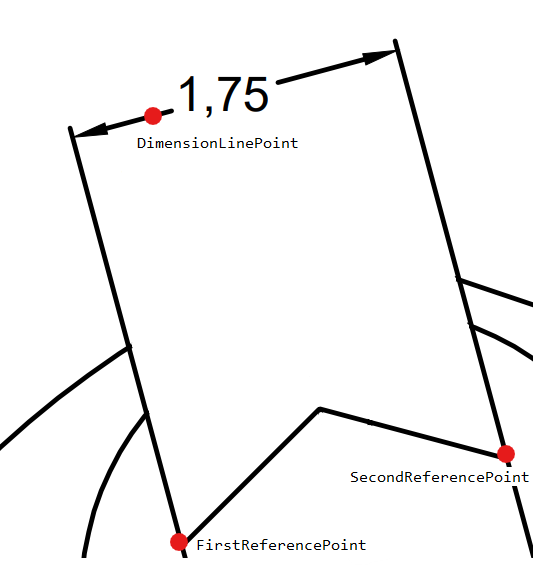

Aligned linear dimension describes the distance between two points.

Example of aligned linear dimension

FirstReferencePoint and SecondReferencePoint refer to points on the drawing geometry that are being measured. Two parallel extension lines come out of these points. DimensionLinePoint defines the dimension line, which is perpendicular to both extension lines.

Member Enumeration Documentation

◆ RotationType

enum class cadex::Drawing::LinearDimension::RotationType

strong

Represents the rotation of linear dimension.

Member Function Documentation

◆ DimensionLinePoint()

const Geom::Point2d & cadex::Drawing::LinearDimension::DimensionLinePoint ( ) const

Returns the dimension line point.

Dimension line point specified the position of dimension line. It can be any point on the dimension line.

◆ Rotation()

LinearDimension::RotationType cadex::Drawing::LinearDimension::Rotation ( ) const

Returns the rotation of the dimension.

Rotation determines the type of linear dimention.
