The base class for the semantic attribute types. More...

#include <cadex/PMI/SemanticAttribute.hxx>

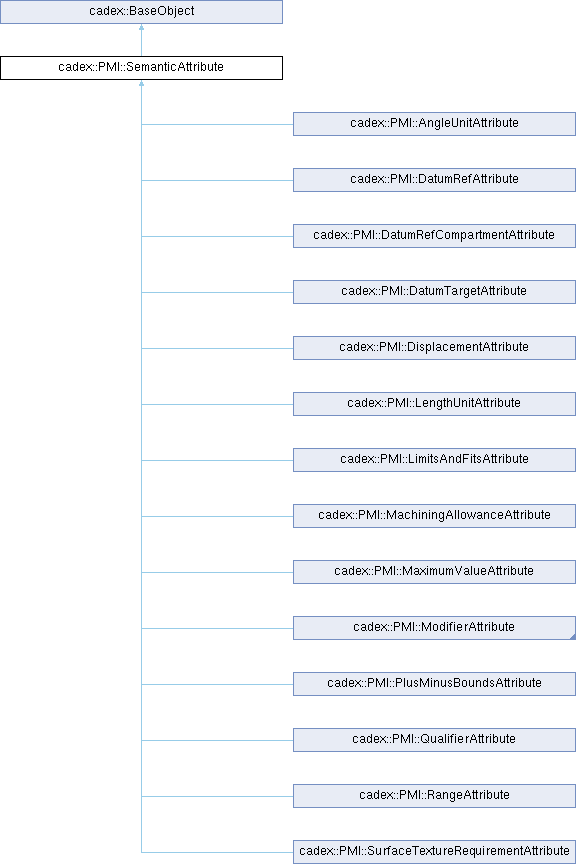

Inheritance diagram for cadex::PMI::SemanticAttribute:

Public Member Functions
void	Accept (SemanticAttributeVisitor &theVisitor) const

Public Member Functions inherited from cadex::BaseObject
size_t	Id () const
	Return unique identifier of public object.

internal::BaseObjectImpl *	Impl () const

bool	IsNull () const

	operator bool () const

template<typename T >
bool	IsOfType () const

template<typename T >
T *	Impl () const
	Reserved for internal use.

Static Public Member Functions
static bool	CompareType (const BaseObject &theObject)
	Returns true if theObject has the SemanticAttribute type.

Protected Member Functions
	SemanticAttribute (const ImplType &theImpl)

Protected Member Functions inherited from cadex::BaseObject
	BaseObject (const ImplType &theImpl)

Additional Inherited Members
Public Types inherited from cadex::BaseObject
typedef std::shared_ptr< internal::BaseObjectImpl >	ImplType

Detailed Description

The base class for the semantic attribute types.

The attributes store additional information about PMI semantic components.

Public Member Functions
