Describes a forming in sheet metal. More...

Inheritance diagram for cadex::SheetMetal_FormingFeature:

Public Types
typedef cadex::internal::SheetMetalImpl_FormingFeature	ImplType

typedef std::shared_ptr< ImplType >	ImplPtrType

Public Types inherited from cadex::MTKBase_ShapeFeature
typedef cadex::internal::MTKBaseImpl_ShapeFeature	ImplType

typedef std::shared_ptr< ImplType >	ImplPtrType

Public Types inherited from cadex::MTKBase_Feature
typedef cadex::internal::MTKBaseImpl_Feature	ImplType

typedef std::shared_ptr< ImplType >	ImplPtrType

Public Member Functions
	SheetMetal_FormingFeature ()
	Constructor.

	SheetMetal_FormingFeature (double theLength, double theDepth)
	Constructor.

double	Length () const

void	SetLength (double theLength)

double	Depth () const

void	SetDepth (double theDepth)

bool	HasAxis () const

const Geom::Axis1d &	Axis () const

void	SetAxis (const Geom::Axis1d &theAxis)

const ModelData::Shape &	Sidewalls () const

void	SetSidewalls (const ModelData::Shape &theSidewalls)

const ModelData::Shape &	Bottom () const

void	SetBottom (const ModelData::Shape &theBottom)

Public Member Functions inherited from cadex::MTKBase_ShapeFeature
	MTKBase_ShapeFeature ()
	Constructor.

	MTKBase_ShapeFeature (const ModelData::Shape &theShape)
	Constructor.

const ModelData::Shape &	Shape () const

void	SetShape (const ModelData::Shape &theShape)

Public Member Functions inherited from cadex::MTKBase_Feature
	MTKBase_Feature ()
	Constructor.

	~MTKBase_Feature ()
	Destructor.

void	Nullify ()

bool	IsNull () const

	operator bool () const
	Casts the object to the bool type.

template<typename T >
bool	IsOfType () const

ImplType *	Impl () const

template<typename T >
T *	Impl () const
	Reserved for internal use.

bool	operator== (const MTKBase_Feature &theObject) const

bool	operator!= (const MTKBase_Feature &theObject) const

Static Public Member Functions
static bool	CompareType (const MTKBase_Feature &theFeature)
	Returns true if theFeature is a forming feature.

Static Public Member Functions inherited from cadex::MTKBase_ShapeFeature
static bool	CompareType (const MTKBase_Feature &theFeature)
	Returnstrue if theFeature is a shape feature.

Protected Member Functions
	SheetMetal_FormingFeature (ImplPtrType theImpl)

Protected Member Functions inherited from cadex::MTKBase_ShapeFeature
	MTKBase_ShapeFeature (ImplPtrType theImpl)
	Reserved for internal use.

Protected Member Functions inherited from cadex::MTKBase_Feature
	MTKBase_Feature (ImplPtrType theImpl)
	Reserved for internal use.

Additional Inherited Members
Protected Attributes inherited from cadex::MTKBase_Feature
ImplPtrType	myImpl

Detailed Description

Describes a forming in sheet metal.

Forming plastically deforms sheet metal to create 3D features.

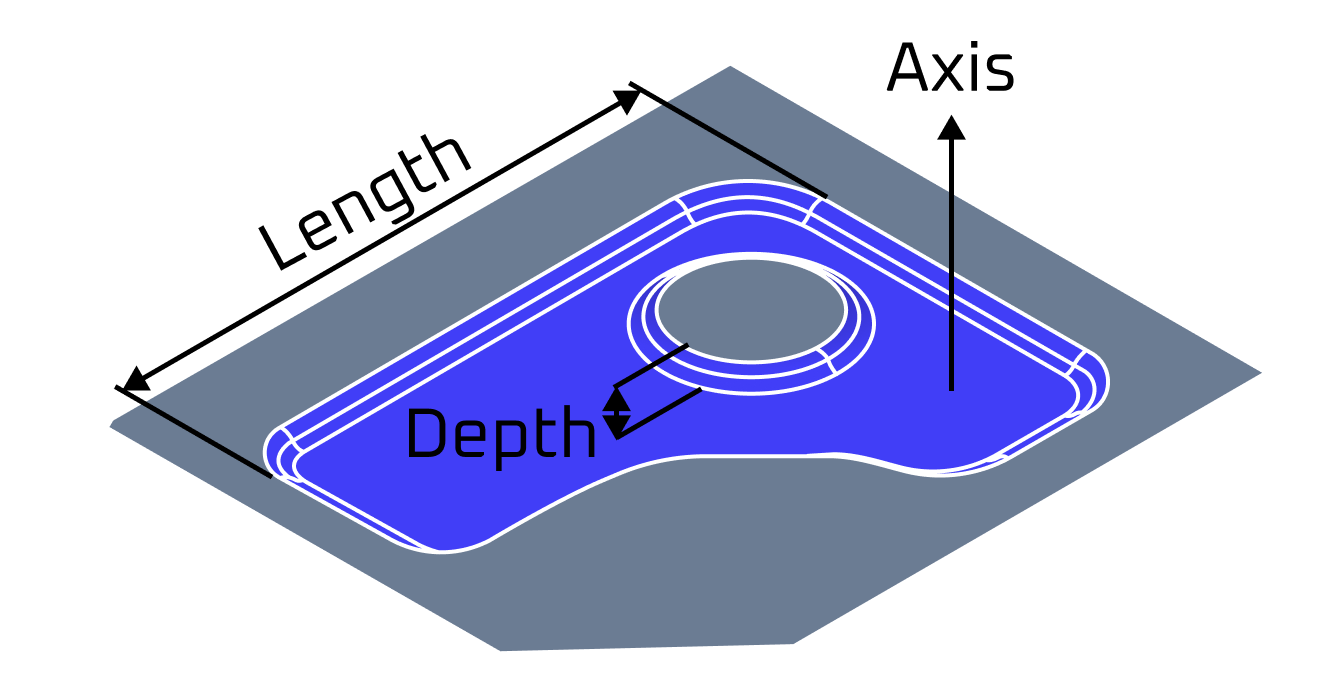

Forming

Examples: MTKConverter/Program.cs, MTKConverter/main.cxx, sheet_metal/feature_recognizer/Program.cs, and sheet_metal/feature_recognizer/main.cxx.

Constructor & Destructor Documentation

◆ SheetMetal_FormingFeature()

cadex::SheetMetal_FormingFeature::SheetMetal_FormingFeature	(	double	theLength,
		double	theDepth )

Constructor.

Creates a bend with specified radius, angle and width.

Member Function Documentation

◆ Axis()

const Geom::Axis1d & cadex::SheetMetal_FormingFeature::Axis ( ) const

Returns z-axis of a forming feature - the axis along which the depth is determined

See also: HasAxis(), SetAxis()

Examples: MTKConverter/Program.cs, sheet_metal/feature_recognizer/Program.cs, and sheet_metal/feature_recognizer/main.cxx.

◆ Bottom()

const ModelData::Shape & cadex::SheetMetal_FormingFeature::Bottom ( ) const

Returns the bottom shape of the bore. The shape can be a single face or shell. Returns a null shape if the bore has no bottom.

See also: SetBottom()

◆ Depth()

double cadex::SheetMetal_FormingFeature::Depth ( ) const

Returns the forming feature depth in mm .

See also: SetDepth()

Examples: MTKConverter/Program.cs, and sheet_metal/feature_recognizer/Program.cs.

◆ HasAxis()

bool cadex::SheetMetal_FormingFeature::HasAxis ( ) const

Returns true if z-axis is determined for forming feature

See also: Axis(), SetAxis()

◆ SetAxis()

void cadex::SheetMetal_FormingFeature::SetAxis ( const Geom::Axis1d & theAxis )

Sets z-axis for forming feature

See also: HasAxis(), Axis()

◆ SetBottom()

void cadex::SheetMetal_FormingFeature::SetBottom ( const ModelData::Shape & theBottom )

Sets the shape for the bore bottom. The shape can be a single face or shell.

See also: Bottom()

◆ SetDepth()

void cadex::SheetMetal_FormingFeature::SetDepth ( double theDepth )

Sets depth for forming feature in mm. The value must be more than zero.

See also: Depth()

◆ SetSidewalls()

void cadex::SheetMetal_FormingFeature::SetSidewalls ( const ModelData::Shape & theSidewalls )

Sets the shape for bore sidewalls. The shape can be a single face or shell.

See also: Sidewalls()
