Overview

In this example demonstrates how to create a projection of a 3D model using projector tool (Projector_PolyProjector). For this purpose, used a console application that imports a model, traverses through unique ModelData::Part , creates and runs Projector_PolyProjector and returns information about the projection into Projector_PolyData. Creating a projection will be performed for each ModelData::Part , but only for the scope of accepted geometries.

Application needs 2 input arguments to run:

Usage: poly_projector <input_file>, where:

<input_file> is a name of the file to be read

For more information about projector visit Projection Creation page.

Implementation

To explore the model and process ModelData::Part , it's need to create an inheritor from the ModelData::ModelElementVoidVisitor and override the part processing method void operator() (const ModelData::Part& thePart). For this purpose, the SceneGraphPolyProjector class was created.

After, the projection of the model Projector_PolyData is created in the specified direction using Projector_PolyProjector and the information about this projection is printed to the console:

using namespace cadex;

    void operator() (const ModelData::Part& thePart) override
    {
        Projector_PolyData aData = myProjector.Perform (thePart, myDirection);

        std::cout << "Part projection [" << thePart.Name() << "] has:" << endl;
        std::cout << "    area = " << aData.ProjectionArea() << " mm" << endl << endl;
    }
        ...
    Projector_PolyProjector myProjector;
    Geom::Direction myDirection;

To traverse parts of the imported model, the ModelData::ModelElementVoidVisitor class is used:

using namespace cadex;

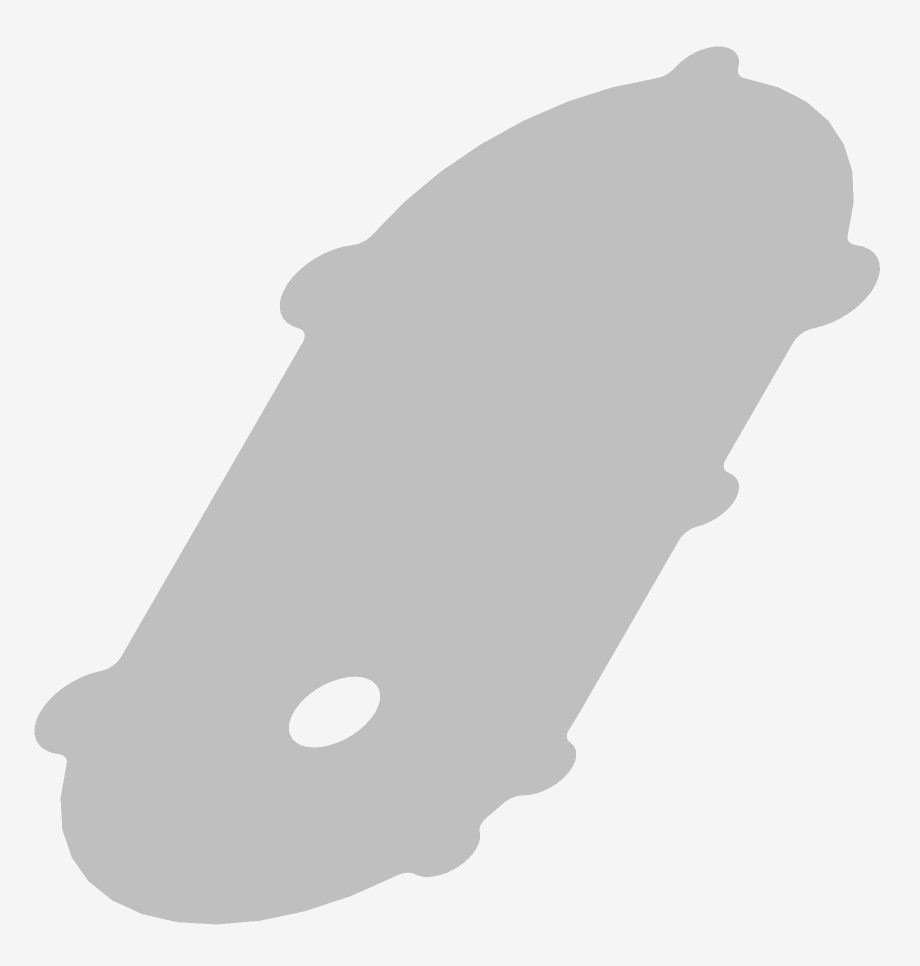

    ModelPolyProjector aProjector (Geom::Direction::YDir());
    aModel.Accept (aProjector);

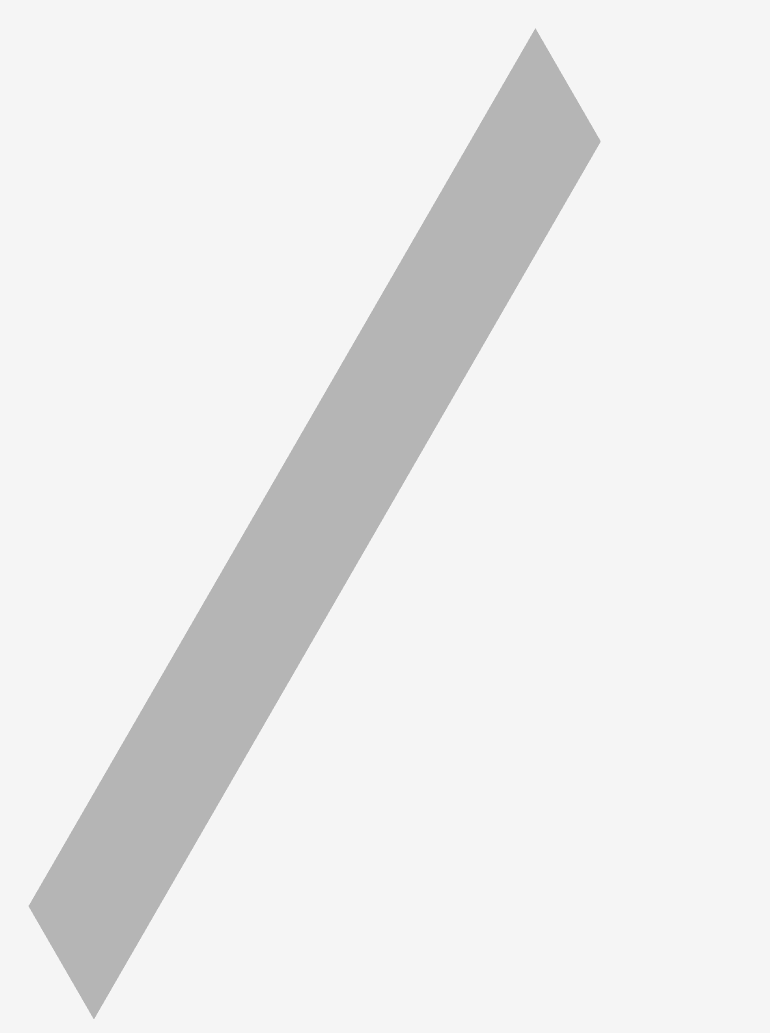

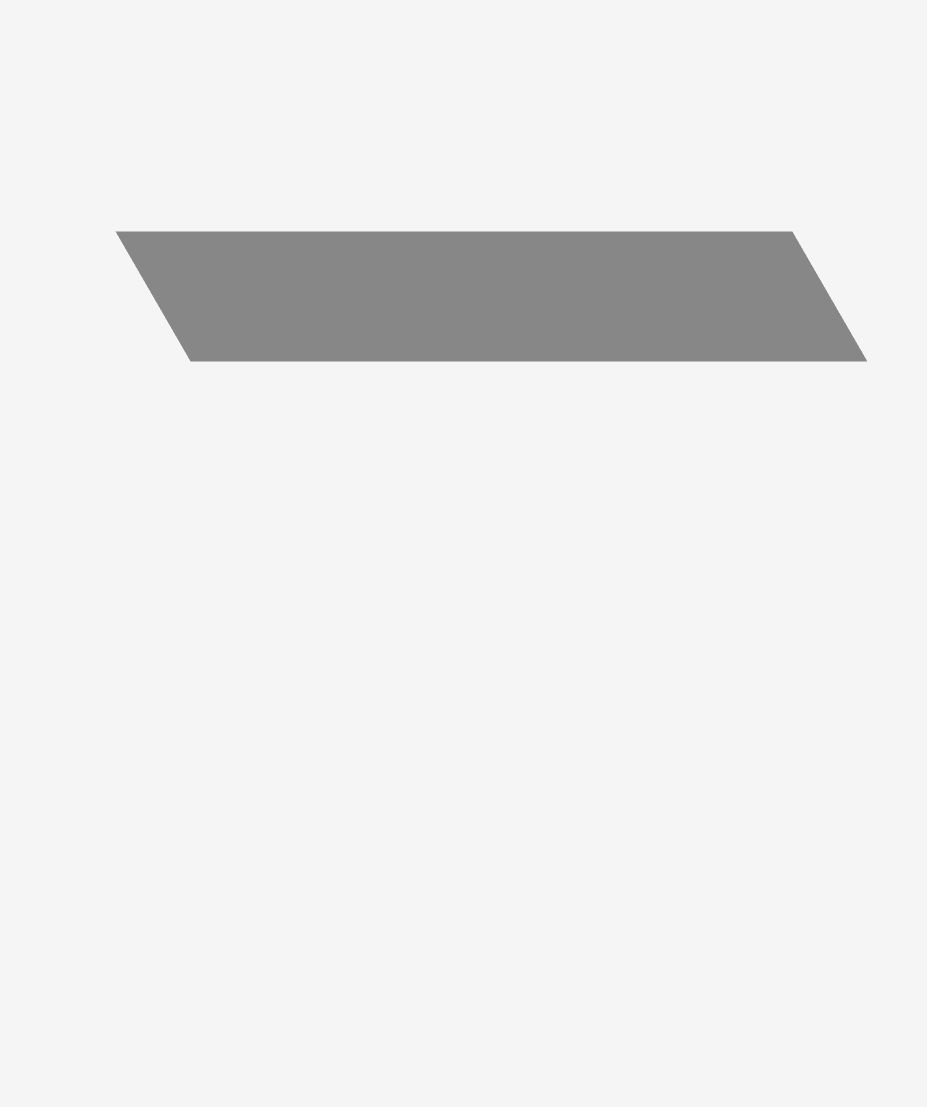

Example output

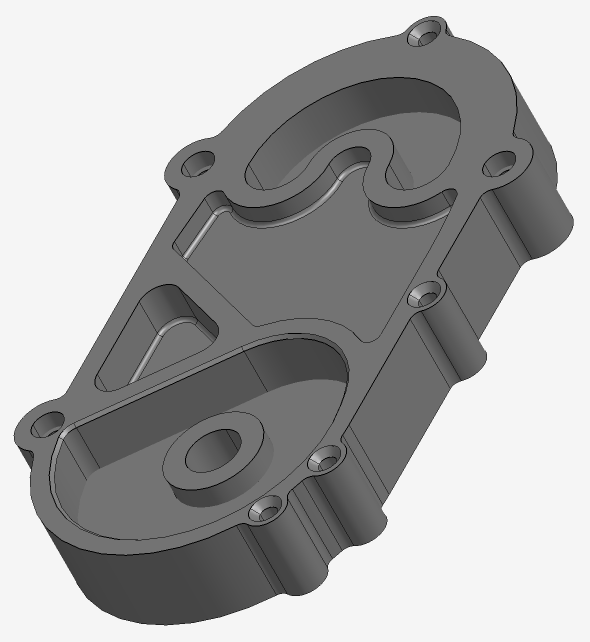

Below is the example output for model from ./examples/models/Fresamento_CAM1_v3.stp:

Part projection [Fresamento_CAM1] has:

area = 41873.9 mm
