Describes large turned part issue found during cnc machining turning design analysis. More...

Inheritance diagram for cadex.DFMMachining_LargeTurnedPartIssue:

Public Member Functions
	DFMMachining_LargeTurnedPartIssue (global::System.IntPtr cPtr, bool cMemoryOwn)

	DFMMachining_LargeTurnedPartIssue ()
	Constructor.

cadex.DFMMachining_TurnedPartSize	ExpectedMaxTurnedPartSize ()
	Returns the expected maximum turned part size.

void	SetExpectedMaxTurnedPartSize (cadex.DFMMachining_TurnedPartSize theTurnedPartSize)
	Sets expected maximum turned part size.

cadex.DFMMachining_TurnedPartSize	ActualTurnedPartSize ()
	Returns the actual turned part size.

void	SetActualTurnedPartSize (cadex.DFMMachining_TurnedPartSize theTurnedPartSize)
	Sets actual turned part size.

Public Member Functions inherited from cadex.DFMBase_Issue
	DFMBase_Issue (global::System.IntPtr cPtr, bool cMemoryOwn)

Public Member Functions inherited from cadex.MTKBase_Feature
	MTKBase_Feature (global::System.IntPtr cPtr, bool cMemoryOwn)

void	Dispose ()

	MTKBase_Feature ()
	Constructor.

void	Nullify ()
	Resets reference to implementation object.

bool	IsNull ()
	Returns true if the object is nullified.

bool	IsEqual (cadex.MTKBase_Feature theObject)

bool	IsNotEqual (cadex.MTKBase_Feature theObject)

Static Public Member Functions
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is a DFM machining large turned part issue.

static new cadex.DFMMachining_LargeTurnedPartIssue	Cast (cadex.MTKBase_Feature theBase)

Static Public Member Functions inherited from cadex.DFMBase_Issue
static bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a DFM issue.

static cadex.DFMBase_Issue	Cast (cadex.MTKBase_Feature theBase)

Protected Member Functions
override void	Dispose (bool disposing)

Detailed Description

Describes large turned part issue found during cnc machining turning design analysis.

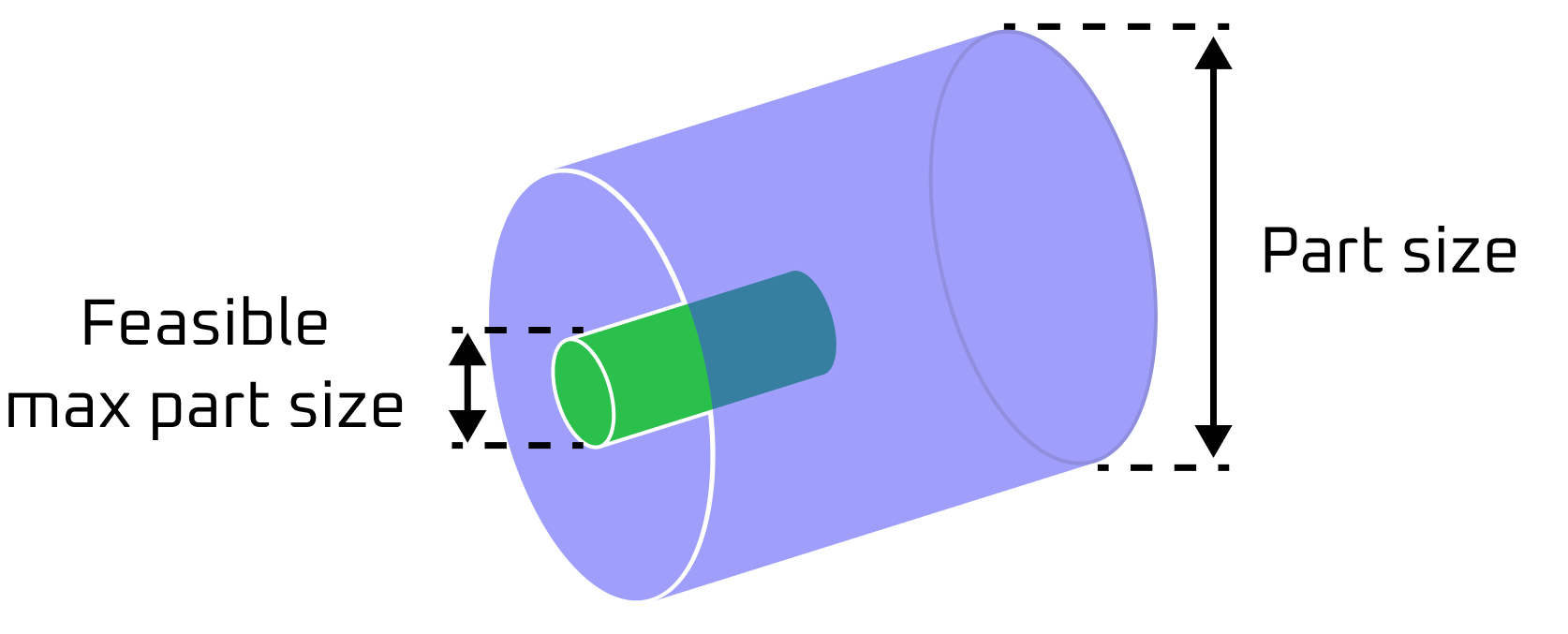

A large turned part issue in cnc machining turning design refers to the difficulties faced in producing oversized components in a turning operation. These parts require specialized equipment and expertise, as well as careful consideration of factors such as stability, tool selection, and programming. Some common challenges include maintaining consistency of material removal, ensuring proper chip evacuation, and minimizing vibration and deflection.

Contains turned part size that fails the following condition:

\[ \large L_p \leq l_m \quad \text{and} \quad R_p \leq r_m \]

\[ \begin{aligned} & \small L_p - \text{actual turned part length} \\ & \small R_p - \text{actual turned part radius} \\ & \small l_m - \text{expected maximum turned part length} \\ & \small r_m - \text{expected maximum turned part radius} \end{aligned} \]
