Describes long-slender turned part issue found during cnc machining turning design analysis. More...

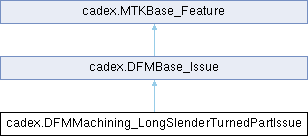

Inheritance diagram for cadex.DFMMachining_LongSlenderTurnedPartIssue:

Public Member Functions
	DFMMachining_LongSlenderTurnedPartIssue (global::System.IntPtr cPtr, bool cMemoryOwn)

	DFMMachining_LongSlenderTurnedPartIssue ()
	Constructor.

double	ExpectedMaxLengthToMinDiameterRatio ()

void	SetExpectedMaxLengthToMinDiameterRatio (double theRatio)

double	ExpectedMaxLength ()

double	ActualLength ()

void	SetActualLength (double theLength)

double	ActualMinDiameter ()

void	SetActualMinDiameter (double theDiameter)

Public Member Functions inherited from cadex.DFMBase_Issue
	DFMBase_Issue (global::System.IntPtr cPtr, bool cMemoryOwn)

Public Member Functions inherited from cadex.MTKBase_Feature
	MTKBase_Feature (global::System.IntPtr cPtr, bool cMemoryOwn)

void	Dispose ()

	MTKBase_Feature ()
	Constructor.

void	Nullify ()

bool	IsNull ()

bool	IsEqual (cadex.MTKBase_Feature theObject)

bool	IsNotEqual (cadex.MTKBase_Feature theObject)

Static Public Member Functions
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is a DFM machining long-slender turned part issue.

static new cadex.DFMMachining_LongSlenderTurnedPartIssue	Cast (cadex.MTKBase_Feature theBase)

Static Public Member Functions inherited from cadex.DFMBase_Issue
static bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a DFM issue.

static cadex.DFMBase_Issue	Cast (cadex.MTKBase_Feature theBase)

Protected Member Functions
override void	Dispose (bool disposing)

Detailed Description

Describes long-slender turned part issue found during cnc machining turning design analysis.

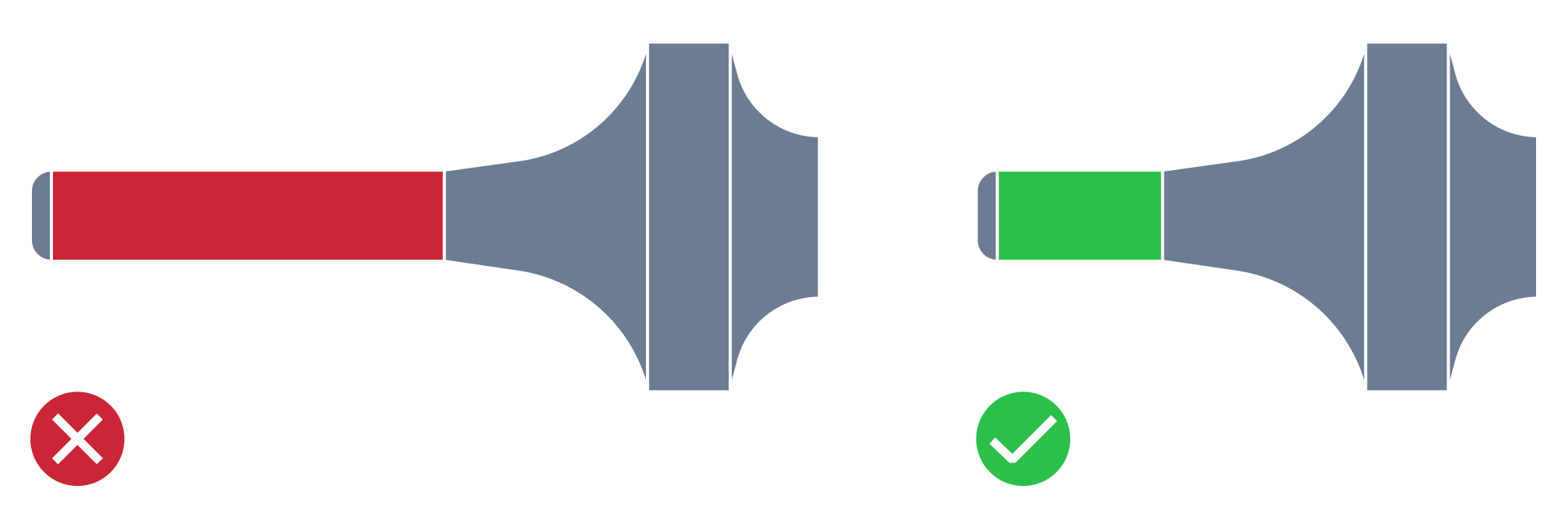

The long-slender turned part issue in cnc machining turning design refers to the difficulty in producing a thin and elongated component with high precision and accuracy. This type of part may be prone to deflection, vibration, and chatter during the machining process, which can lead to surface finish defects, dimensional inaccuracies, and even part breakage.

Contains length and minimum diameter of turned part that fails the following condition:

\[ \large L_p \leq dia_p * Rt \]

\[ \begin{aligned} & \small L_p - \text{actual turned part length} \\ & \small dia_p - \text{actual turned part minimum diameter} \\ & \small Rt - \text{expected maximum turned part length to minimum diameter ratio} \end{aligned} \]

See also: DFMMachining_Analyzer, DFMMachining_TurningAnalyzerParameters.MaxTurnedPartLengthToMinDiameterRatio()

Examples: machining/dfm_analyzer/Program.cs, and machining/dfm_analyzer/main.cxx.

Member Function Documentation

◆ ActualLength()

double cadex.DFMMachining_LongSlenderTurnedPartIssue.ActualLength ( )

inline

Returns the actual length of a turned part in mm .

See also: SetActualLength()

Examples: machining/dfm_analyzer/Program.cs.

◆ ActualMinDiameter()

double cadex.DFMMachining_LongSlenderTurnedPartIssue.ActualMinDiameter ( )

inline

Returns the actual minimum diameter of a turned part in mm .

See also: SetActualMinDiameter()

Examples: machining/dfm_analyzer/Program.cs.

◆ Dispose()

override void cadex.DFMMachining_LongSlenderTurnedPartIssue.Dispose ( bool disposing )

inlineprotectedvirtual

Reimplemented from cadex.DFMBase_Issue.

◆ ExpectedMaxLength()

double cadex.DFMMachining_LongSlenderTurnedPartIssue.ExpectedMaxLength ( )

inline

Returns the expected maximum length of a turned part in mm .

\[ \large L_e = dia_p * Rt \]

\[ \begin{aligned} & \small L_e - \text{expected maximum turned part length} \\ & \small dia_p - \text{actual turned part minimum diameter} \\ & \small Rt - \text{expected maximum turned part length to minimum diameter ratio} \end{aligned} \]
