cadex.DFMMolding_SmallDistanceBetweenRibsIssue Class Reference

Describes a class for small distance between ribs issues found during molding design analysis. More...

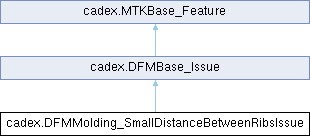

Inheritance diagram for cadex.DFMMolding_SmallDistanceBetweenRibsIssue:

Public Member Functions
	DFMMolding_SmallDistanceBetweenRibsIssue (global::System.IntPtr cPtr, bool cMemoryOwn)
	DFMMolding_SmallDistanceBetweenRibsIssue ()
	Constructor.
	DFMMolding_SmallDistanceBetweenRibsIssue (cadex.Molding_Rib theFirstRib, cadex.Molding_Rib theSecondRib)
	Constructor.
double	ExpectedMinDistanceBetweenRibsToWallThicknessRatio ()
void	SetExpectedMinDistanceBetweenRibsToWallThicknessRatio (double theRatio)
double	ExpectedMinDistanceBetweenRibs ()
void	SetExpectedMinDistanceBetweenRibs (double theDistance)
void	SetRibs (cadex.Molding_Rib theFirstRib, cadex.Molding_Rib theSecondRib)
cadex.Molding_Rib	FirstRib ()
cadex.Molding_Rib	SecondRib ()
double	ActualDistanceBetweenRibs ()
void	SetActualDistanceBetweenRibs (double theDistance)
Public Member Functions inherited from cadex.DFMBase_Issue
	DFMBase_Issue (global::System.IntPtr cPtr, bool cMemoryOwn)
Public Member Functions inherited from cadex.MTKBase_Feature
	MTKBase_Feature (global::System.IntPtr cPtr, bool cMemoryOwn)
void	Dispose ()
	MTKBase_Feature ()
	Constructor.
void	Nullify ()
bool	IsNull ()
bool	IsEqual (cadex.MTKBase_Feature theObject)
bool	IsNotEqual (cadex.MTKBase_Feature theObject)

Static Public Member Functions
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is a DFM molding small distance between ribs issue.
static new cadex.DFMMolding_SmallDistanceBetweenRibsIssue	Cast (cadex.MTKBase_Feature theBase)
Static Public Member Functions inherited from cadex.DFMBase_Issue
static bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a DFM issue.
static cadex.DFMBase_Issue	Cast (cadex.MTKBase_Feature theBase)

Protected Member Functions
override void	Dispose (bool disposing)

Detailed Description

Describes a class for small distance between ribs issues found during molding design analysis.

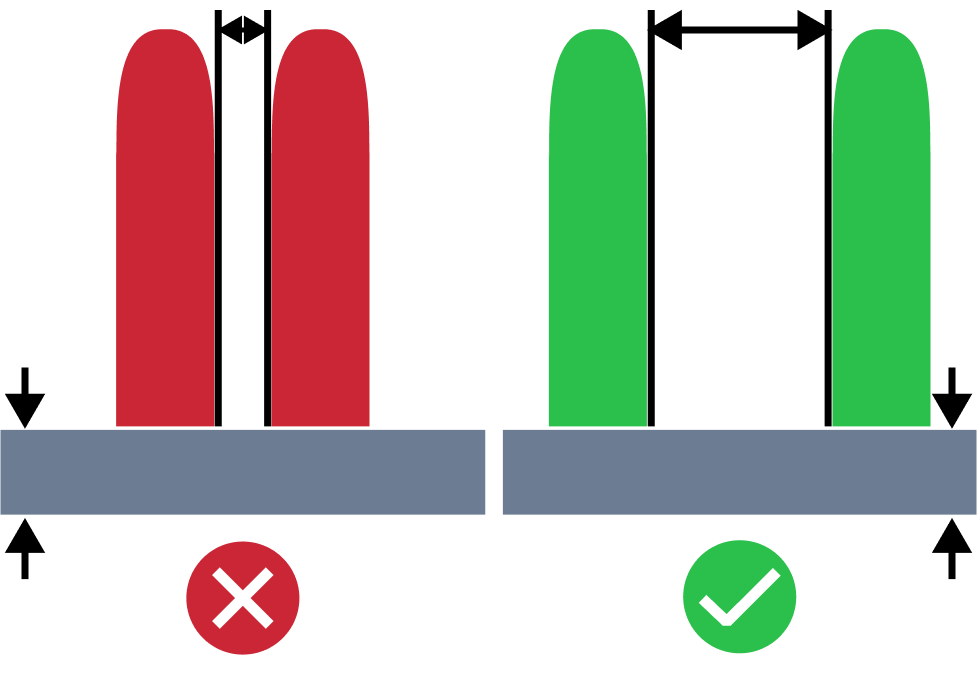

The small distance between ribs issue refers to a situation where the distance between ribs is smaller than the recommended one. Proper distance between ribs are important to promotes even cooling and enhances structural integrity of the part.

Contains problematic ribs, the distance between which fails the following condition:

\[ \large D \geq T \times R \]

\[ \begin{aligned} & \small D - \text{actual distance between ribs} \\ & \small T - \text{actual nominal thickness} \\ & \small R - \text{expected minimum distance between ribs to nominal thickness ratio} \\ \end{aligned} \]

See also

DFMMolding_Analyzer, DFMMolding_AnalyzerParameters.MinDistanceBetweenRibsToWallThicknessRatio(), Molding_Rib

Examples

molding/dfm_analyzer/Program.cs, and molding/dfm_analyzer/main.cxx.

Constructor & Destructor Documentation

DFMMolding_SmallDistanceBetweenRibsIssue()

cadex.DFMMolding_SmallDistanceBetweenRibsIssue.DFMMolding_SmallDistanceBetweenRibsIssue ( cadex.Molding_Rib theFirstRib, cadex.Molding_Rib theSecondRib )

inline

Constructor.

Creates a small distance between ribs issue from the Molding_Rib objects.

Member Function Documentation

ActualDistanceBetweenRibs()

double cadex.DFMMolding_SmallDistanceBetweenRibsIssue.ActualDistanceBetweenRibs ( )

inline

Returns the actual distance between ribs in mm .

See also

SetActualDistanceBetweenRibs()

Examples

molding/dfm_analyzer/Program.cs.

Dispose()

override void cadex.DFMMolding_SmallDistanceBetweenRibsIssue.Dispose ( bool disposing )

inlineprotectedvirtual

Reimplemented from cadex.DFMBase_Issue.

ExpectedMinDistanceBetweenRibs()

double cadex.DFMMolding_SmallDistanceBetweenRibsIssue.ExpectedMinDistanceBetweenRibs ( )

inline

Returns the expected minimum distance between ribs in mm .

See also

SetExpectedMinDistanceBetweenRibs(), DFMMolding_AnalyzerParameters.MinDistanceBetweenRibsToWallThicknessRatio()

Examples

molding/dfm_analyzer/Program.cs.

ExpectedMinDistanceBetweenRibsToWallThicknessRatio()

double cadex.DFMMolding_SmallDistanceBetweenRibsIssue.ExpectedMinDistanceBetweenRibsToWallThicknessRatio ( )

inline

Returns expected minimum distance between ribs to nominal thickness ratio.

See also

SetExpectedMinDistanceBetweenRibsToWallThicknessRatio(), DFMMolding_AnalyzerParameters.MinDistanceBetweenRibsToWallThicknessRatio()

FirstRib()

cadex.Molding_Rib cadex.DFMMolding_SmallDistanceBetweenRibsIssue.FirstRib ( )

inline

Returns first problematic rib.

See also

SetRibs()

SecondRib()

cadex.Molding_Rib cadex.DFMMolding_SmallDistanceBetweenRibsIssue.SecondRib ( )

inline

Returns second problematic rib.

See also

SetRibs()

SetActualDistanceBetweenRibs()

void cadex.DFMMolding_SmallDistanceBetweenRibsIssue.SetActualDistanceBetweenRibs ( double theDistance )

inline

Sets the actual distance between ribs. theDistance should be greater than or equal to zero.

See also

ActualDistanceBetweenRibs()

SetExpectedMinDistanceBetweenRibs()

void cadex.DFMMolding_SmallDistanceBetweenRibsIssue.SetExpectedMinDistanceBetweenRibs ( double theDistance )

inline

Sets the expected minimum distance between ribs. theDistance should be greater than or equal to zero.

See also

ExpectedMinDistanceBetweenRibs()

SetExpectedMinDistanceBetweenRibsToWallThicknessRatio()

void cadex.DFMMolding_SmallDistanceBetweenRibsIssue.SetExpectedMinDistanceBetweenRibsToWallThicknessRatio ( double theRatio )

inline

Sets the expected minimum distance between ribs to nominal thickness ratio. theRatio should be greater than or equal to zero.

See also

ExpectedMinDistanceBetweenRibsToWallThicknessRatio()

SetRibs()

void cadex.DFMMolding_SmallDistanceBetweenRibsIssue.SetRibs ( cadex.Molding_Rib theFirstRib, cadex.Molding_Rib theSecondRib )

inline

Sets the problematic ribs.

See also

FirstRib(), SecondRib()
