cadex.Drawing.Dimension Class Reference

Base class for various dimension types. More...

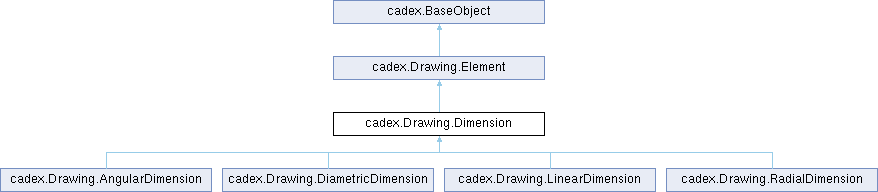

Inheritance diagram for cadex.Drawing.Dimension:

Public Types
enum	ArrowType {   Undefined = 0 , ClosedFilled = 1 , ClosedBlank = 2 , Closed = 3 ,   Dot = 4 , ArchitecturalTick = 5 , Oblique = 6 , Open = 7 ,   OriginIndicator = 8 , OriginIndicator2 = 9 , RightAngle = 10 , Open30 = 11 ,   DotSmall = 12 , DotBlank = 13 , DotSmallBlank = 14 , Box = 15 ,   BoxFilled = 16 , DatumTriangle = 17 , DatumTriangleFilled = 18 , Integral = 19 }
	the arrow type. More...
enum	ArrowheadPlacementType { Internal , External }
	Represents the arrow head placement. More...

Public Member Functions
	Dimension (global::System.IntPtr cPtr, bool cMemoryOwn)
cadex.Drawing.Dimension.ArrowType	FirstArrowType ()
	Returns ArrowType.Undefined if IsNull().
void	SetFirstArrowType (cadex.Drawing.Dimension.ArrowType theFirstArrowType)
	Sets type of the first arrow of dimension.
cadex.Drawing.Dimension.ArrowType	SecondArrowType ()
	Returns ArrowType.Undefined if IsNull().
void	SetSecondArrowType (cadex.Drawing.Dimension.ArrowType theSecondArrowType)
cadex.Drawing.Dimension.ArrowheadPlacementType	ArrowheadPlacement ()
	Returns ArrowheadPlacementType.Internal by default or if IsNull().
void	SetArrowheadPlacement (cadex.Drawing.Dimension.ArrowheadPlacementType theArrowheadPlacement)
	Sets the arrowhead placement.
bool	AlignTextHorizontally ()
	Returns true if the measurement text is align horizontally.
void	SetAlignTextHorizontally (bool theAlignTextHorizontally)
double	MeasurementValue ()
	Returns the actual measurement.
void	SetMeasurementValue (double theMeasurementValue)
	Sets the actual measurement.
cadex.Drawing.Text	Text ()
	Returns the dimension text.
void	SetText (cadex.Drawing.Text theText)
Public Member Functions inherited from cadex.Drawing.Element
	Element (global::System.IntPtr cPtr, bool cMemoryOwn)
void	SetUuid (System.Guid theUuid)
System.Guid	Uuid ()
void	Accept (cadex.Drawing.ElementVisitor theVisitor)
Public Member Functions inherited from cadex.BaseObject
	BaseObject (global::System.IntPtr cPtr, bool cMemoryOwn)
void	Dispose ()
bool	IsNull ()
ulong	Id ()
	Return unique identifier of public object.
bool	IsEqual (cadex.BaseObject theObj)
override int	GetHashCode ()
override bool	Equals (System.Object o)

Static Public Member Functions
static new bool	CompareType (cadex.BaseObject theObject)
static cadex.Drawing.Dimension	Cast (cadex.Drawing.Element theBase)
Static Public Member Functions inherited from cadex.Drawing.Element
static bool	CompareType (cadex.BaseObject theObject)
	Returns true if theObject has the Element type.
static cadex.Drawing.Element	Cast (cadex.BaseObject theBase)

Protected Member Functions
override void	Dispose (bool disposing)
Protected Member Functions inherited from cadex.Drawing.Element
override void	Dispose (bool disposing)

Detailed Description

Base class for various dimension types.

Dimension entities show length, angle, radius and diameter measurements.

Member Enumeration Documentation

ArrowheadPlacementType

enum cadex.Drawing.Dimension.ArrowheadPlacementType

Represents the arrow head placement.

Arrowhead Placment Type	Example
Internal Arrowhead Placment

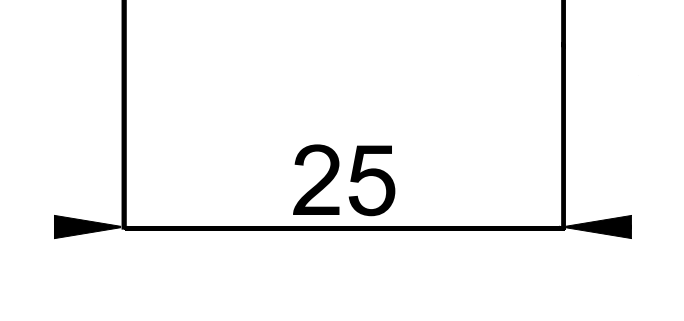

External Arrowhead Placment

ArrowType

enum cadex.Drawing.Dimension.ArrowType

the arrow type.

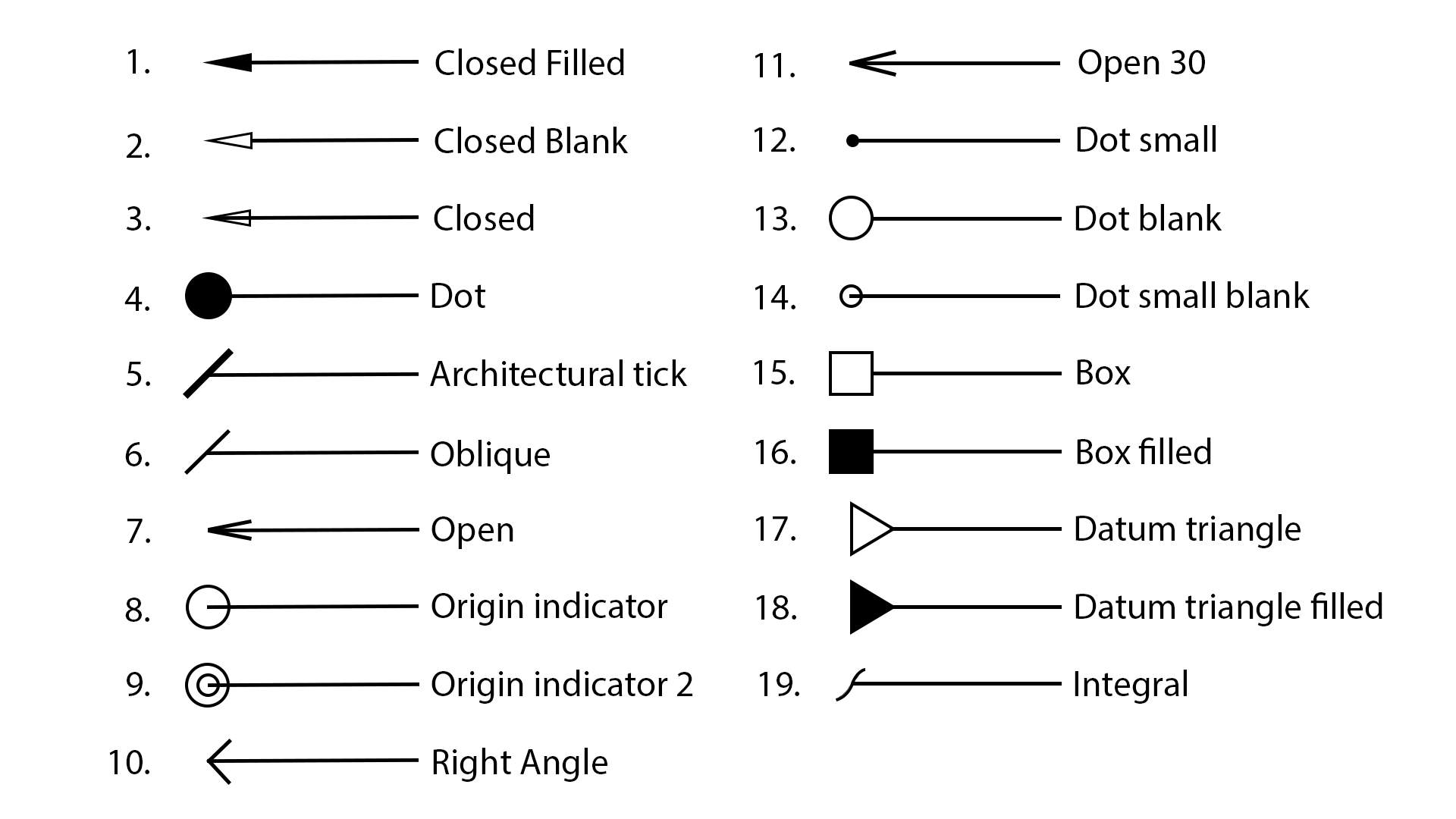

Arrow Types

Member Function Documentation

AlignTextHorizontally()

bool cadex.Drawing.Dimension.AlignTextHorizontally ( )

inline

Returns true if the measurement text is align horizontally.

ArrowheadPlacement()

cadex.Drawing.Dimension.ArrowheadPlacementType cadex.Drawing.Dimension.ArrowheadPlacement ( )

inline

Returns ArrowheadPlacementType.Internal by default or if IsNull().

Arrowheads can be outside or inside the dimension lines. Returns the arrowhead placement.

Dispose()

override void cadex.Drawing.Dimension.Dispose ( bool disposing )

inlineprotectedvirtual

Reimplemented from cadex.BaseObject.

FirstArrowType()

cadex.Drawing.Dimension.ArrowType cadex.Drawing.Dimension.FirstArrowType ( )

inline

Returns ArrowType.Undefined if IsNull().

Returns ArrowType.ClosedFilled by default. Returns type of the first arrow of dimension.

MeasurementValue()

double cadex.Drawing.Dimension.MeasurementValue ( )

inline

Returns the actual measurement.

SecondArrowType()

cadex.Drawing.Dimension.ArrowType cadex.Drawing.Dimension.SecondArrowType ( )

inline

Returns ArrowType.Undefined if IsNull().

Returns ArrowType.ClosedFilled by default. Returns type of the second arrow of dimension.

SetArrowheadPlacement()

void cadex.Drawing.Dimension.SetArrowheadPlacement ( cadex.Drawing.Dimension.ArrowheadPlacementType theArrowheadPlacement )

inline

Sets the arrowhead placement.

SetFirstArrowType()

void cadex.Drawing.Dimension.SetFirstArrowType ( cadex.Drawing.Dimension.ArrowType theFirstArrowType )

inline

Sets type of the first arrow of dimension.

SetMeasurementValue()

void cadex.Drawing.Dimension.SetMeasurementValue ( double theMeasurementValue )

inline

Sets the actual measurement.

Text()

cadex.Drawing.Text cadex.Drawing.Dimension.Text ( )

inline

Returns the dimension text.
