cadex.Machining_Bore Class Reference

Describes a machining bore. More...

Inheritance diagram for cadex.Machining_Bore:

Public Member Functions
	Machining_Bore (global::System.IntPtr cPtr, bool cMemoryOwn)
	Machining_Bore ()
	Constructor.
	Machining_Bore (double theDepth, double theWidth)
double	Depth ()
	Returns the bore depth in mm .
void	SetDepth (double theDepth)
	Sets the bore depth in mm .
double	Radius ()
	Returns the bore radius in mm .
void	SetRadius (double theWidth)
cadex.ModelData.Shape	Sidewalls ()
	Returns the shape containing the bore sidewalls.
void	SetSidewalls (cadex.ModelData.Shape theSidewalls)
	Sets the shape for bore sidewalls.
cadex.ModelData.Shape	Bottom ()
	Returns the bottom shape of the bore.
void	SetBottom (cadex.ModelData.Shape theBottom)
	Sets the shape for the bore bottom.
Public Member Functions inherited from cadex.MTKBase_ShapeFeature
	MTKBase_ShapeFeature (global::System.IntPtr cPtr, bool cMemoryOwn)
	MTKBase_ShapeFeature ()
	Constructor.
	MTKBase_ShapeFeature (cadex.ModelData.Shape theShape)
	Creates a feature from a ModelData.Shape object.
cadex.ModelData.Shape	Shape ()
	Returns shape of the feature.
void	SetShape (cadex.ModelData.Shape theShape)
	Sets shape of the feature.
Public Member Functions inherited from cadex.MTKBase_Feature
	MTKBase_Feature (global::System.IntPtr cPtr, bool cMemoryOwn)
void	Dispose ()
	MTKBase_Feature ()
	Constructor.
void	Nullify ()
	Resets reference to implementation object.
bool	IsNull ()
	Returns true if the object is nullified.
bool	IsEqual (cadex.MTKBase_Feature theObject)
bool	IsNotEqual (cadex.MTKBase_Feature theObject)

Static Public Member Functions
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is a machining bore.
static new cadex.Machining_Bore	Cast (cadex.MTKBase_Feature theBase)
static cadex.Machining_Bore	Cast (cadex.MTKBase_ShapeFeature theBase)
Static Public Member Functions inherited from cadex.MTKBase_ShapeFeature
static bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a shape feature.
static cadex.MTKBase_ShapeFeature	Cast (cadex.MTKBase_Feature theBase)

Protected Member Functions
override void	Dispose (bool disposing)
Protected Member Functions inherited from cadex.MTKBase_ShapeFeature
override void	Dispose (bool disposing)

Detailed Description

Describes a machining bore.

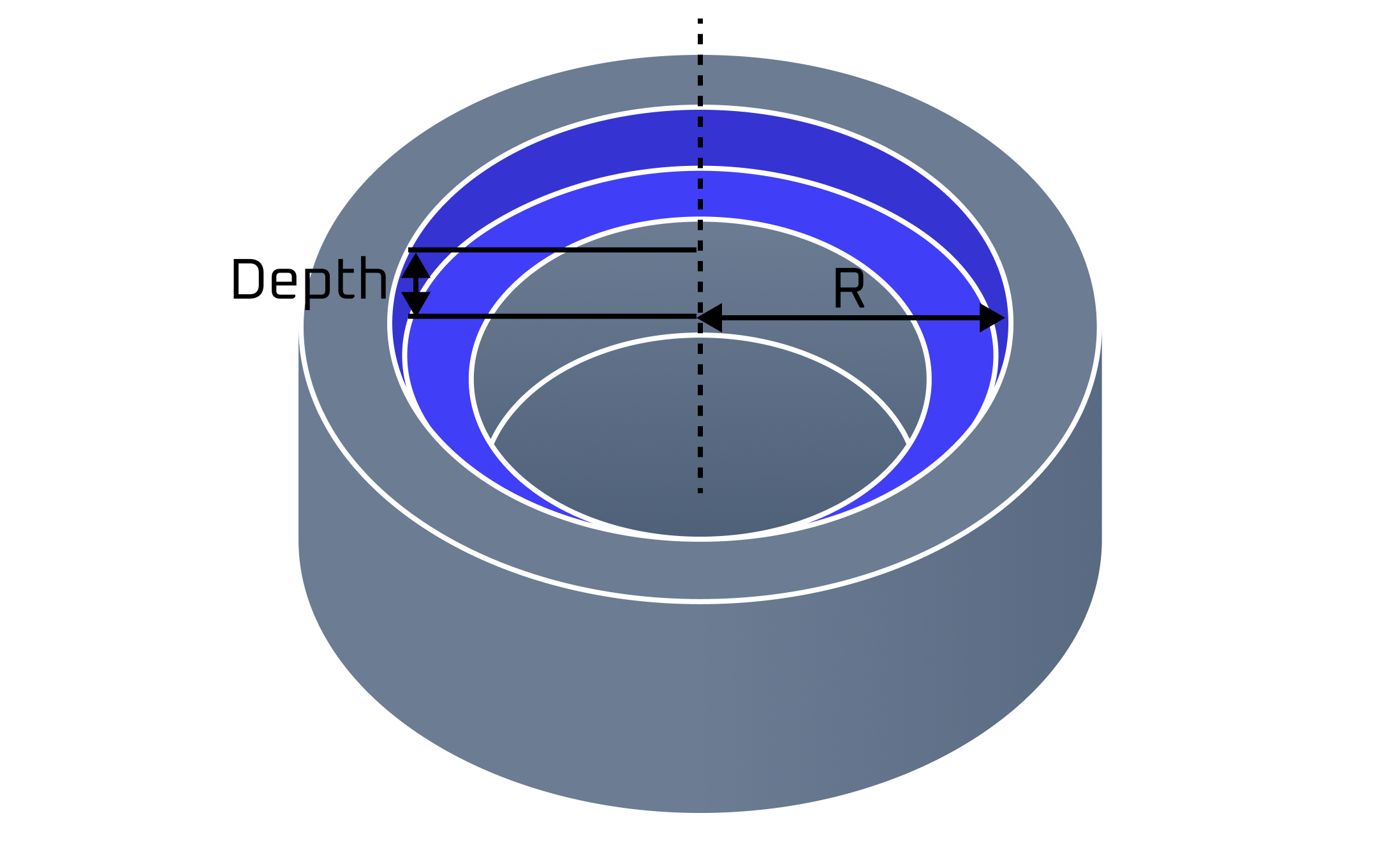

A bore feature is formed by enlarging an existing hole using a rigid single-point cutting tool. It consists of one or more faces defining an internal cylindrical surface, optionally with a bottom. Precision is determined by the rigidity of the spindle and the boring tool. Horizontal boring ensures accurate internal geometry with the workpiece moving parallel to the tool's axis.

Examples

machining/feature_recognizer/Program.cs, and machining/feature_recognizer/main.cxx.

Constructor & Destructor Documentation

Machining_Bore()

cadex.Machining_Bore.Machining_Bore ( )

inline

Constructor.

Member Function Documentation

Bottom()

cadex.ModelData.Shape cadex.Machining_Bore.Bottom ( )

inline

Returns the bottom shape of the bore.

The shape can be a single face or shell. Returns a null shape if the bore has no bottom.

See also

SetBottom()

CompareType()

static new bool cadex.Machining_Bore.CompareType ( cadex.MTKBase_Feature theFeature )

inlinestatic

Returns true if theFeature is a machining bore.

Examples

machining/feature_recognizer/Program.cs.

Depth()

double cadex.Machining_Bore.Depth ( )

inline

Returns the bore depth in mm .

See also

SetDepth()

Examples

machining/feature_recognizer/Program.cs.

Dispose()

override void cadex.Machining_Bore.Dispose ( bool disposing )

inlineprotectedvirtual

Reimplemented from cadex.MTKBase_Feature.

Radius()

double cadex.Machining_Bore.Radius ( )

inline

Returns the bore radius in mm .

See also

SetRadius()

Examples

machining/feature_recognizer/Program.cs.

SetBottom()

void cadex.Machining_Bore.SetBottom ( cadex.ModelData.Shape theBottom )

inline

Sets the shape for the bore bottom.

The shape can be a single face or shell.

See also

Bottom()

SetDepth()

void cadex.Machining_Bore.SetDepth ( double theDepth )

inline

Sets the bore depth in mm .

The value must be greater than zero.

See also

Depth()

SetSidewalls()

void cadex.Machining_Bore.SetSidewalls ( cadex.ModelData.Shape theSidewalls )

inline

Sets the shape for bore sidewalls.

The shape can be a single face or shell.

See also

Sidewalls()

Sidewalls()

cadex.ModelData.Shape cadex.Machining_Bore.Sidewalls ( )

inline

Returns the shape containing the bore sidewalls.

The shape can be a single face or shell.

See also

SetSidewalls()
