cadex.Machining_Chamfer Class Reference

Describes a machining chamfer. More...

Inheritance diagram for cadex.Machining_Chamfer:

Public Member Functions
	Machining_Chamfer (global::System.IntPtr cPtr, bool cMemoryOwn)
	Machining_Chamfer ()
	Constructor.
	Machining_Chamfer (double theLength)
	Creates the machining Chamfer from the Length and radius.
double	Length ()
	Returns the Chamfer Length in mm .
void	SetLength (double theLength)
	Sets the Chamfer Length in mm .
Public Member Functions inherited from cadex.MTKBase_ShapeFeature
	MTKBase_ShapeFeature (global::System.IntPtr cPtr, bool cMemoryOwn)
	MTKBase_ShapeFeature ()
	Constructor.
	MTKBase_ShapeFeature (cadex.ModelData.Shape theShape)
	Creates a feature from a ModelData.Shape object.
cadex.ModelData.Shape	Shape ()
	Returns shape of the feature.
void	SetShape (cadex.ModelData.Shape theShape)
	Sets shape of the feature.
Public Member Functions inherited from cadex.MTKBase_Feature
	MTKBase_Feature (global::System.IntPtr cPtr, bool cMemoryOwn)
void	Dispose ()
	MTKBase_Feature ()
	Constructor.
void	Nullify ()
	Resets reference to implementation object.
bool	IsNull ()
	Returns true if the object is nullified.
bool	IsEqual (cadex.MTKBase_Feature theObject)
bool	IsNotEqual (cadex.MTKBase_Feature theObject)

Static Public Member Functions
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is a machining Chamfer.
static new cadex.Machining_Chamfer	Cast (cadex.MTKBase_Feature theBase)
Static Public Member Functions inherited from cadex.MTKBase_ShapeFeature
static bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a shape feature.
static cadex.MTKBase_ShapeFeature	Cast (cadex.MTKBase_Feature theBase)

Protected Member Functions
override void	Dispose (bool disposing)
Protected Member Functions inherited from cadex.MTKBase_ShapeFeature
override void	Dispose (bool disposing)

Detailed Description

Describes a machining chamfer.

A chamfer feature represents a beveled region created by removing material along one or more connected edges of the part.

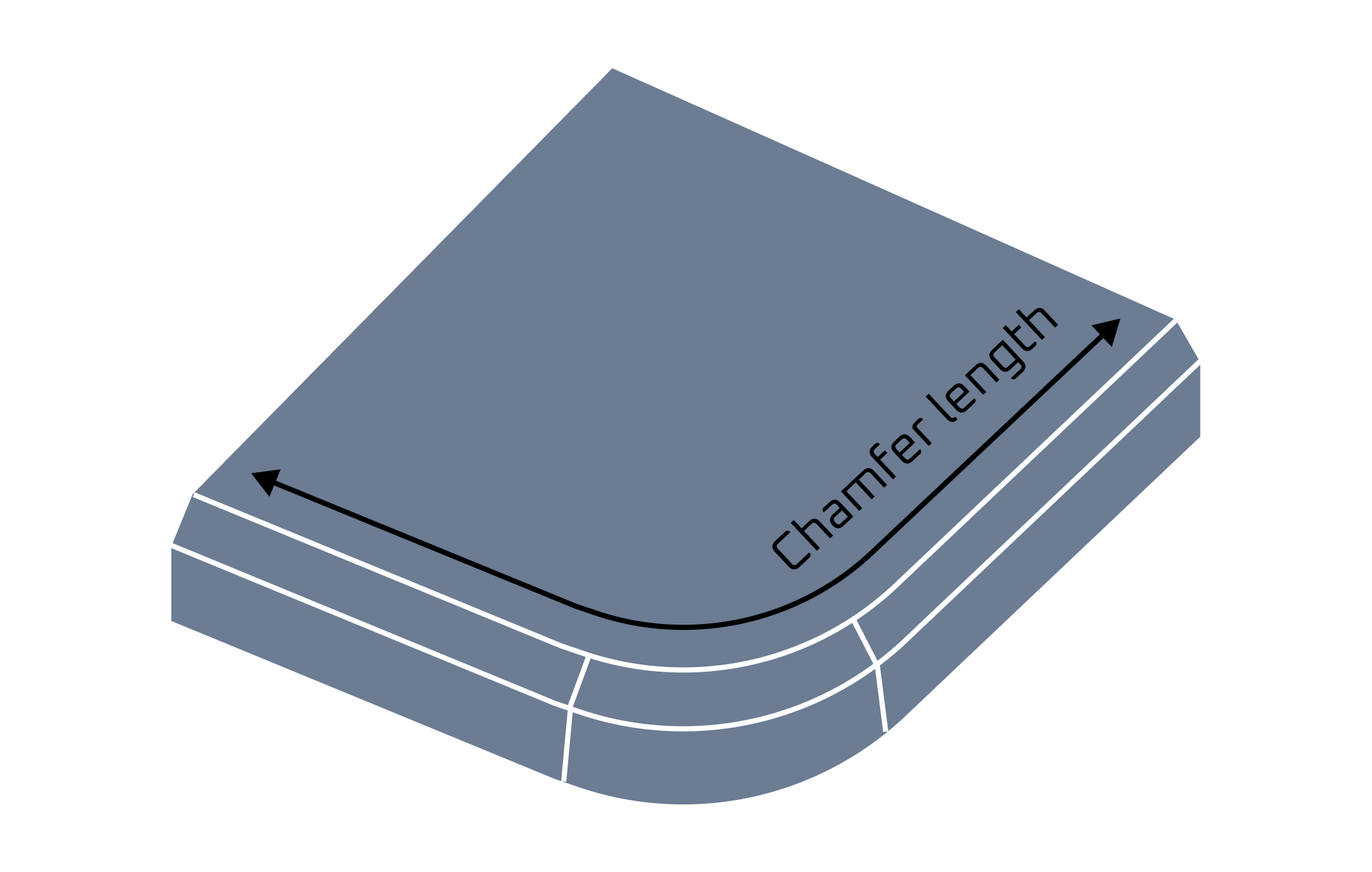

The feature may consist of one or more chamfer faces forming a continuous chamfer. The Length parameter specifies the total extent of the chamfer along the chamfered edge path.

Examples

machining/feature_recognizer/Program.cs, and machining/feature_recognizer/main.cxx.

Constructor & Destructor Documentation

Machining_Chamfer() [1/2]

cadex.Machining_Chamfer.Machining_Chamfer ( )

inline

Constructor.

Machining_Chamfer() [2/2]

cadex.Machining_Chamfer.Machining_Chamfer ( double theLength )

inline

Creates the machining Chamfer from the Length and radius.

Constructor.

Member Function Documentation

CompareType()

static new bool cadex.Machining_Chamfer.CompareType ( cadex.MTKBase_Feature theFeature )

inlinestatic

Returns true if theFeature is a machining Chamfer.

Examples

machining/feature_recognizer/Program.cs.

Dispose()

override void cadex.Machining_Chamfer.Dispose ( bool disposing )

inlineprotectedvirtual

Reimplemented from cadex.MTKBase_Feature.

Length()

double cadex.Machining_Chamfer.Length ( )

inline

Returns the Chamfer Length in mm .

See also

SetLength()

Examples

machining/feature_recognizer/Program.cs.

SetLength()

void cadex.Machining_Chamfer.SetLength ( double theLength )

inline

Sets the Chamfer Length in mm .

The value must be greater than zero.

See also

Length()
