cadex.Machining_FeatureRecognizerParameters Class Reference

Defines parameters used by Machining_FeatureRecognizer. More...

Inherits global.SystemIDisposable.

Public Member Functions
	Machining_FeatureRecognizerParameters (global::System.IntPtr cPtr, bool cMemoryOwn)
void	Dispose ()
double	ProfileRadiusThreshold ()
void	SetProfileRadiusThreshold (double theProfileRadiusThreshold)
double	FilletRadiusThreshold ()
void	SetFilletRadiusThreshold (double theFilletRadiusThreshold)
double	HoleRadiusThreshold ()
void	SetHoleRadiusThreshold (double theHoleRadThreshold)
double	PlanarAngleThreshold ()
void	SetPlanarAngleThreshold (double thePlanarAngleThreshold)
double	MaxHoleSpacedPartsDistanceToDiameterRatio ()
void	SetMaxHoleSpacedPartsDistanceToDiameterRatio (double theRatio)
cadex.Machining_OperationType	Operation ()
void	SetOperation (cadex.Machining_OperationType theOperation)
bool	IsAxisDefined ()
cadex.Geom.Axis1d	Axis ()
void	SetAxis (cadex.Geom.Axis1d theAxis)
double	MinPartialHoleMaterialPercent ()
void	SetMinPartialHoleMaterialPercent (double theNewMinPartialHoleMaterialPercent)
bool	IgnoreHolesOnTurningAxis ()
void	SetIgnoreHolesOnTurningAxis (bool theIgnoreHolesOnTurningAxis)
double	MaxGrooveDepth ()
void	SetMaxGrooveDepth (double theMaxGrooveDepth)
double	MaxGrooveWidth ()
void	SetMaxGrooveWidth (double theMaxGrooveWidth)

Protected Member Functions
virtual void	Dispose (bool disposing)

Detailed Description

Defines parameters used by Machining_FeatureRecognizer.

Contains parameters used by Machining Feature Recognizer (Machining_FeatureRecognizer) and allows to set parameters used to define different types of machining faces and holes.

Operation types

MTK supports operation types (defined by the Machining_OperationType enumeration) defined in the following table:

Milling operation	The process of machining using rotary cutters to remove material by advancing a cutter into a workpiece. This may be done varying direction on one or several axes, cutter head speed, and pressure.
Lathe + Milling operation	Involve rotating a workpiece against a single-bladed cutting tool. Milling operation could be used for post processing.

Examples

machining/dfm_analyzer/Program.cs, and machining/feature_recognizer/Program.cs.

Member Function Documentation

Axis()

cadex.Geom.Axis1d cadex.Machining_FeatureRecognizerParameters.Axis ( )

inline

Returns axis which will be used as turning axis (for Machining_OperationType.Machining_OT_LatheMilling) or z-axis (for Machining_OperationType.Machining_OT_Milling)

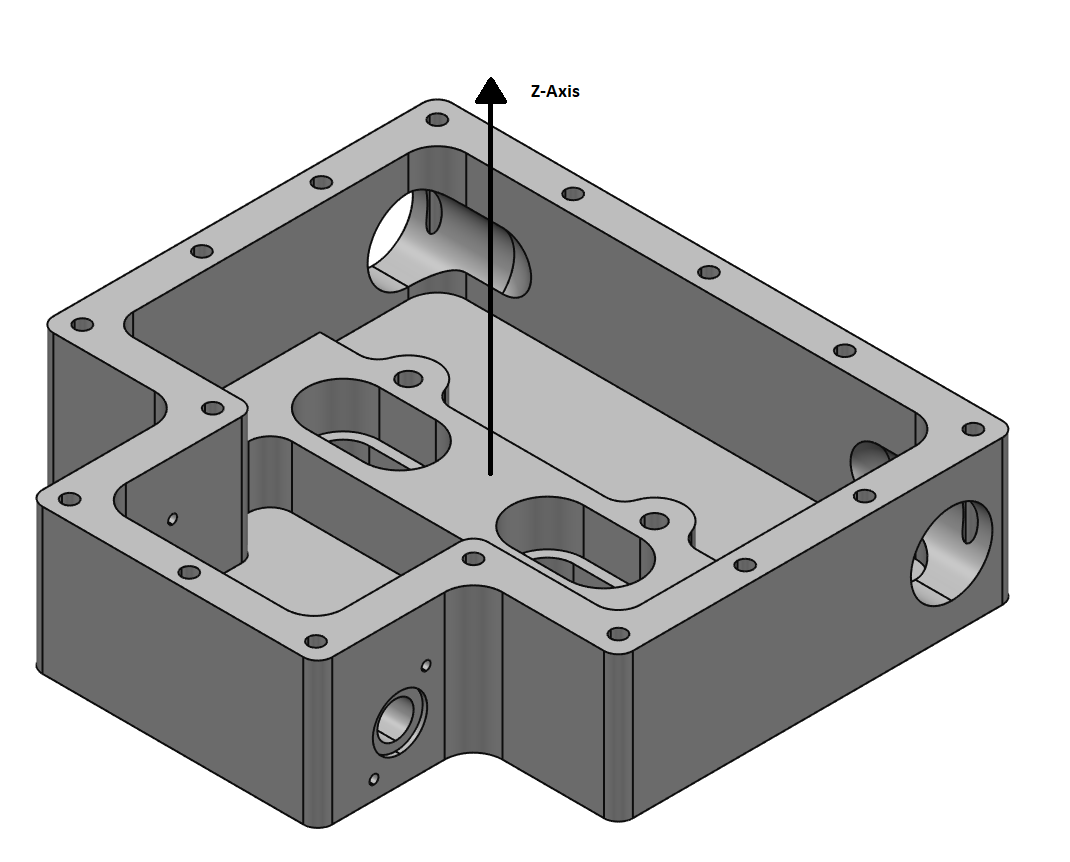

Milling z-axis

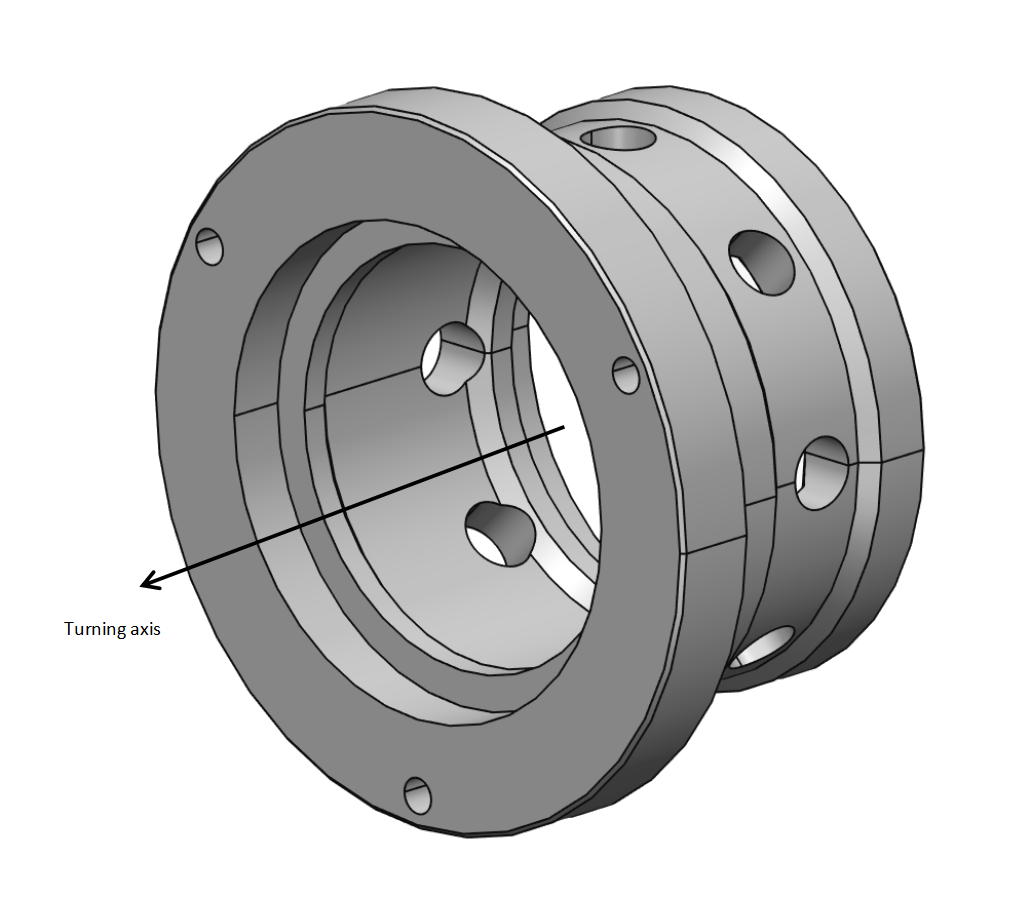

Turning axis

See also

IsAxisDefined(), SetAxis()

FilletRadiusThreshold()

double cadex.Machining_FeatureRecognizerParameters.FilletRadiusThreshold ( )

inline

Returns fillet radius threshold in mm. Used to distinguish fillets for concave faces.

The default value is 12.5.

See also

SetFilletRadiusThreshold()

HoleRadiusThreshold()

double cadex.Machining_FeatureRecognizerParameters.HoleRadiusThreshold ( )

inline

Returns hole radius threshold in mm. Used to distinguish holes when analyzing closed faces.

The default value is 25.

See also

SetHoleRadiusThreshold()

IgnoreHolesOnTurningAxis()

bool cadex.Machining_FeatureRecognizerParameters.IgnoreHolesOnTurningAxis ( )

inline

Returns true if holes on the turning axis are ignored. Thier faces are recognized as bore faces.

The default value is true.

See also

SetIgnoreHolesOnTurningAxis()

IsAxisDefined()

bool cadex.Machining_FeatureRecognizerParameters.IsAxisDefined ( )

inline

Returns true if axis is determined.

See also

Axis(), SetAxis()

MaxGrooveDepth()

double cadex.Machining_FeatureRecognizerParameters.MaxGrooveDepth ( )

inline

Returns a max depth of the groove to be recognized in mm .

The default value is 3 .

See also

SetMaxGrooveDepth()

MaxGrooveWidth()

double cadex.Machining_FeatureRecognizerParameters.MaxGrooveWidth ( )

inline

Returns a max width of the groove to be recognized in mm .

The default value is 5 .

See also

SetMaxGrooveWidth()

MaxHoleSpacedPartsDistanceToDiameterRatio()

double cadex.Machining_FeatureRecognizerParameters.MaxHoleSpacedPartsDistanceToDiameterRatio ( )

inline

Returns the maximum hole spaced parts distance to hole diameter ratio. Hole spaced parts distance is a distance between fully separated hole shapes lying on the same axis and have same diameter. If the distance less or equal than ratio multiplied by diameter, then all separated hole shapes will be recognized as a single hole.

See also

SetMaxHoleSpacedPartsDistanceToDiameterRatio()

MinPartialHoleMaterialPercent()

double cadex.Machining_FeatureRecognizerParameters.MinPartialHoleMaterialPercent ( )

inline

Returns min material percent for a partail hole. Used to discard partial holes with too low material percent.

The default value is 0.2 (20%).

See also

SetMinPartialHoleMaterialPercent()

Operation()

cadex.Machining_OperationType cadex.Machining_FeatureRecognizerParameters.Operation ( )

inline

Returns machining operation type

See also

SetOperation()

PlanarAngleThreshold()

double cadex.Machining_FeatureRecognizerParameters.PlanarAngleThreshold ( )

inline

Returns planar angle threshold in radians. Used to distinguish between flat face and side milled surfaces.

The default value is 0.78539816339 (45 deg).

See also

SetPlanarAngleThreshold()

ProfileRadiusThreshold()

double cadex.Machining_FeatureRecognizerParameters.ProfileRadiusThreshold ( )

inline

Returns profile radius threshold in mm. Used to distinguish profile surfaces for convex faces.

The default value is 25.

See also

SetProfileRadiusThreshold()

SetAxis()

void cadex.Machining_FeatureRecognizerParameters.SetAxis ( cadex.Geom.Axis1d theAxis )

inline

Sets axis.

See also

IsAxisDefined(), Axis()

SetFilletRadiusThreshold()

void cadex.Machining_FeatureRecognizerParameters.SetFilletRadiusThreshold ( double theFilletRadiusThreshold )

inline

Sets fillet radius threshold in mm. The value must be more or equal than zero.

See also

FilletRadiusThreshold()

SetIgnoreHolesOnTurningAxis()

void cadex.Machining_FeatureRecognizerParameters.SetIgnoreHolesOnTurningAxis ( bool theIgnoreHolesOnTurningAxis )

inline

Sets whether holes on the turning axis are ignored.

See also

IgnoreHolesOnTurningAxis()

SetMaxGrooveDepth()

void cadex.Machining_FeatureRecognizerParameters.SetMaxGrooveDepth ( double theMaxGrooveDepth )

inline

Sets max depth of the groove to be recognized in mm .

See also

MaxGrooveDepth()

SetMaxGrooveWidth()

void cadex.Machining_FeatureRecognizerParameters.SetMaxGrooveWidth ( double theMaxGrooveWidth )

inline

Sets max width of the groove to be recognized in mm .

See also

MaxGrooveWidth()

SetMaxHoleSpacedPartsDistanceToDiameterRatio()

void cadex.Machining_FeatureRecognizerParameters.SetMaxHoleSpacedPartsDistanceToDiameterRatio ( double theRatio )

inline

Sets maximum hole spaced parts distance to hole diameter ratio. theRatio must be more or equal than zero.

See also

MaxHoleSpacedPartsDistanceToDiameterRatio()

SetMinPartialHoleMaterialPercent()

void cadex.Machining_FeatureRecognizerParameters.SetMinPartialHoleMaterialPercent ( double theNewMinPartialHoleMaterialPercent )

inline

Sets min material percent for partail hole recognition. The value must be more or equal than zero and less or equal than one.

See also

MinPartialHoleMaterialPercent()

SetOperation()

void cadex.Machining_FeatureRecognizerParameters.SetOperation ( cadex.Machining_OperationType theOperation )

inline

Sets machining operation type

See also

Operation()

Examples

MTKConverter/Program.cs, MTKConverter/main.cxx, machining/dfm_analyzer/main.cxx, and machining/feature_recognizer/main.cxx.

SetPlanarAngleThreshold()

void cadex.Machining_FeatureRecognizerParameters.SetPlanarAngleThreshold ( double thePlanarAngleThreshold )

inline

Sets planar angle threshold in radians. The value must be more or equal than zero.

See also

PlanarAngleThreshold()

SetProfileRadiusThreshold()

void cadex.Machining_FeatureRecognizerParameters.SetProfileRadiusThreshold ( double theProfileRadiusThreshold )

inline

Sets profile radius threshold in mm. The value must be more or equal than zero.

See also

PlanarAngleThreshold()
