cadex.ModelData.Wire Class Reference

Defines a connected set of edges. More...

Inheritance diagram for cadex.ModelData.Wire:

Public Member Functions
	Wire (global::System.IntPtr cPtr, bool cMemoryOwn)
	Wire (cadex.ModelData.Edge theEdge)
bool	Append (cadex.ModelData.Edge theEdge)
bool	Append (cadex.Collections.EdgeList theEdges)
Public Member Functions inherited from cadex.ModelData.Shape
	Shape (global::System.IntPtr cPtr, bool cMemoryOwn)
override int	GetHashCode ()
cadex.ModelData.ShapeType	Type ()
	Returns a shape type. For a null object returns Undefined.
cadex.ModelData.ShapeOrientation	Orientation ()
	Returns orientation flag.
cadex.ModelData.Shape	Reversed ()
	Returns a shape that shares the same geometry and subshape graph but has opposite orientation.
cadex.ModelData.Shape	Oriented (cadex.ModelData.ShapeOrientation theOrientation)
	Returns a shape that shares the same geometry and subshape graph and has specified orientation.
bool	IsEqual (cadex.ModelData.Shape theOther)
	Returns true if the shape shares the same geometry and subshape graph, and has equal orientation.
bool	IsSame (cadex.ModelData.Shape theOther)
	Returns true if the shape shares the same geometry and subshape graph.
void	SetName (cadex.UTF16String theName)
	Sets the name.
cadex.UTF16String	Name ()
	Returns the name.
void	AddAssociatedPMI (cadex.PMI.Element theElement)
	Adds the PMI element.
void	AddAssociatedPMI (cadex.Collections.PMIElementList theElements)
	Adds the PMI elements.
cadex.Collections.PMIElementList	AssociatedPMI ()
	Returns the PMI elements.
override bool	Equals (System.Object o)
Public Member Functions inherited from cadex.BaseObject
	BaseObject (global::System.IntPtr cPtr, bool cMemoryOwn)
void	Dispose ()
bool	IsNull ()
ulong	Id ()
	Return unique identifier of public object.
bool	IsEqual (cadex.BaseObject theObj)
override int	GetHashCode ()
override bool	Equals (System.Object o)

Static Public Member Functions
static cadex.ModelData.Wire	Cast (cadex.ModelData.Shape theShape)
static new bool	CompareType (cadex.BaseObject theObject)
	Check the type of object. Returns true if the specified object is this class type.
Static Public Member Functions inherited from cadex.ModelData.Shape
static bool	CompareType (cadex.BaseObject theObject)
	Check the type of object. Returns true if the specified object is this class type.
static cadex.ModelData.Shape	Cast (cadex.BaseObject theBase)

Protected Member Functions
override void	Dispose (bool disposing)

Detailed Description

Defines a connected set of edges.

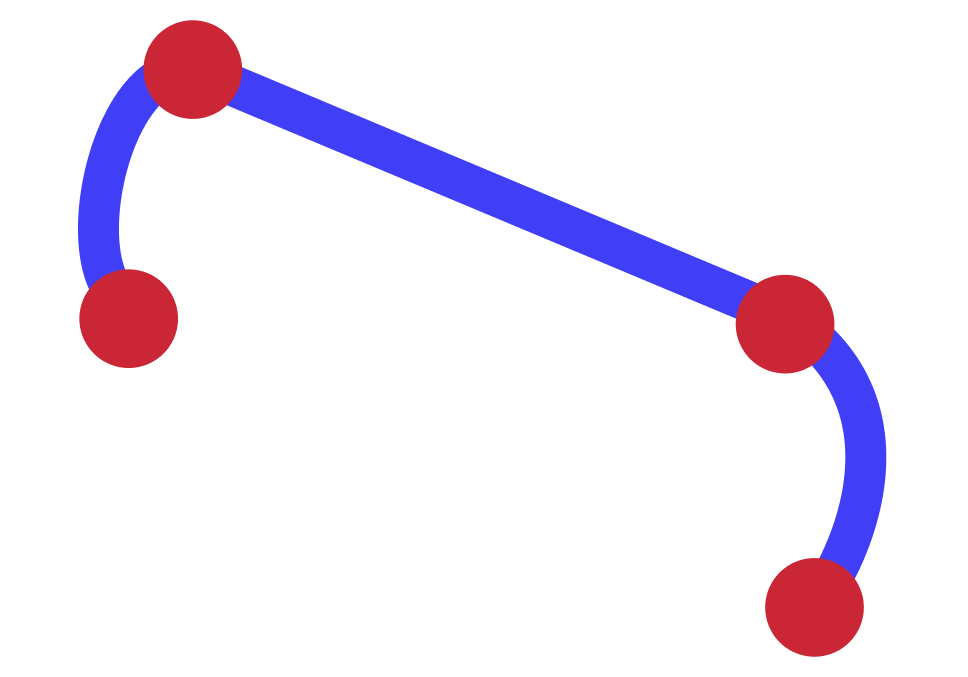

The following image depicts an example of a wire:

Wire

Wire can be used to define a face boundary (i.e. to define a free-form trimming of a surface underlying the face) or just a set of edges.

Wire's direct children are edges which must be connected between each other, i.e. share the same vertices between adjacent edges. Although there is no strict requirement that edges must be oriented in a tail-to-head order this is strongly recommended.

A free wire (not bounding a face) can be either open or closed. A wire bounding a face must be closed.

Examples

exploring/brep_geometry/Program.cs, exploring/brep_geometry/main.cxx, exploring/brep_topology/Program.cs, and exploring/brep_topology/main.cxx.

Member Function Documentation

Dispose()

override void cadex.ModelData.Wire.Dispose ( bool disposing )

inlineprotectedvirtual

Reimplemented from cadex.ModelData.Shape.
