cadex.PMI.SemanticComponent Class Reference

The base class for various component types. More...

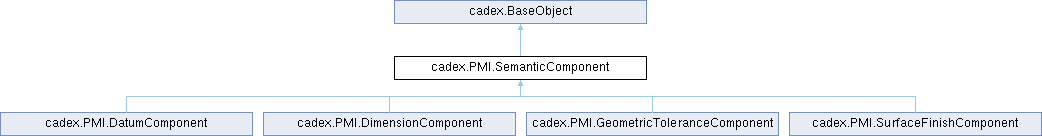

Inheritance diagram for cadex.PMI.SemanticComponent:

Public Member Functions
	SemanticComponent (global::System.IntPtr cPtr, bool cMemoryOwn)
void	AddAttribute (cadex.PMI.SemanticAttribute theAttribute)
	Adds the attribute.
cadex.Collections.PMISemanticAttributeList	Attributes ()
	Returns the attributes.
bool	HasAttributes ()
	Returns true if semantic attributes were added and false otherwise.
uint	NumberOfAttributes ()
	Returns the number of added attributes.
void	Accept (cadex.PMI.SemanticAttributeVisitor theVisitor)
	Accepts the visitor.
void	Accept (cadex.PMI.SemanticComponentVisitor theVisitor)
	Accepts the visitor.
Public Member Functions inherited from cadex.BaseObject
	BaseObject (global::System.IntPtr cPtr, bool cMemoryOwn)
void	Dispose ()
bool	IsNull ()
ulong	Id ()
	Return unique identifier of public object.
bool	IsEqual (cadex.BaseObject theObj)
override int	GetHashCode ()
override bool	Equals (System.Object o)

Static Public Member Functions
static bool	CompareType (cadex.BaseObject theObject)
	Returns true if theObject has the SemanticComponent type.
static cadex.PMI.SemanticComponent	Cast (cadex.BaseObject theBase)

Protected Member Functions
override void	Dispose (bool disposing)

Detailed Description

The base class for various component types.

Contains a collection of PMI semantic attributes that are specific to each derived component.

Examples

exploring/pmi/Program.cs, and exploring/pmi/main.cxx.

Member Function Documentation

Accept() [1/2]

void cadex.PMI.SemanticComponent.Accept ( cadex.PMI.SemanticAttributeVisitor theVisitor )

inline

Accepts the visitor.

The order of visiting will match the order of adding attributes with AddAttribute(). Accepts an attribute visitor.

Examples

exploring/pmi/Program.cs, and exploring/pmi/main.cxx.

Accept() [2/2]

void cadex.PMI.SemanticComponent.Accept ( cadex.PMI.SemanticComponentVisitor theVisitor )

inline

Accepts the visitor.

The order of visiting will match the order of adding attributes with AddAttribute(). Accepts an attribute visitor.

Attributes()

cadex.Collections.PMISemanticAttributeList cadex.PMI.SemanticComponent.Attributes ( )

inline

Returns the attributes.

See also

AddAttribute(), HasAttributes()

Dispose()

override void cadex.PMI.SemanticComponent.Dispose ( bool disposing )

inlineprotectedvirtual

Reimplemented from cadex.BaseObject.

HasAttributes()

bool cadex.PMI.SemanticComponent.HasAttributes ( )

inline

Returns true if semantic attributes were added and false otherwise.

Returns false if IsNull().

See also

AddAttribute(), NumberOfAttributes()

Examples

exploring/pmi/Program.cs, and exploring/pmi/main.cxx.

NumberOfAttributes()

uint cadex.PMI.SemanticComponent.NumberOfAttributes ( )

inline

Returns the number of added attributes.

Returns 0 if IsNull().

See also

AddAttribute(), HasAttributes(),

Attributes()
