Hatch Hatch.hxx cadex/Drawing/Hatch.hxx. More...

Inheritance diagram for manufacturingtoolkit.CadExMTK.Drawing_Hatch:

Public Member Functions
	__init__ (self)
	Constructor.

	AddContour (self, *args)

	NumberOfContours (self)
	Returns the number of hatch contours.

	Contour (self, theIndex)
	Returns the contour.

	TypeOfContour (self, theIndex)
	Returns the type of hatch contour.

	SetStyle (self, theStyle)

	Style (self)
	Returns the style for the hatch pattern.

	SetPattern (self, thePattern)

	Pattern (self)
	Returns the pattern of the hatch.

	SetScale (self, theScale)
	Set the scale of the hatch.

	Scale (self)
	Returns the scale of the hatch.

	SetAngle (self, theAngle)
	Set the angle of the hatch.

	Angle (self)
	Returns the angle of the hatch.

	AddDefinitionLine (self, theDefinitionLine)

	NumberOfDefenitionLines (self)
	Returns the number of definition lines.

	DefinitionLine (self, theIndex)
	Returns the definition line.

Public Member Functions inherited from manufacturingtoolkit.CadExMTK.Drawing_Element
	SetUuid (self, theUuid)

	Uuid (self)

	Accept (self, theVisitor)

Public Member Functions inherited from manufacturingtoolkit.CadExMTK.BaseObject
	Id (self)
	Return unique identifier of public object.

	IsNull (self)

	IsEqual (self, theObj)

	__hash__ (self)

	__eq__ (self, other)

Static Public Member Functions
	CompareType (theObject)

	Cast (theBase)

Static Public Attributes
	PatternType_Solid = _CadExMTK.Drawing_Hatch_PatternType_Solid

	PatternType_ANSI_31 = _CadExMTK.Drawing_Hatch_PatternType_ANSI_31

	PatternType_ANSI_32 = _CadExMTK.Drawing_Hatch_PatternType_ANSI_32

	PatternType_ANSI_33 = _CadExMTK.Drawing_Hatch_PatternType_ANSI_33

	PatternType_ANSI_34 = _CadExMTK.Drawing_Hatch_PatternType_ANSI_34

	PatternType_ANSI_35 = _CadExMTK.Drawing_Hatch_PatternType_ANSI_35

	PatternType_ANSI_36 = _CadExMTK.Drawing_Hatch_PatternType_ANSI_36

	PatternType_ANSI_37 = _CadExMTK.Drawing_Hatch_PatternType_ANSI_37

	PatternType_ANSI_38 = _CadExMTK.Drawing_Hatch_PatternType_ANSI_38

	PatternType_ISO_02 = _CadExMTK.Drawing_Hatch_PatternType_ISO_02

	PatternType_ISO_03 = _CadExMTK.Drawing_Hatch_PatternType_ISO_03

	PatternType_ISO_04 = _CadExMTK.Drawing_Hatch_PatternType_ISO_04

	PatternType_ISO_05 = _CadExMTK.Drawing_Hatch_PatternType_ISO_05

	PatternType_ISO_06 = _CadExMTK.Drawing_Hatch_PatternType_ISO_06

	PatternType_ISO_07 = _CadExMTK.Drawing_Hatch_PatternType_ISO_07

	PatternType_ISO_08 = _CadExMTK.Drawing_Hatch_PatternType_ISO_08

	PatternType_ISO_09 = _CadExMTK.Drawing_Hatch_PatternType_ISO_09

	PatternType_ISO_10 = _CadExMTK.Drawing_Hatch_PatternType_ISO_10

	PatternType_ISO_11 = _CadExMTK.Drawing_Hatch_PatternType_ISO_11

	PatternType_ISO_12 = _CadExMTK.Drawing_Hatch_PatternType_ISO_12

	PatternType_ISO_13 = _CadExMTK.Drawing_Hatch_PatternType_ISO_13

	PatternType_ISO_14 = _CadExMTK.Drawing_Hatch_PatternType_ISO_14

	PatternType_ISO_15 = _CadExMTK.Drawing_Hatch_PatternType_ISO_15

	PatternType_Custom = _CadExMTK.Drawing_Hatch_PatternType_Custom

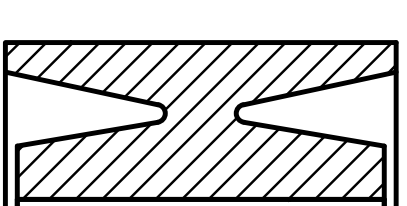

	StyleType_Standard = _CadExMTK.Drawing_Hatch_StyleType_Standard

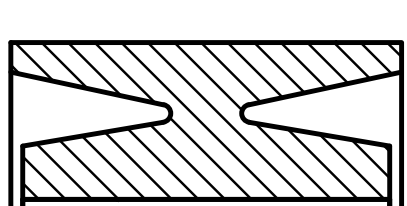

	StyleType_Mirrored = _CadExMTK.Drawing_Hatch_StyleType_Mirrored

	StyleType_Double = _CadExMTK.Drawing_Hatch_StyleType_Double

	ContourType_Inner = _CadExMTK.Drawing_Hatch_ContourType_Inner

	ContourType_Outer = _CadExMTK.Drawing_Hatch_ContourType_Outer

Detailed Description

Hatch Hatch.hxx cadex/Drawing/Hatch.hxx.

Represents an area filled with a pattern.

The hatch pattern can be composed of solid, dashed or dash-doted lines. The pattern can be mirrored or composed with its mirror image to create double hatch. It follows the scheme used by AutoCAD to represent the set of ANSI-standard hatch patterns.

Three types of pattern styles are supported:
