manufacturingtoolkit.CadExMTK.Drawing_PiecewiseContour Class Reference

PiecewiseContour Geometry.hxx cadex/Drawing/Geometry.hxx. More...

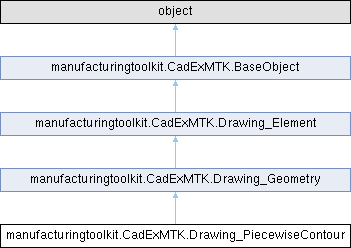

Inheritance diagram for manufacturingtoolkit.CadExMTK.Drawing_PiecewiseContour:

Public Member Functions
	__init__ (self)
	Constructor.
	IsClosed (self)
	Returns true if the contour is closed.
	AddCurve (self, theCurve)
	NumberOfCurves (self)
	Curve (self, theIndex)
Public Member Functions inherited from manufacturingtoolkit.CadExMTK.Drawing_Element
	SetUuid (self, theUuid)
	Uuid (self)
	Accept (self, theVisitor)
Public Member Functions inherited from manufacturingtoolkit.CadExMTK.BaseObject
	Id (self)
	Return unique identifier of public object.
	IsNull (self)
	IsEqual (self, theObj)
	__hash__ (self)
	__eq__ (self, other)

Static Public Member Functions
	CompareType (theObject)
	Cast (*args)

Detailed Description

PiecewiseContour Geometry.hxx cadex/Drawing/Geometry.hxx.

Describes drawing elements composed connected 2D curves.

Restriction - can only contain Geom.Curve2d if it's trimmed (i.e., IsTrimmed() returns true) and Geom.BSplineCurve2d.

Constructor & Destructor Documentation

__init__()

manufacturingtoolkit.CadExMTK.Drawing_PiecewiseContour.__init__

(

self

)

Constructor.

Reimplemented from manufacturingtoolkit.CadExMTK.Drawing_Geometry.

Member Function Documentation

Cast()

manufacturingtoolkit.CadExMTK.Drawing_PiecewiseContour.Cast ( * args )

static

Reimplemented from manufacturingtoolkit.CadExMTK.Drawing_Geometry.

CompareType()

manufacturingtoolkit.CadExMTK.Drawing_PiecewiseContour.CompareType ( theObject )

static

Reimplemented from manufacturingtoolkit.CadExMTK.Drawing_Element.

---

The documentation for this class was generated from the following file:

• CadExMTK.py
