Conic Conic.hxx cadex/Geom/Conic.hxx. More...

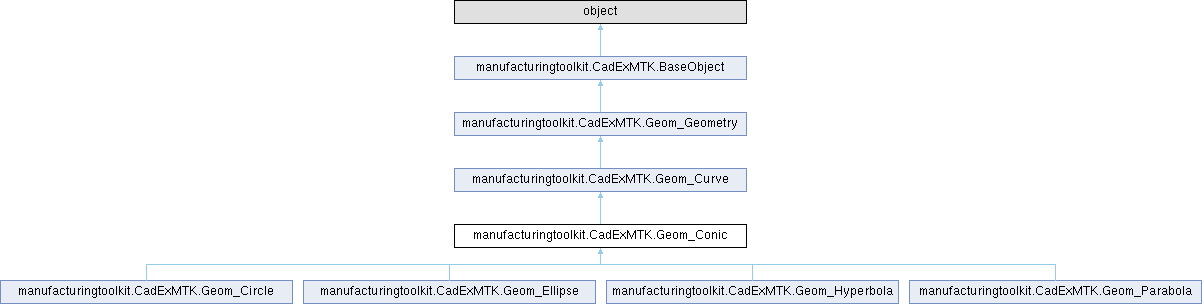

Inheritance diagram for manufacturingtoolkit.CadExMTK.Geom_Conic:

Public Member Functions
	__init__ (self, args, *kwargs)

	Position (self)
	Returns an axis.

	Parameter (self, thePoint)
	Returns parameter for a 3D point.

Public Member Functions inherited from manufacturingtoolkit.CadExMTK.Geom_Curve
	Type (self)
	Returns a curve type.

	Continuity (self)
	Returns a continuity type of the curve.

	Value (self, theParameter)
	Evaluates a point on the curve.

	Normal (self, theParameter)
	Returns the normal direction theNormal of parameter theParam.

	Curvature (self, theParameter)
	Returns the curvature value of parameter theParam.

	IsPeriodic (self)
	Returns true if the curve is periodic.

	UMin (self)
	Returns a minimum parameter of a definition domain.

	UMax (self)
	Returns a maximum parameter of a definition domain.

	Domain (self)
	Returns a definition domain.

	IsTrimmed (self)
	Returns whether curve is trimmed or not.

	SetTrim (self, theFirst, theLast)
	Trims curve with [theFirst, theLast] section.

	Transform (self, theTransformation)
	Applies transformation matrix to this object.

	Transformed (self, theTransformation)

	D0 (self, theParameter, theValue)
	Returns the point theValue of parameter theParam.

	D1 (self, theParameter, theValue, theD1)

	D2 (self, theParameter, theValue, theD1, theD2)
	Returns the point theValue of parameter theParam, the first theD1 and second theD2 derivatives.

	DN (self, theParameter, theDerivativeOrder, theValue, theD)
	Returns true if calculation completed successfully.

	Mirror (self, *args)

	Mirrored (self, *args)

	Rotate (self, theAxis, theAngle)

	Rotated (self, theAxis, theAngle)

	Translate (self, theVector)

	Translated (self, theVector)

	Scale (self, thePoint, theScale)

	Scaled (self, thePoint, theScale)

Public Member Functions inherited from manufacturingtoolkit.CadExMTK.BaseObject
	Id (self)
	Return unique identifier of public object.

	IsNull (self)

	IsEqual (self, theObj)

	__hash__ (self)

	__eq__ (self, other)

Static Public Member Functions
	CompareType (theObject)

	Cast (theBase)

Detailed Description

Conic Conic.hxx cadex/Geom/Conic.hxx.

Base class for 3D conic curves

A conic curve has an axis returned by Position(). The curve lies on a plane perpendicular to the Z-axis of the axis placement. Parametrization is defined taking into account X-axis of the axis.
