manufacturingtoolkit.CadExMTK.Geom_CylindricalSurface Class Reference

CylindricalSurface CylindricalSurface.hxx cadex/Geom/CylindricalSurface.hxx. More...

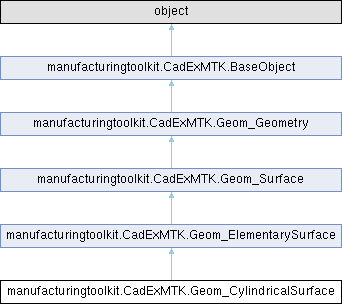

Inheritance diagram for manufacturingtoolkit.CadExMTK.Geom_CylindricalSurface:

Public Member Functions
	__init__ (self, thePosition, theRadius)
	Constructor.
	Radius (self)
	Returns radius.
Public Member Functions inherited from manufacturingtoolkit.CadExMTK.Geom_ElementarySurface
	Position (self)
	Returns a surface axis.
	Location (self)
	Returns origin point.
	Direction (self)
	Returns Z direction of the axis placement.
	Parameter (self, thePoint)
Public Member Functions inherited from manufacturingtoolkit.CadExMTK.Geom_Surface
	Type (self)
	Returns a surface type.
	Continuity (self)
	Returns a continuity type of the surface.
	Value (self, theParameterU, theParameterV)
	Evaluates a point on the surface.
	Normal (self, theParameterU, theParameterV)
	IsUPeriodic (self)
	Returns true if the surface is periodic in U direction.
	IsVPeriodic (self)
	Returns true if the surface is periodic in V direction.
	UMin (self)
	Returns a minimum parameter of a definition domain in U direction.
	UMax (self)
	Returns a maximum parameter of a definition domain in U direction.
	VMin (self)
	Returns a minimum parameter of a definition domain in V direction.
	VMax (self)
	Returns a maximum parameter of a definition domain in V direction.
	Domain (self)
	Returns a definition domain.
	IsTrimmed (self)
	Returns whether surface is trimmed or not.
	SetTrim (self, theUFirst, theULast, theVFirst, theVLast)
	Trims surface with [theUFirst, theULast] x [theVFirst, theVLast] section.
	Transform (self, theTransformation)
	Applies transformation matrix to this object.
	Transformed (self, theTransformation)
	Returns a copy this object after applying transformation.
	D0 (self, theParameterU, theParameterV, theValue)
	D1 (self, theParameterU, theParameterV, theValue, theD1U, theD1V)
	D2 (self, theParameterU, theParameterV, theValue, theD1U, theD1V, theD2U, theD2V, theD2UV)
	DN (self, theParameterU, theParameterV, theDerivativeOrder, theValue, theD)
	Returns true if calculation was passed succsesfully, the returned vectors gives the value of the derivative for the order of derivation theDerivativeOrder.
	Curvature (self, *args)
	Mirror (self, *args)
	Mirrored (self, *args)
	Rotate (self, theAxis, theAngle)
	Rotated (self, theAxis, theAngle)
	Translate (self, theVector)
	Translated (self, theVector)
	Scale (self, thePoint, theScale)
	Scaled (self, thePoint, theScale)
Public Member Functions inherited from manufacturingtoolkit.CadExMTK.BaseObject
	Id (self)
	Return unique identifier of public object.
	IsNull (self)

Static Public Member Functions
	CompareType (theObject)
	Cast (theBase)

Detailed Description

CylindricalSurface CylindricalSurface.hxx cadex/Geom/CylindricalSurface.hxx.

Defines a cylindrical surface.

A cylindrical surface is defined by an axis placement and a radius. The following image depicts a cylindrical surface example:

Cylindrical surface

A cylindrical surface is parametrized as follows: \(\mathbf{S}(u,v) = \mathbf{P} + R\cos(u)\mathbf{X} + R\sin(u)\mathbf{Y} + v\mathbf{Z}\), where

• \(\mathbf{P}\) is an origin point,
• \(\mathbf{X}\), \(\mathbf{Y}\) and \(\mathbf{Z}\) are directions (unit vectors) of X, Y and Z axes respectively,
• \(R\) is a radius,
• \(u\) belongs to \([0, 2\pi]\),
• \(v\) belongs to \((-\infty, +\infty)\).

U-parameter is an angle along the circle at any parameter V and V-parameter is a length along the Dz axis. Thus, U-isolines are lines and V-isoline are circles.

V-isoline at \(v=0\) is a circle of radius \(R\) in the plane defined by an axis placement.

Cylindrical surface is U-periodical with period \(2\pi\).

If a face lying on a cylindrical surface takes full U-period then the boundary wire will contain a seam-edge.

Constructor & Destructor Documentation

__init__()

manufacturingtoolkit.CadExMTK.Geom_CylindricalSurface.__init__	(		self,
			thePosition,
			theRadius )

Constructor.

Reimplemented from manufacturingtoolkit.CadExMTK.Geom_ElementarySurface.

Member Function Documentation

Cast()

manufacturingtoolkit.CadExMTK.Geom_CylindricalSurface.Cast ( theBase )

static

Reimplemented from manufacturingtoolkit.CadExMTK.Geom_ElementarySurface.

CompareType()

manufacturingtoolkit.CadExMTK.Geom_CylindricalSurface.CompareType ( theObject )

static

Reimplemented from manufacturingtoolkit.CadExMTK.Geom_ElementarySurface.

---

The documentation for this class was generated from the following file:

• CadExMTK.py
