manufacturingtoolkit.CadExMTK.Machining_Countersink Class Reference

Machining_Countersink. More...

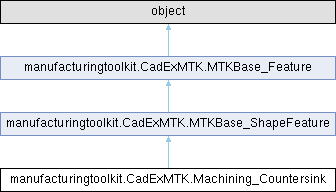

Inheritance diagram for manufacturingtoolkit.CadExMTK.Machining_Countersink:

Public Member Functions
	__init__ (self, *args)
	Overload 1: Constructor.
	Radius (self)
	Returns countersink radius in mm .
	SetRadius (self, theRadius)
	Sets radius for countersink in mm.
	Depth (self)
	Returns countersink depth in mm .
	SetDepth (self, theDepth)
	Sets depth for countersink in mm.
	HasAxis (self)
	Returns true if axis is determined for countersink.
	Axis (self)
	Returns countersink axis.
	SetAxis (self, theAxis)
Public Member Functions inherited from manufacturingtoolkit.CadExMTK.MTKBase_ShapeFeature
	Shape (self)
	Returns shape of the feature.
	SetShape (self, theShape)
Public Member Functions inherited from manufacturingtoolkit.CadExMTK.MTKBase_Feature
	Nullify (self)
	Resets reference to implementation object.
	IsNull (self)
	Returns true if the object is nullified.
	IsEqual (self, theObject)
	IsNotEqual (self, theObject)

Static Public Member Functions
	CompareType (theFeature)
	Returns true if theFeature is a machining countersink.
	Cast (theBase)

Detailed Description

Machining_Countersink.

Describes a machining countersink.

A conical hole cut into a manufactured object, or the cutter used to cut such a hole. A common use is to allow the head of a countersunk bolt, screw or rivet, when placed in the hole, to sit flush with or below the surface of the surrounding material.

Shape() method returns ModelData.Shell for this class.

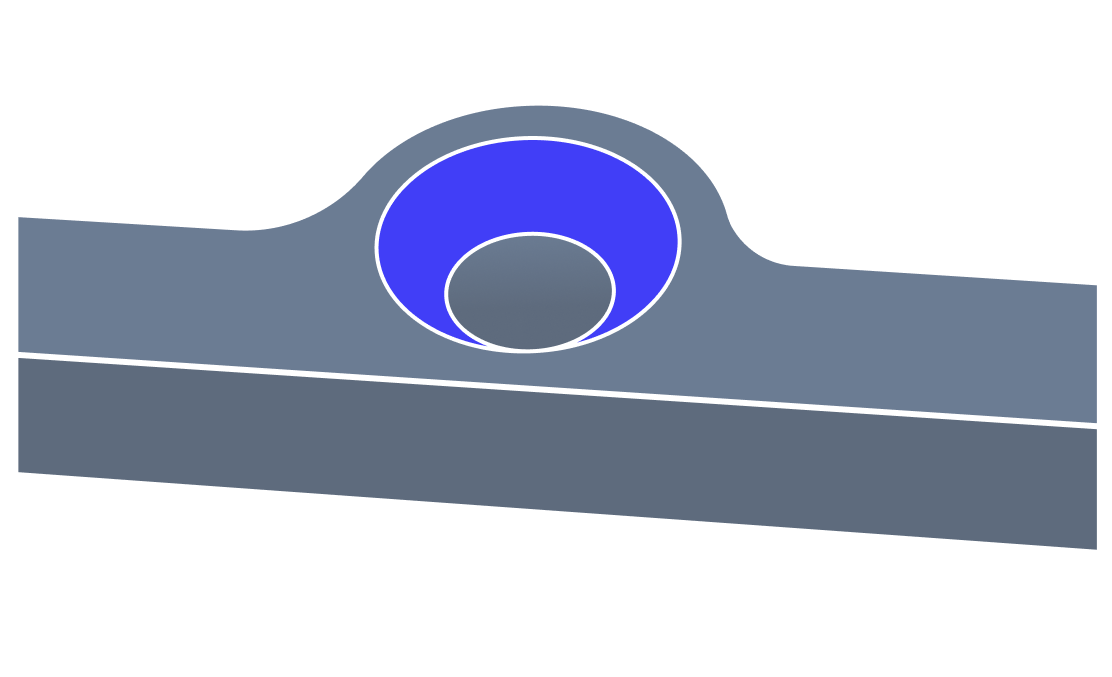

Countersink

Countersink have the following basic parameters: radius in mm, depth in mm and axis.

Countersink parameters

Constructor & Destructor Documentation

__init__()

manufacturingtoolkit.CadExMTK.Machining_Countersink.__init__	(		self,
		*	args )

Overload 1: Constructor.

|

Overload 2: Constructor.

Reimplemented from manufacturingtoolkit.CadExMTK.MTKBase_ShapeFeature.

Member Function Documentation

Axis()

manufacturingtoolkit.CadExMTK.Machining_Countersink.Axis

(

self

)

Returns countersink axis.

See also

HasAxis(), SetAxis()

Cast()

manufacturingtoolkit.CadExMTK.Machining_Countersink.Cast ( theBase )

static

Reimplemented from manufacturingtoolkit.CadExMTK.MTKBase_ShapeFeature.

CompareType()

manufacturingtoolkit.CadExMTK.Machining_Countersink.CompareType ( theFeature )

static

Returns true if theFeature is a machining countersink.

Reimplemented from manufacturingtoolkit.CadExMTK.MTKBase_ShapeFeature.

Depth()

manufacturingtoolkit.CadExMTK.Machining_Countersink.Depth

(

self

)

Returns countersink depth in mm .

See also

SetDepth()

HasAxis()

manufacturingtoolkit.CadExMTK.Machining_Countersink.HasAxis

(

self

)

Returns true if axis is determined for countersink.

See also

Axis(), SetAxis()

Radius()

manufacturingtoolkit.CadExMTK.Machining_Countersink.Radius

(

self

)

Returns countersink radius in mm .

See also

SetRadius()

SetDepth()

manufacturingtoolkit.CadExMTK.Machining_Countersink.SetDepth	(		self,
			theDepth )

Sets depth for countersink in mm.

The value must be more than zero.

See also

Depth()

SetRadius()

manufacturingtoolkit.CadExMTK.Machining_Countersink.SetRadius	(		self,
			theRadius )

Sets radius for countersink in mm.

The value must be more than zero.

See also

Radius()

---

The documentation for this class was generated from the following file:

• CadExMTK.py
