manufacturingtoolkit.CadExMTK.Machining_Groove Class Reference

Machining_Groove. More...

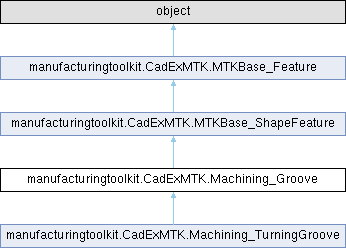

Inheritance diagram for manufacturingtoolkit.CadExMTK.Machining_Groove:

Public Member Functions
	__init__ (self, *args)
	Overload 1: Constructor.
	Depth (self)
	Returns the groove depth in mm .
	SetDepth (self, theDepth)
	Sets the groove depth in mm .
	Width (self)
	Returns the groove width in mm .
	SetWidth (self, theWidth)
	Sets the groove width in mm .
	Sidewalls (self)
	Returns the shape containing the groove sidewalls.
	SetSidewalls (self, theSidewalls)
	Bottom (self)
	Returns groove bottom shape.
	SetBottom (self, theBottom)
Public Member Functions inherited from manufacturingtoolkit.CadExMTK.MTKBase_ShapeFeature
	Shape (self)
	Returns shape of the feature.
	SetShape (self, theShape)
Public Member Functions inherited from manufacturingtoolkit.CadExMTK.MTKBase_Feature
	Nullify (self)
	Resets reference to implementation object.
	IsNull (self)
	Returns true if the object is nullified.
	IsEqual (self, theObject)
	IsNotEqual (self, theObject)

Static Public Member Functions
	CompareType (theFeature)
	Returns true if theFeature is a machining groove.
	Cast (theBase)

Detailed Description

Machining_Groove.

Describes a machining groove. A groove is a narrow linear channel or cut made in a material.

See also

Machining_TurningGroove

Constructor & Destructor Documentation

__init__()

manufacturingtoolkit.CadExMTK.Machining_Groove.__init__	(		self,
		*	args )

Overload 1: Constructor.

|

Overload 2: Constructor.

Reimplemented from manufacturingtoolkit.CadExMTK.MTKBase_ShapeFeature.

Member Function Documentation

Bottom()

manufacturingtoolkit.CadExMTK.Machining_Groove.Bottom

(

self

)

Returns groove bottom shape.

The shape can be a single face or shell.

See also

SetBottom()

Cast()

manufacturingtoolkit.CadExMTK.Machining_Groove.Cast ( theBase )

static

Reimplemented from manufacturingtoolkit.CadExMTK.MTKBase_ShapeFeature.

CompareType()

manufacturingtoolkit.CadExMTK.Machining_Groove.CompareType ( theFeature )

static

Returns true if theFeature is a machining groove.

Reimplemented from manufacturingtoolkit.CadExMTK.MTKBase_ShapeFeature.

Reimplemented in manufacturingtoolkit.CadExMTK.Machining_TurningGroove.

Depth()

manufacturingtoolkit.CadExMTK.Machining_Groove.Depth

(

self

)

Returns the groove depth in mm .

See also

SetDepth()

SetDepth()

manufacturingtoolkit.CadExMTK.Machining_Groove.SetDepth	(		self,
			theDepth )

Sets the groove depth in mm .

The value must be greater than zero.

See also

Depth()

SetWidth()

manufacturingtoolkit.CadExMTK.Machining_Groove.SetWidth	(		self,
			theWidth )

Sets the groove width in mm .

The value must be greater than zero.

See also

Width()

Sidewalls()

manufacturingtoolkit.CadExMTK.Machining_Groove.Sidewalls

(

self

)

Returns the shape containing the groove sidewalls.

The shape can be a single face or shell.

See also

SetSidewalls()

Width()

manufacturingtoolkit.CadExMTK.Machining_Groove.Width

(

self

)

Returns the groove width in mm .

See also

SetWidth()

---

The documentation for this class was generated from the following file:

• CadExMTK.py
