manufacturingtoolkit.CadExMTK.Machining_Pocket Class Reference

Machining_Pocket. More...

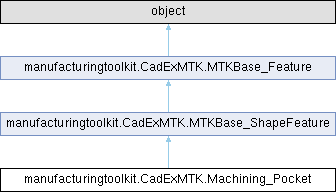

Inheritance diagram for manufacturingtoolkit.CadExMTK.Machining_Pocket:

Public Member Functions
	__init__ (self, *args)
	Overload 1: Constructor.
	Width (self)
	Returns the pocket width in mm.
	SetWidth (self, theWidth)
	Sets width for pocket in mm.
	Length (self)
	Returns the pocket length in mm .
	SetLength (self, theLength)
	Sets length for pocket in mm.
	Depth (self)
	Returns the pocket depth in mm .
	SetDepth (self, theDepth)
	Sets depth for pocket in mm.
	HasAxis (self)
	Returns true if z-axis is determined for pocket.
	Axis (self)
	Returns z-axis of a pocket - the axis along which the depth is determined.
	SetAxis (self, theAxis)
	Type (self)
	Returns the pocket type.
	SetType (self, theType)
	Sets type for pocket.
Public Member Functions inherited from manufacturingtoolkit.CadExMTK.MTKBase_ShapeFeature
	Shape (self)
	Returns shape of the feature.
	SetShape (self, theShape)
Public Member Functions inherited from manufacturingtoolkit.CadExMTK.MTKBase_Feature
	Nullify (self)
	Resets reference to implementation object.
	IsNull (self)
	Returns true if the object is nullified.
	IsEqual (self, theObject)
	IsNotEqual (self, theObject)

Static Public Member Functions
	CompareType (theFeature)
	Returns true if theFeature is a machining Pocket.
	Cast (theBase)

Detailed Description

Machining_Pocket.

Describes a machining pocket. A pocket is a feature obtained by milling the material inside an arbitrarily closed boundary on a flat surface of a workpiece removed to a fixed depth.

Shape() method returns ModelData.Shell for this class.

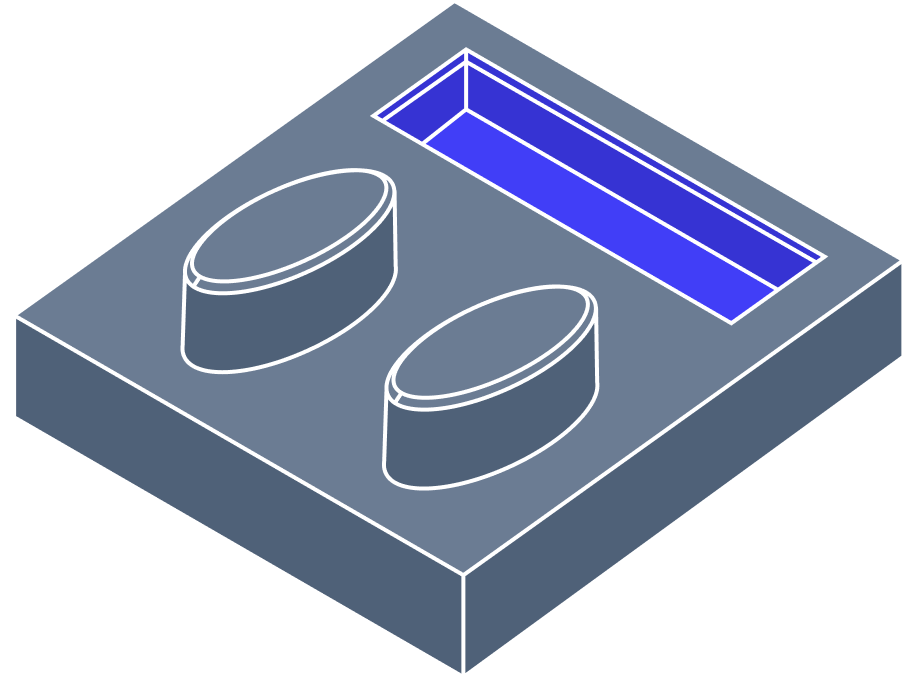

Pocket

Pocket have the following basic parameters: width in mm, length in mm, depth in mm and axis.

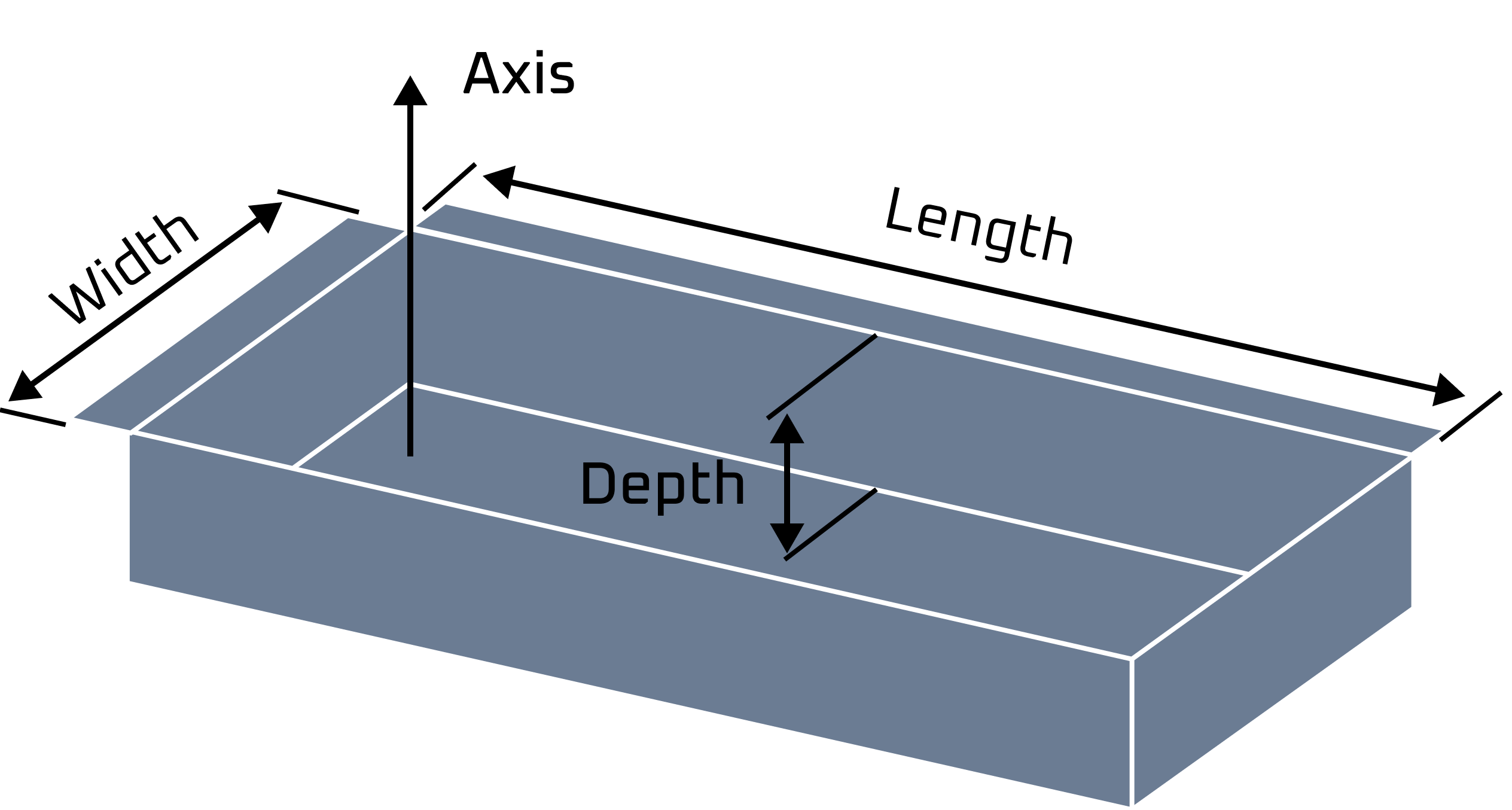

Pocket parameters

Constructor & Destructor Documentation

__init__()

manufacturingtoolkit.CadExMTK.Machining_Pocket.__init__	(		self,
		*	args )

Overload 1: Constructor.

|

Overload 2: Constructor.

Reimplemented from manufacturingtoolkit.CadExMTK.MTKBase_ShapeFeature.

Member Function Documentation

Axis()

manufacturingtoolkit.CadExMTK.Machining_Pocket.Axis

(

self

)

Returns z-axis of a pocket - the axis along which the depth is determined.

See also

HasAxis(), SetAxis()

Cast()

manufacturingtoolkit.CadExMTK.Machining_Pocket.Cast ( theBase )

static

Reimplemented from manufacturingtoolkit.CadExMTK.MTKBase_ShapeFeature.

CompareType()

manufacturingtoolkit.CadExMTK.Machining_Pocket.CompareType ( theFeature )

static

Returns true if theFeature is a machining Pocket.

Reimplemented from manufacturingtoolkit.CadExMTK.MTKBase_ShapeFeature.

Depth()

manufacturingtoolkit.CadExMTK.Machining_Pocket.Depth

(

self

)

Returns the pocket depth in mm .

See also

SetDepth()

HasAxis()

manufacturingtoolkit.CadExMTK.Machining_Pocket.HasAxis

(

self

)

Returns true if z-axis is determined for pocket.

See also

Axis(), SetAxis()

Length()

manufacturingtoolkit.CadExMTK.Machining_Pocket.Length

(

self

)

Returns the pocket length in mm .

See also

SetLength()

SetDepth()

manufacturingtoolkit.CadExMTK.Machining_Pocket.SetDepth	(		self,
			theDepth )

Sets depth for pocket in mm.

The value must be more than zero.

See also

Depth()

SetLength()

manufacturingtoolkit.CadExMTK.Machining_Pocket.SetLength	(		self,
			theLength )

Sets length for pocket in mm.

The value must be more than zero.

See also

Length()

SetType()

manufacturingtoolkit.CadExMTK.Machining_Pocket.SetType	(		self,
			theType )

Sets type for pocket.

See also

Type()

SetWidth()

manufacturingtoolkit.CadExMTK.Machining_Pocket.SetWidth	(		self,
			theWidth )

Sets width for pocket in mm.

The value must be more than zero.

See also

Width()

Type()

manufacturingtoolkit.CadExMTK.Machining_Pocket.Type

(

self

)

Returns the pocket type.

See also

SetType()

Width()

manufacturingtoolkit.CadExMTK.Machining_Pocket.Width

(

self

)

Returns the pocket width in mm.

See also

SetWidth()

---

The documentation for this class was generated from the following file:

• CadExMTK.py
