manufacturingtoolkit.CadExMTK.ModelData_Assembly Class Reference

Assembly Assembly.hxx cadex/ModelData/Assembly.hxx. More...

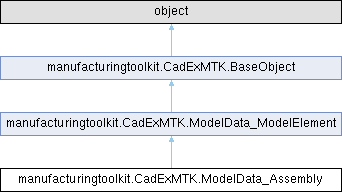

Inheritance diagram for manufacturingtoolkit.CadExMTK.ModelData_Assembly:

Public Member Functions
	__init__ (self, *args)
	AddInstance (self, *args)
	Overload 1: Adds a new child element into the assembly.
	RemoveInstance (self, theInstance)
	Removes an instance from an assembly.
	Instances (self)
	Returns a vector of instances.
	NumberOfInstances (self)
	Returns number of instances in this assembly.
Public Member Functions inherited from manufacturingtoolkit.CadExMTK.ModelData_ModelElement
	SetName (self, theName)
	Sets a name.
	Name (self)
	Returns a name.
	SetUuid (self, theUuid)
	Uuid (self)
	Returns an object uuid.
	SetPMI (self, thePMI)
	PMI (self)
	Returns the object PMI.
	Accept (self, theVisitor)
Public Member Functions inherited from manufacturingtoolkit.CadExMTK.BaseObject
	Id (self)
	Return unique identifier of public object.
	IsNull (self)
	IsEqual (self, theObj)
	__hash__ (self)
	__eq__ (self, other)

Static Public Member Functions
	CompareType (theObject)
	Returns true if theObject is an assembly.
	Cast (theBase)

Detailed Description

Assembly Assembly.hxx cadex/ModelData/Assembly.hxx.

Defines a group of model element.

Direct children of assembly are always instances which can refer to nested sub-assemblies or parts.

Constructor & Destructor Documentation

__init__()

manufacturingtoolkit.CadExMTK.ModelData_Assembly.__init__	(		self,
		*	args )

Reimplemented from manufacturingtoolkit.CadExMTK.ModelData_ModelElement.

Member Function Documentation

AddInstance()

manufacturingtoolkit.CadExMTK.ModelData_Assembly.AddInstance	(		self,
		*	args )

Overload 1: Adds a new child element into the assembly.

|

Overload 2: Adds a new part into the assembly. |

Overload 3: Adds a new part into the assembly. |

Overload 4: Adds a new assembly into the assembly. |

Overload 5: Adds a new assembly into the assembly.

Cast()

manufacturingtoolkit.CadExMTK.ModelData_Assembly.Cast ( theBase )

static

Reimplemented from manufacturingtoolkit.CadExMTK.ModelData_ModelElement.

CompareType()

manufacturingtoolkit.CadExMTK.ModelData_Assembly.CompareType ( theObject )

static

Returns true if theObject is an assembly.

Reimplemented from manufacturingtoolkit.CadExMTK.ModelData_ModelElement.

---

The documentation for this class was generated from the following file:

• CadExMTK.py
