manufacturingtoolkit.CadExMTK.SheetMetal_Bead Class Reference

SheetMetal_Bead. More...

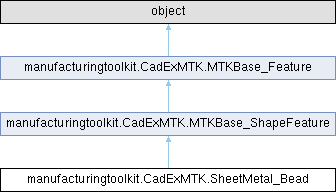

Inheritance diagram for manufacturingtoolkit.CadExMTK.SheetMetal_Bead:

Public Member Functions
	__init__ (self, *args)
	Overload 1:
	Depth (self)
	Returns the bead depth in mm .
	SetDepth (self, theDepth)
	Sets bead depth in mm.
Public Member Functions inherited from manufacturingtoolkit.CadExMTK.MTKBase_ShapeFeature
	Shape (self)
	Returns shape of the feature.
	SetShape (self, theShape)
Public Member Functions inherited from manufacturingtoolkit.CadExMTK.MTKBase_Feature
	Nullify (self)
	Resets reference to implementation object.
	IsNull (self)
	Returns true if the object is nullified.
	IsEqual (self, theObject)
	IsNotEqual (self, theObject)

Static Public Member Functions
	CompareType (theFeature)
	Returns true if theFeature is a bead.
	Cast (theBase)

Detailed Description

SheetMetal_Bead.

Describes a sheet metal bead.

Beads are recesses in sheet metal. They can be produced with punching machine. Line-shaped beads are used to make sheet metal surfaces more rugged and durable.

Shape() method returns ModelData.Shell for this class.

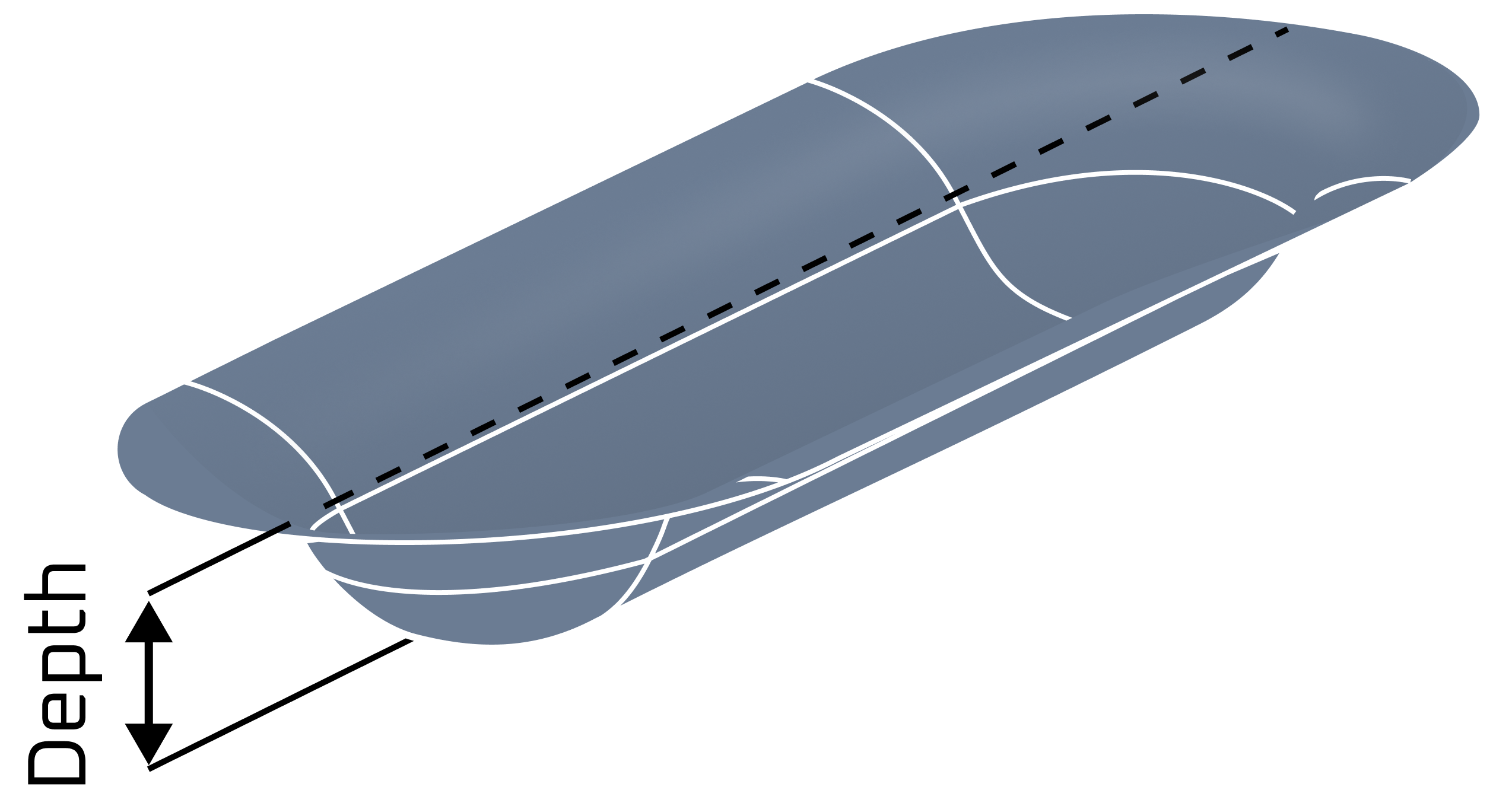

Bead

Beads have the following basic parameter: depth in mm.

Bead parameter

Constructor & Destructor Documentation

__init__()

manufacturingtoolkit.CadExMTK.SheetMetal_Bead.__init__	(		self,
		*	args )

Overload 1:

Constructor. |

Overload 2: Constructor.

Reimplemented from manufacturingtoolkit.CadExMTK.MTKBase_ShapeFeature.

Member Function Documentation

Cast()

manufacturingtoolkit.CadExMTK.SheetMetal_Bead.Cast ( theBase )

static

Reimplemented from manufacturingtoolkit.CadExMTK.MTKBase_ShapeFeature.

CompareType()

manufacturingtoolkit.CadExMTK.SheetMetal_Bead.CompareType ( theFeature )

static

Returns true if theFeature is a bead.

Reimplemented from manufacturingtoolkit.CadExMTK.MTKBase_ShapeFeature.

Depth()

manufacturingtoolkit.CadExMTK.SheetMetal_Bead.Depth

(

self

)

Returns the bead depth in mm .

See also

Depth()

SetDepth()

manufacturingtoolkit.CadExMTK.SheetMetal_Bead.SetDepth	(		self,
			theDepth )

Sets bead depth in mm.

The value must be more than zero, otherwise nothing happens.

See also

Depth()

---

The documentation for this class was generated from the following file:

• CadExMTK.py
