manufacturingtoolkit.CadExMTK.SheetMetal_Cutout Class Reference

SheetMetal_Cutout. More...

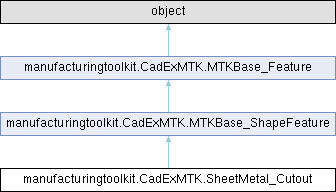

Inheritance diagram for manufacturingtoolkit.CadExMTK.SheetMetal_Cutout:

Public Member Functions
	__init__ (self, *args)
	Overload 1: Constructor.
	Perimeter (self)
	Returns the cutout perimeter in mm .
	SetPerimeter (self, thePerimeter)
	Sets the cutout perimeter in mm .
Public Member Functions inherited from manufacturingtoolkit.CadExMTK.MTKBase_ShapeFeature
	Shape (self)
	Returns shape of the feature.
	SetShape (self, theShape)
Public Member Functions inherited from manufacturingtoolkit.CadExMTK.MTKBase_Feature
	Nullify (self)
	Resets reference to implementation object.
	IsNull (self)
	Returns true if the object is nullified.
	IsEqual (self, theObject)
	IsNotEqual (self, theObject)

Static Public Member Functions
	CompareType (theFeature)
	Returns true if theFeature is a cutout.
	Cast (theBase)

Detailed Description

SheetMetal_Cutout.

Describes a cutout in sheet metal.

Shape() method returns ModelData.Wire for this class.

Cutouts

Constructor & Destructor Documentation

__init__()

manufacturingtoolkit.CadExMTK.SheetMetal_Cutout.__init__	(		self,
		*	args )

Overload 1: Constructor.

|

Overload 2: Constructor.

Reimplemented from manufacturingtoolkit.CadExMTK.MTKBase_ShapeFeature.

Member Function Documentation

Cast()

manufacturingtoolkit.CadExMTK.SheetMetal_Cutout.Cast ( theBase )

static

Reimplemented from manufacturingtoolkit.CadExMTK.MTKBase_ShapeFeature.

CompareType()

manufacturingtoolkit.CadExMTK.SheetMetal_Cutout.CompareType ( theFeature )

static

Returns true if theFeature is a cutout.

Reimplemented from manufacturingtoolkit.CadExMTK.MTKBase_ShapeFeature.

Perimeter()

manufacturingtoolkit.CadExMTK.SheetMetal_Cutout.Perimeter

(

self

)

Returns the cutout perimeter in mm .

See also

SetPerimeter()

SetPerimeter()

manufacturingtoolkit.CadExMTK.SheetMetal_Cutout.SetPerimeter	(		self,
			thePerimeter )

Sets the cutout perimeter in mm .

The value must be more than zero, otherwise nothing happens.

See also

Perimeter()

---

The documentation for this class was generated from the following file:

• CadExMTK.py
