Manufacturing Toolkit
Public Member Functions | |
| __init__ (self, *args) | |
| Overload 1: Constructor. | |
| Depth (self) | |
| Returns the louver depth in mm . | |
| SetDepth (self, theDepth) | |

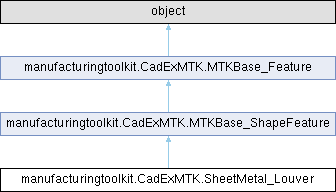

 Public Member Functions inherited from manufacturingtoolkit.CadExMTK.MTKBase_ShapeFeature | |
| Shape (self) | |
| Returns shape of the feature. | |
| SetShape (self, theShape) | |
| Public Member Functions inherited from manufacturingtoolkit.CadExMTK.MTKBase_Feature | |
| Nullify (self) | |
| Resets reference to implementation object. | |
| IsNull (self) | |
| Returns true if the object is nullified. | |
| IsEqual (self, theObject) | |
| IsNotEqual (self, theObject) | |
Static Public Member Functions | |
| CompareType (theFeature) | |
| Returns true if theFeature is a louver. | |
| Cast (theBase) | |
Describes a sheet metal louver feature.
A louver in sheet metal design is typically a formed feature made with a punch press incorporating a top and bottom die. Louvers are used in a variety of industry applications that require airflow; electrical enclosures, HVAC, and food service equipment.
Shape() method returns ModelData.Shell for this class.
Louvers have the following basic parameter: depth in mm.
| manufacturingtoolkit.CadExMTK.SheetMetal_Louver.__init__ | ( | self, | |
| * | args ) |
Overload 1: Constructor.
|
Overload 2: Constructor.
Reimplemented from manufacturingtoolkit.CadExMTK.MTKBase_ShapeFeature.
|
static |
Reimplemented from manufacturingtoolkit.CadExMTK.MTKBase_ShapeFeature.
|
static |
Returns true if theFeature is a louver.
Reimplemented from manufacturingtoolkit.CadExMTK.MTKBase_ShapeFeature.
| manufacturingtoolkit.CadExMTK.SheetMetal_Louver.Depth | ( | self | ) |
Returns the louver depth in mm .
