manufacturingtoolkit.CadExMTK.SheetMetal_Tab Class Reference

SheetMetal_Tab. More...

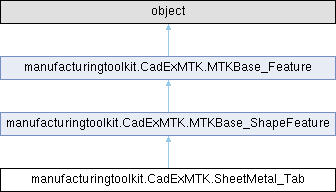

Inheritance diagram for manufacturingtoolkit.CadExMTK.SheetMetal_Tab:

Public Member Functions
	__init__ (self, *args)
	Overload 1: Constructor.
	Width (self)
	Returns the tab width in mm .
	SetWidth (self, theWidth)
	Sets tab width in mm .
	Length (self)
	Returns the tab length in mm .
	SetLength (self, theLength)
	Sets tab length in mm .
Public Member Functions inherited from manufacturingtoolkit.CadExMTK.MTKBase_ShapeFeature
	Shape (self)
	Returns shape of the feature.
	SetShape (self, theShape)
Public Member Functions inherited from manufacturingtoolkit.CadExMTK.MTKBase_Feature
	Nullify (self)
	Resets reference to implementation object.
	IsNull (self)
	Returns true if the object is nullified.
	IsEqual (self, theObject)
	IsNotEqual (self, theObject)

Static Public Member Functions
	CompareType (theFeature)
	Returns true if theFeature is a tab.
	Cast (theBase)

Detailed Description

SheetMetal_Tab.

• Describes a sheet metal tab.

  Tab is the rectangular ledge for the face. They are often used for fitting together several pieces to create the precise mate during assembly.

  Shape() method returns ModelData.Wire for this class.

Tab

Tabs have the following basic parameters: width in mm and length in mm.

Tab parameters

Constructor & Destructor Documentation

__init__()

manufacturingtoolkit.CadExMTK.SheetMetal_Tab.__init__	(		self,
		*	args )

Overload 1: Constructor.

|

Overload 2: Constructor. Creates tab with specified width and depth.

Reimplemented from manufacturingtoolkit.CadExMTK.MTKBase_ShapeFeature.

Member Function Documentation

Cast()

manufacturingtoolkit.CadExMTK.SheetMetal_Tab.Cast ( theBase )

static

Reimplemented from manufacturingtoolkit.CadExMTK.MTKBase_ShapeFeature.

CompareType()

manufacturingtoolkit.CadExMTK.SheetMetal_Tab.CompareType ( theFeature )

static

Returns true if theFeature is a tab.

Reimplemented from manufacturingtoolkit.CadExMTK.MTKBase_ShapeFeature.

Length()

manufacturingtoolkit.CadExMTK.SheetMetal_Tab.Length

(

self

)

Returns the tab length in mm .

See also

SetLength()

SetLength()

manufacturingtoolkit.CadExMTK.SheetMetal_Tab.SetLength	(		self,
			theLength )

Sets tab length in mm .

The value must be more than zero, otherwise nothing happens.

See also

Length()

SetWidth()

manufacturingtoolkit.CadExMTK.SheetMetal_Tab.SetWidth	(		self,
			theWidth )

Sets tab width in mm .

The value must be more than zero, otherwise nothing happens.

See also

Width()

Width()

manufacturingtoolkit.CadExMTK.SheetMetal_Tab.Width

(

self

)

Returns the tab width in mm .

See also

SetWidth()

---

The documentation for this class was generated from the following file:

• CadExMTK.py
