Describes recessed or hidden areas inaccessible to standard end mills. More...

Inheritance diagram for cadex::DFMMachining_UndercutIssue:

Public Member Functions
	DFMMachining_UndercutIssue ()
	Constructor.

	DFMMachining_UndercutIssue (const MTKBase_ShapeFeature &theRelatedFeature)
	Constructor.

const MTKBase_ShapeFeature &	RelatedFeature () const

void	SetRelatedFeature (const MTKBase_ShapeFeature &theRelatedFeature)

const ModelData::Shape &	Shape () const

void	SetShape (const ModelData::Shape &theShape)

Public Member Functions inherited from cadex::MTKBase_Feature
	MTKBase_Feature ()
	Constructor.

	~MTKBase_Feature ()
	Destructor.

void	Nullify ()

bool	IsNull () const

	operator bool () const
	Casts the object to the bool type.

template<typename T >
bool	IsOfType () const

ImplType *	Impl () const

template<typename T >
T *	Impl () const
	Reserved for internal use.

bool	operator== (const MTKBase_Feature &theObject) const

bool	operator!= (const MTKBase_Feature &theObject) const

Static Public Member Functions
static bool	CompareType (const MTKBase_Feature &theFeature)
	Returns true if theFeature is a DFM undercut issue.

Static Public Member Functions inherited from cadex::DFMMachining_MillingIssue
static bool	CompareType (const MTKBase_Feature &theFeature)
	Returns true if theIssue is a DFM machining milling issue.

Static Public Member Functions inherited from cadex::DFMBase_Issue
static bool	CompareType (const MTKBase_Feature &theFeature)
	Returnstrue if theFeature is a DFM issue.

Additional Inherited Members
Public Types inherited from cadex::DFMMachining_MillingIssue
typedef cadex::internal::DFMMachiningImpl_MillingIssue	ImplType

typedef std::shared_ptr< ImplType >	ImplPtrType

Public Types inherited from cadex::DFMBase_Issue
typedef cadex::internal::DFMBaseImpl_Issue	ImplType

typedef std::shared_ptr< ImplType >	ImplPtrType

Public Types inherited from cadex::MTKBase_Feature
typedef cadex::internal::MTKBaseImpl_Feature	ImplType

typedef std::shared_ptr< ImplType >	ImplPtrType

Protected Member Functions inherited from cadex::DFMMachining_MillingIssue
	DFMMachining_MillingIssue (ImplPtrType theImpl)
	Reserved for internal use.

Protected Member Functions inherited from cadex::DFMBase_Issue
	DFMBase_Issue (ImplPtrType theImpl)
	Reserved for internal use.

Protected Member Functions inherited from cadex::MTKBase_Feature
	MTKBase_Feature (ImplPtrType theImpl)
	Reserved for internal use.

Protected Attributes inherited from cadex::MTKBase_Feature
ImplPtrType	myImpl

Detailed Description

Describes recessed or hidden areas inaccessible to standard end mills.

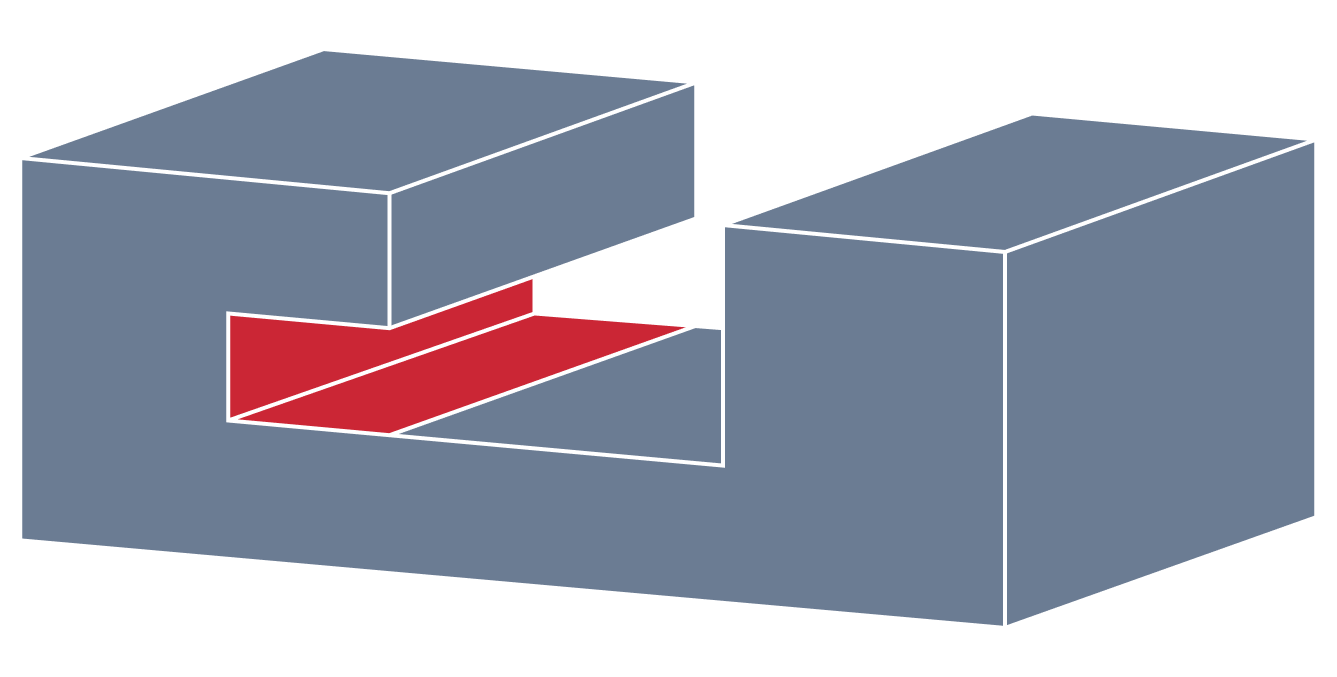

Undercut issue refers to the case when overhangs create hidden areas that a standard end mill cannot reach because of the limited tool access. These areas can be machined only with specialized tools such as T-slot or lollipop cutters, leading to extra setups, longer cycle times, and higher cost.
